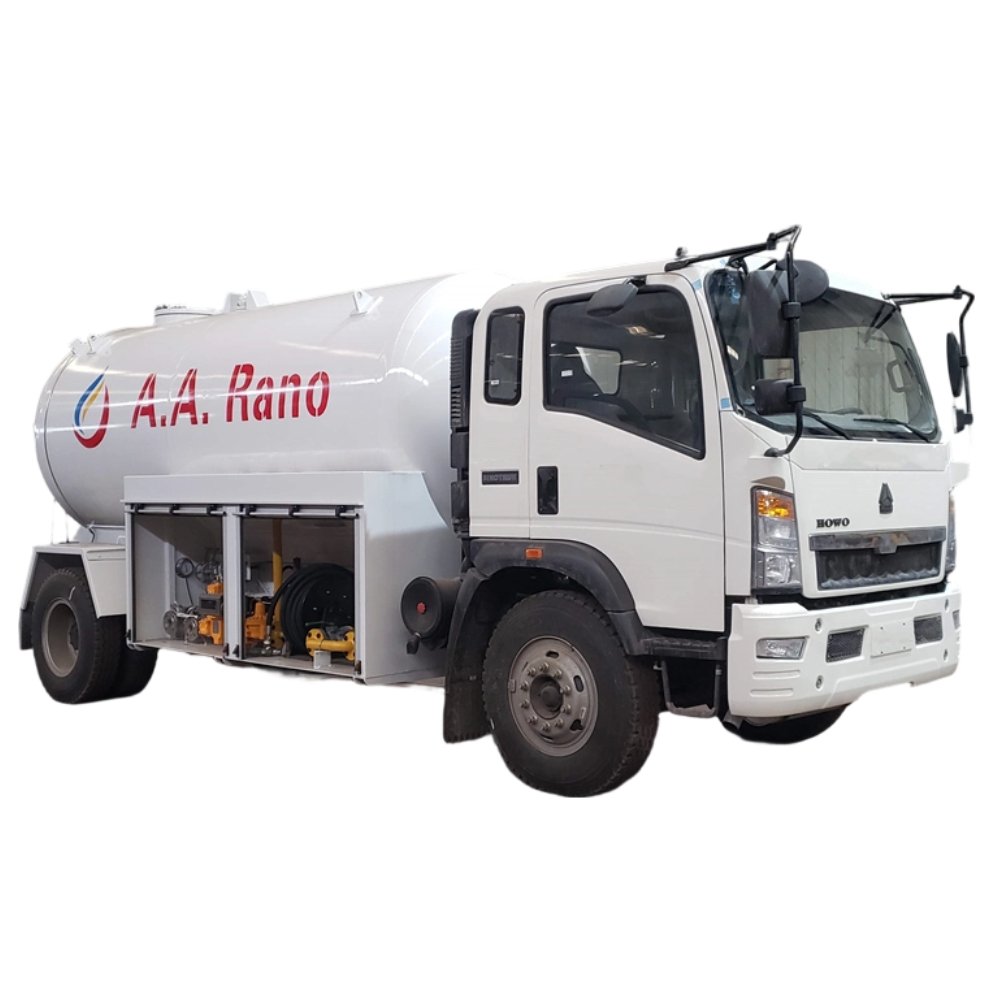

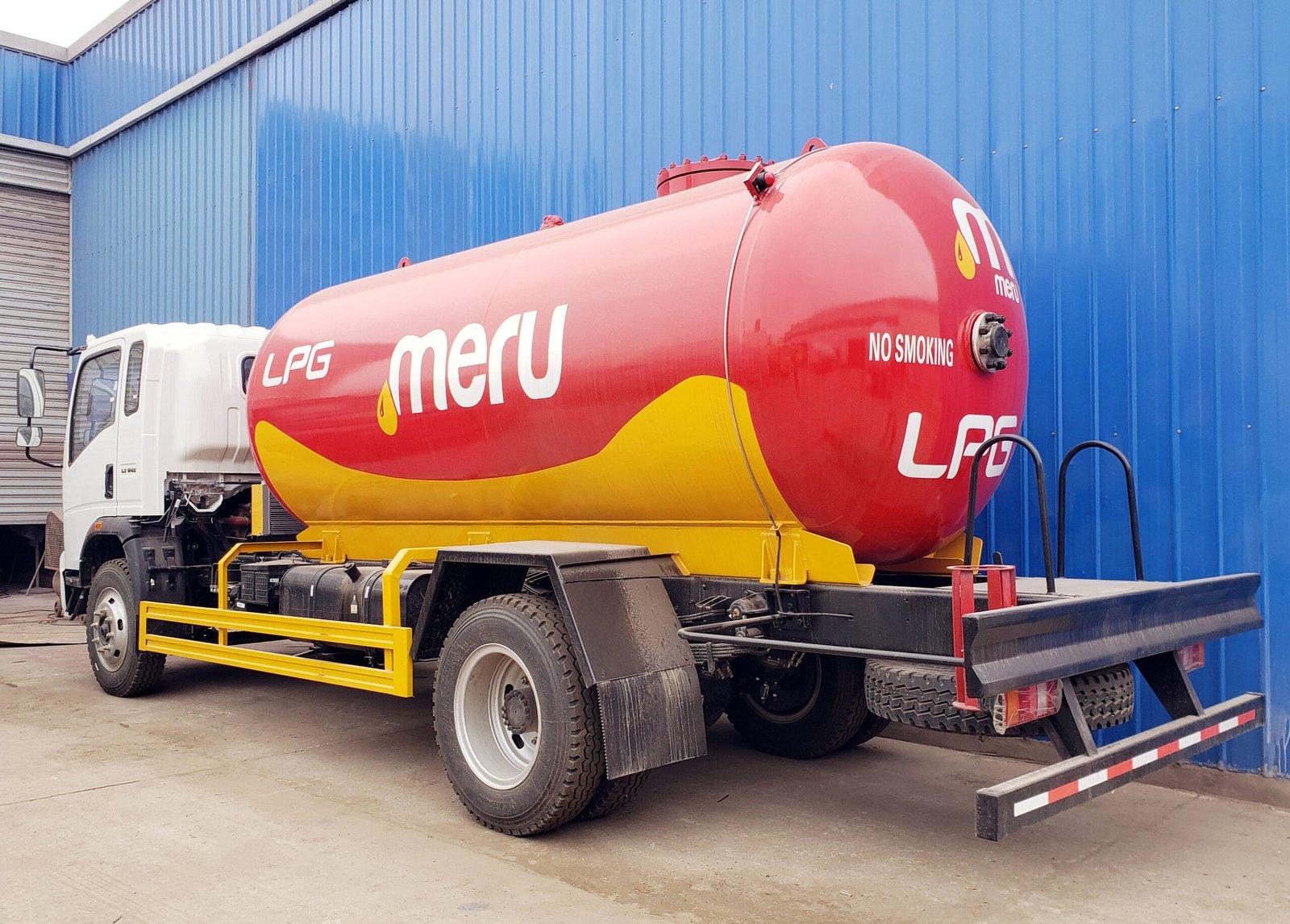

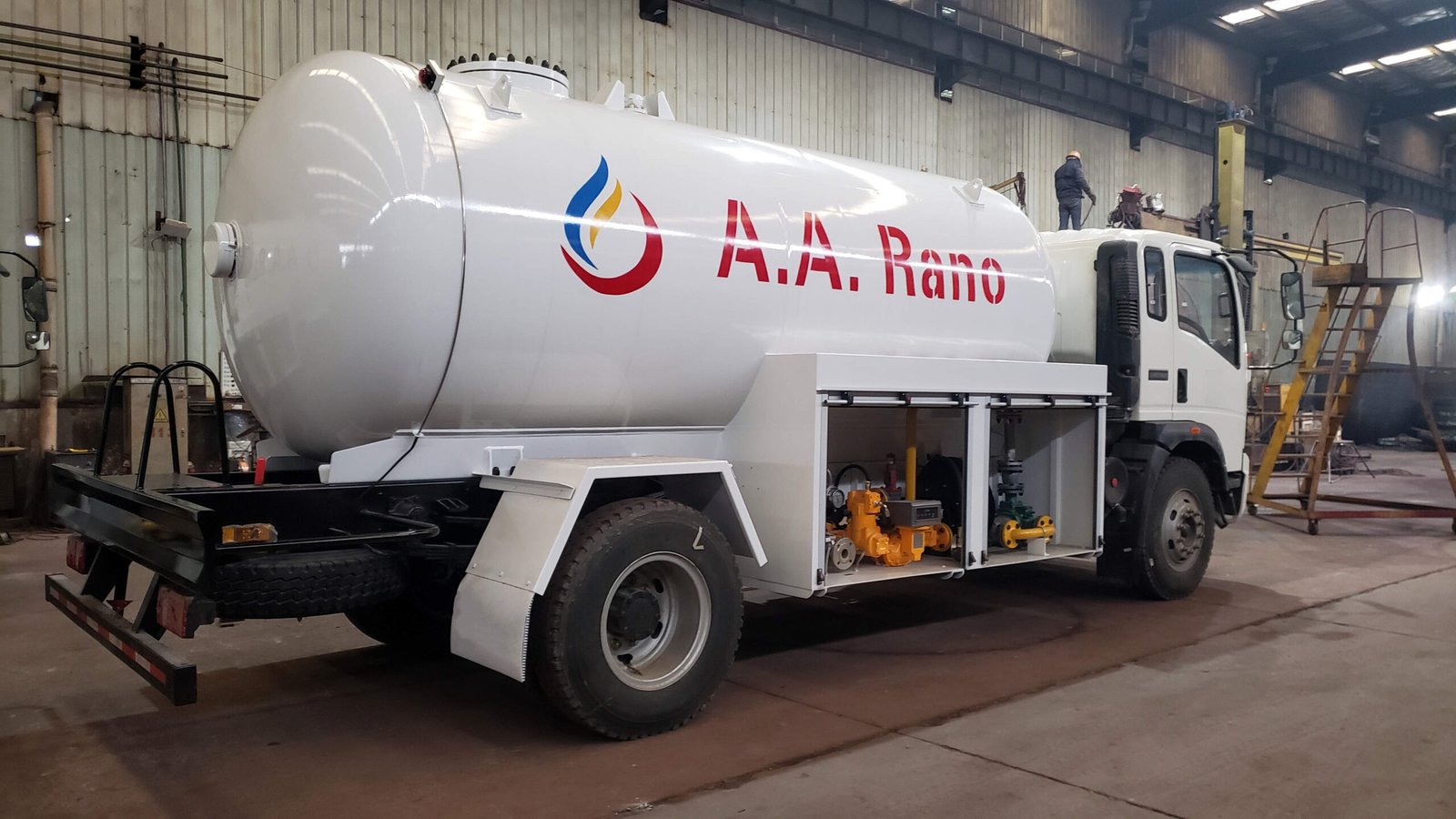

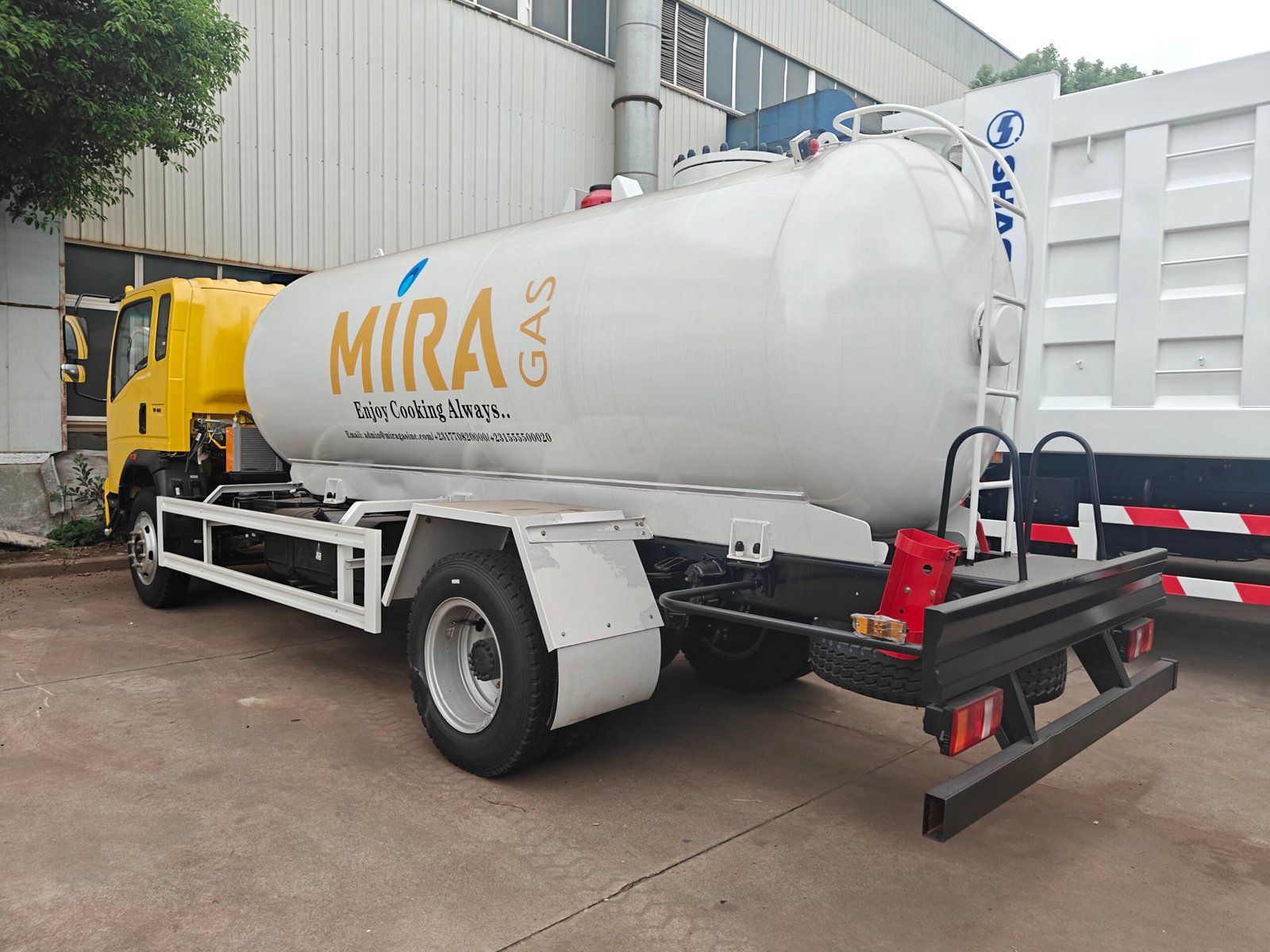

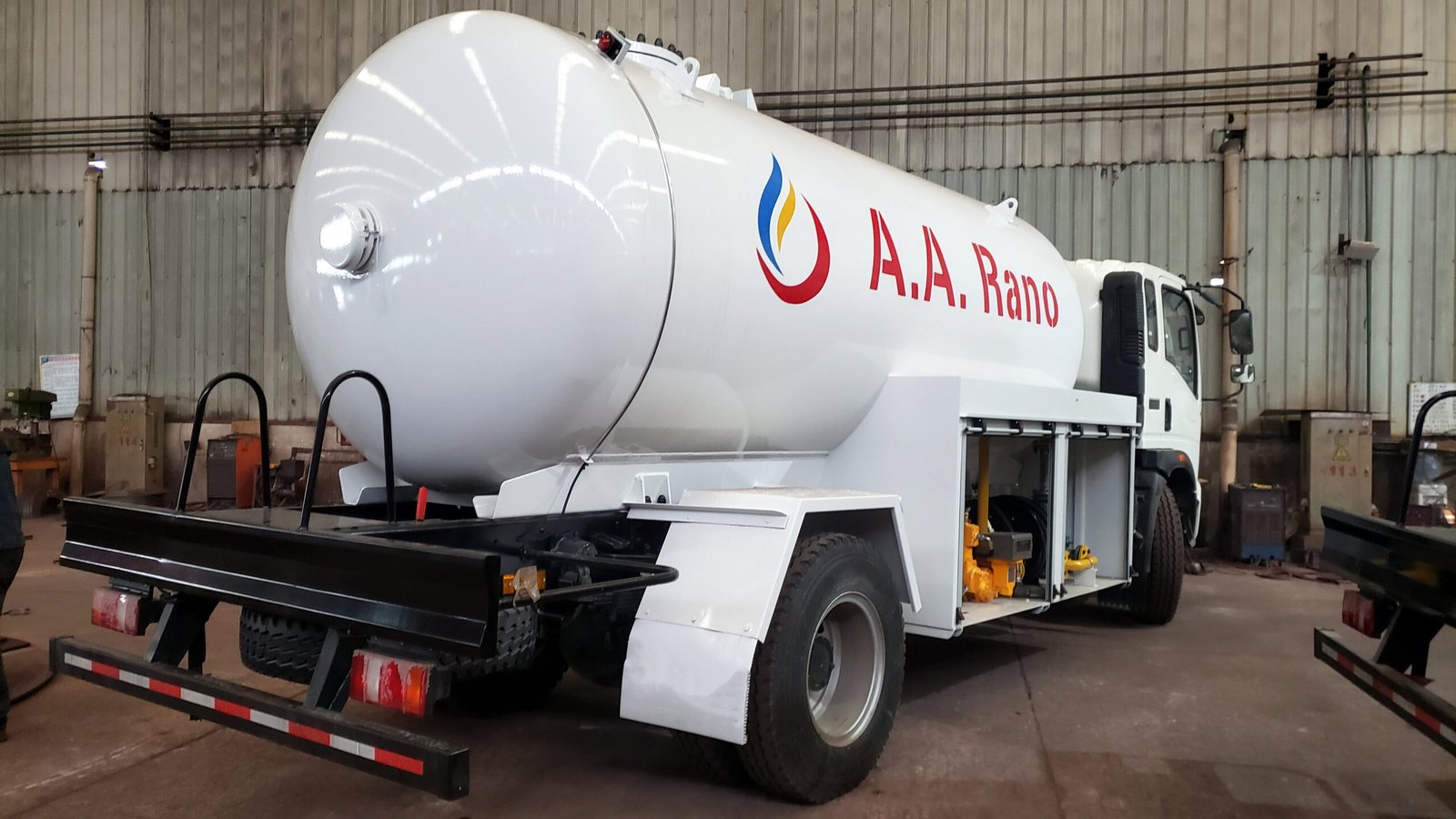

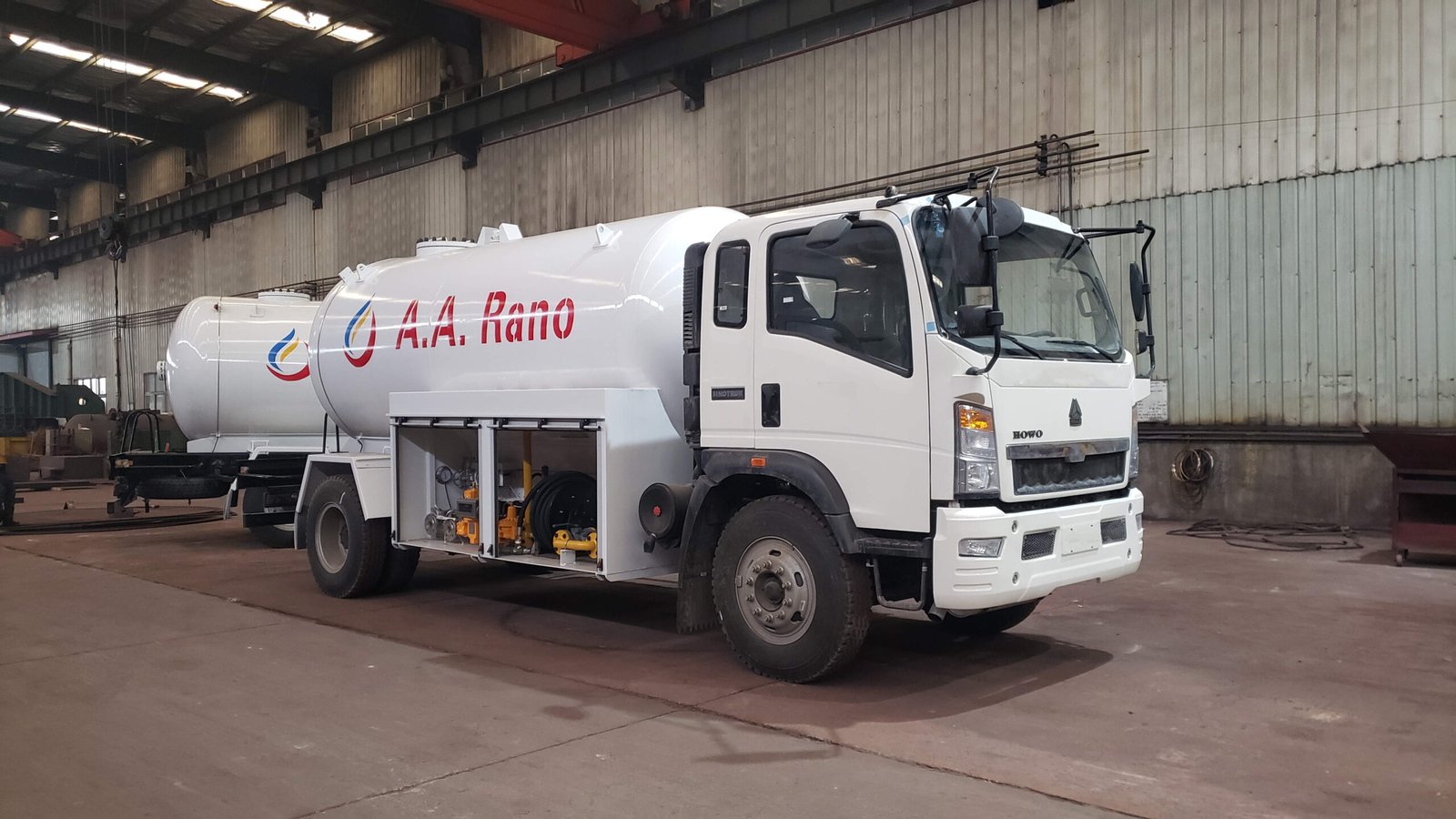

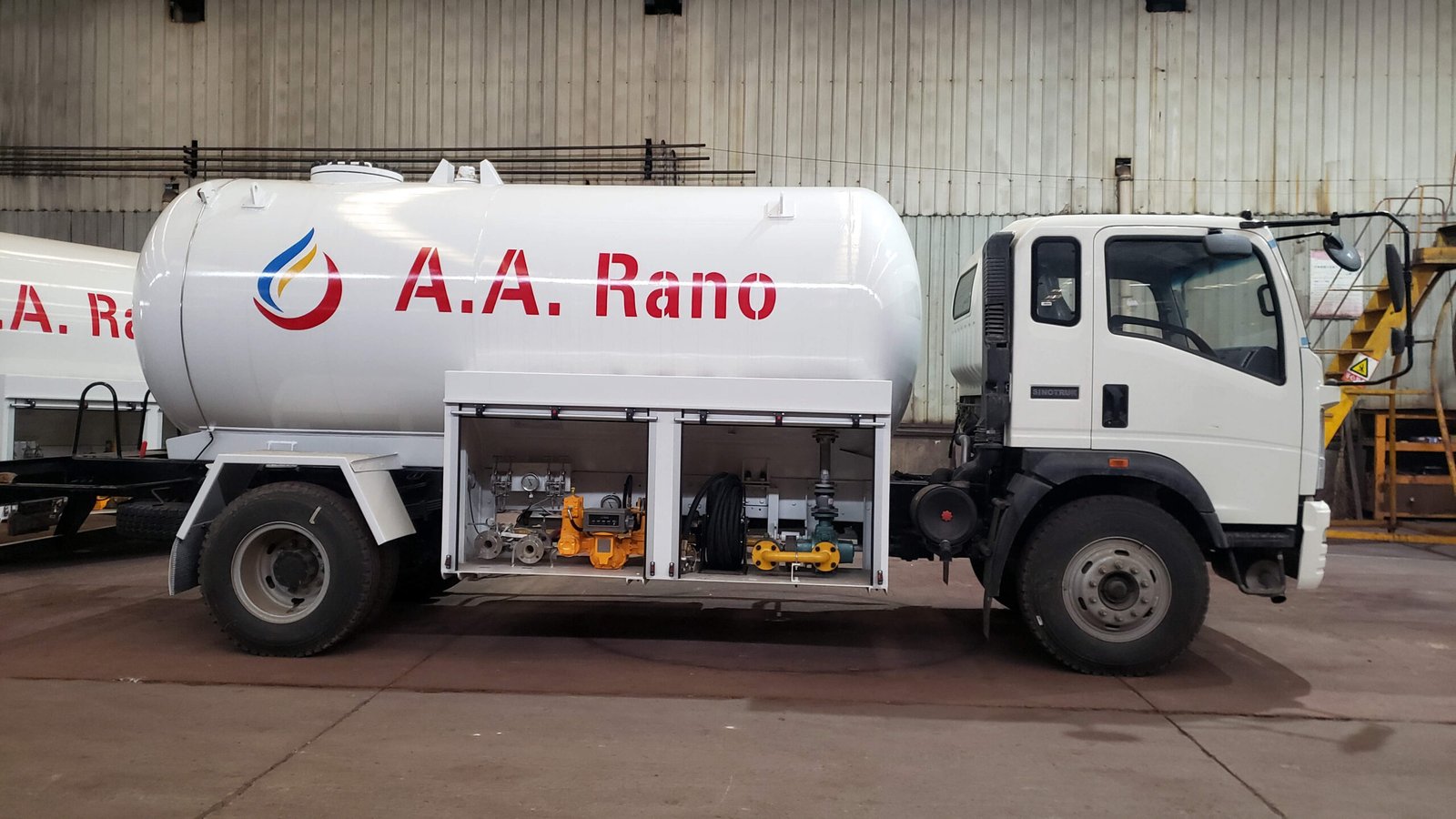

5000L LPG Bobtail Truck HOWO Liquified Petroleum Gas Tanker Bobtail in Nigeria

In stock

lpg bobtail truck (also called lpg bobtail,lpg gaz truck,lpg refueler truck, lpg bobtails,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.

With different design,you can choose volume flow meter or lpg dispenser for your truck. LPG truck is widely used for refilling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.

  • 1 years warranty

  • Custom orders accepted

  • OEM origin factory

Category:

Description

Item No. Parameters
Overall Dimension 5900x2400x2650mm
Driving Model Left hand drive or right hand drive
Gross Vehicle Weight 8160 kg
Curb Weight 5850kg
Payload 2310 kg
Wheel Base 3360 mm
Front Axle 2400kg
Rear Axle 4200kg
Engine YN4102QBZL,Diesel engine
Engine horsepower 116HP EUROIII
Displacement 3760mL (Diesel)
Rated Rotation Speed 3000 rpm
Gearbox WLY6T46,6-speed forward and 1 reverse
Cabin Howo L2W 2080 spacious cabin,2~3 Passenger allowed,with A/C
Tire 7.50R16 (6 pcs with one spare)
Exhaust Pipe At front of Cabin for safety

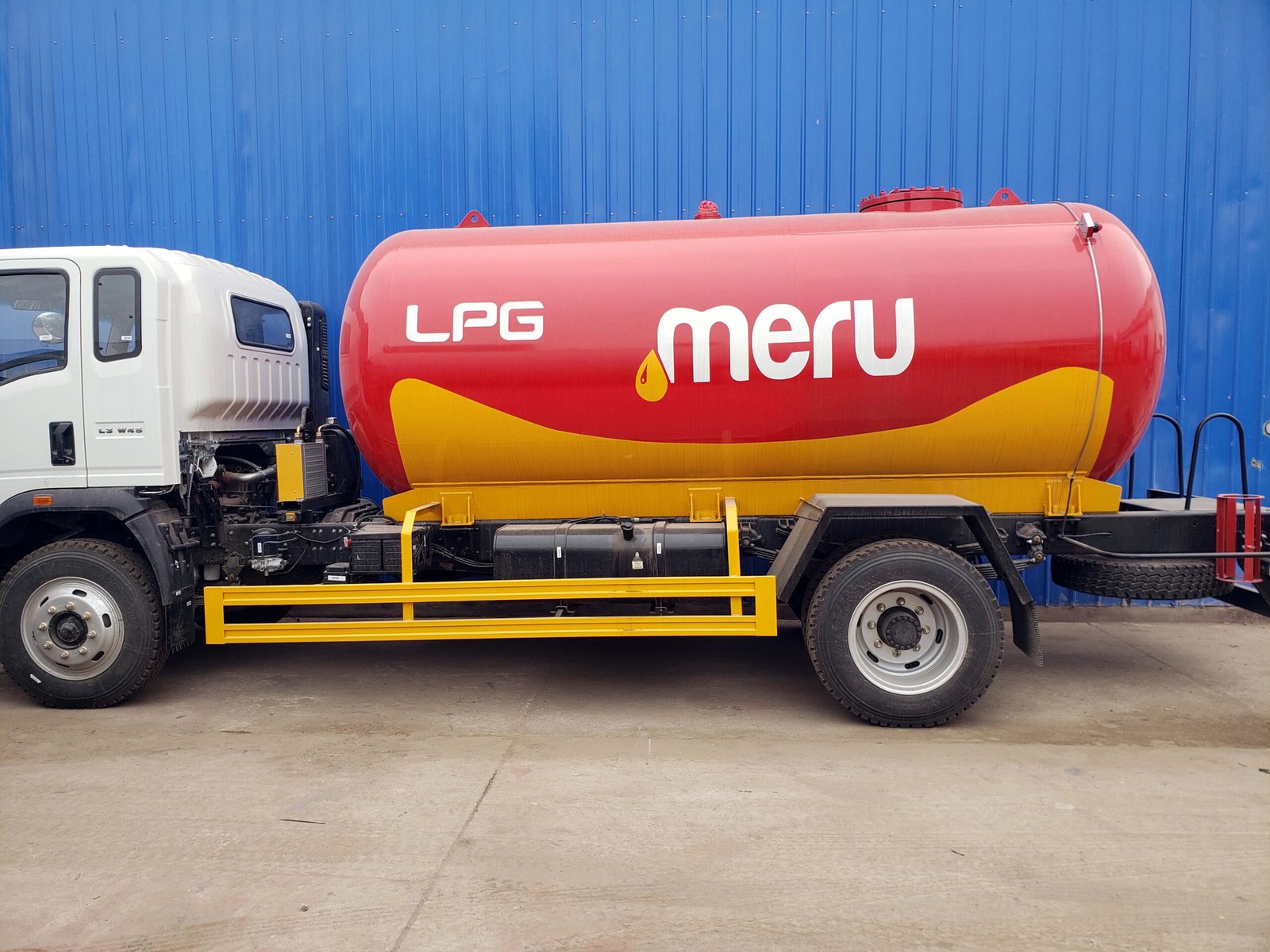

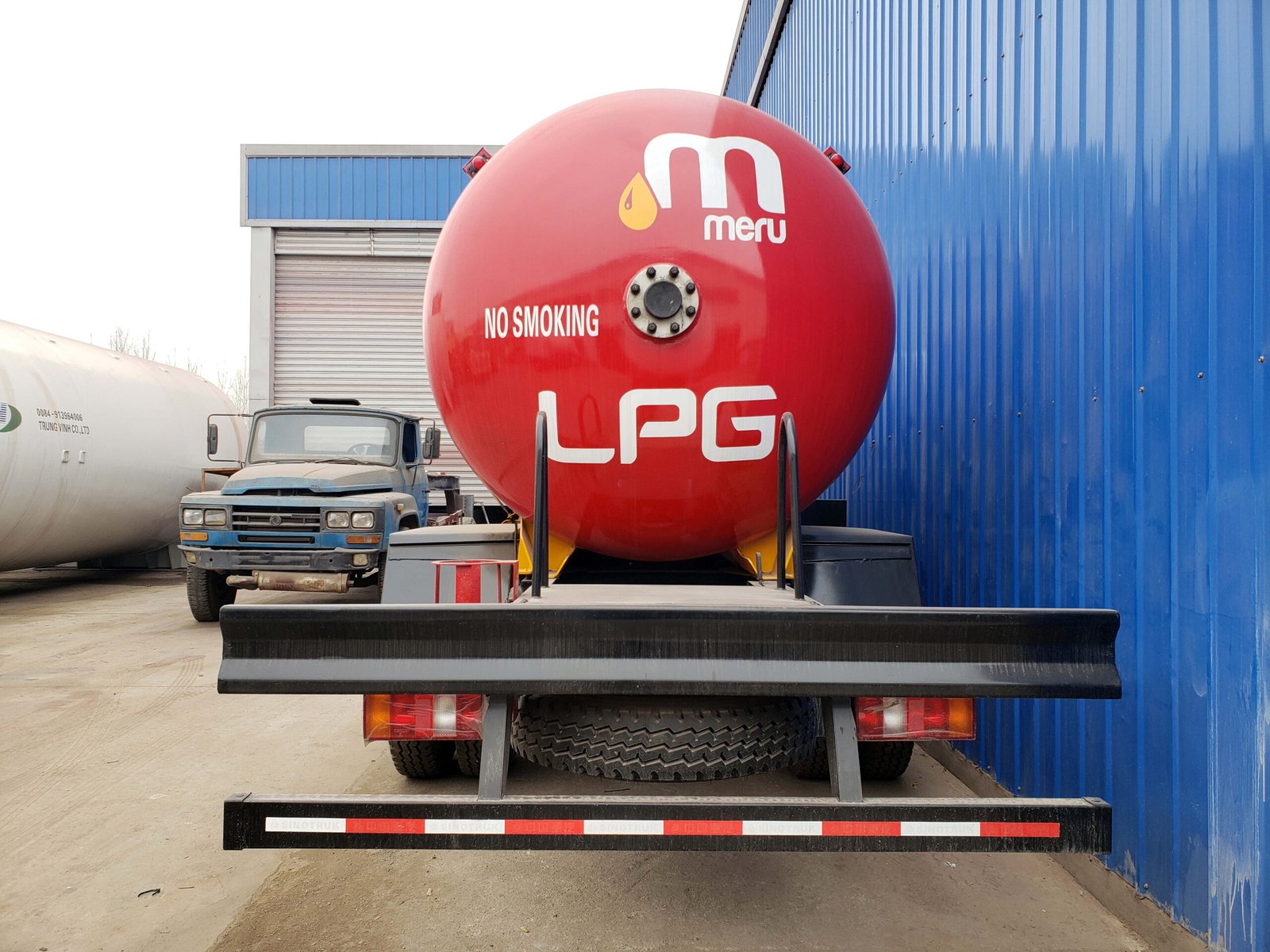

LPG tank
Volume: 5000iters
Tank material: Q345R
Tank diameter: 1600mm
Tank thickness: 10mm
End plate thickness: 10mm
Tank length: 3070mm or as designed
Gas phase Flange type,DN50/2″ or according to customer request
Liquid Phase Flange type,DN50/2″ and DNDN80/3″ or according to customer request
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa
Testing pressure 2.21Mpa

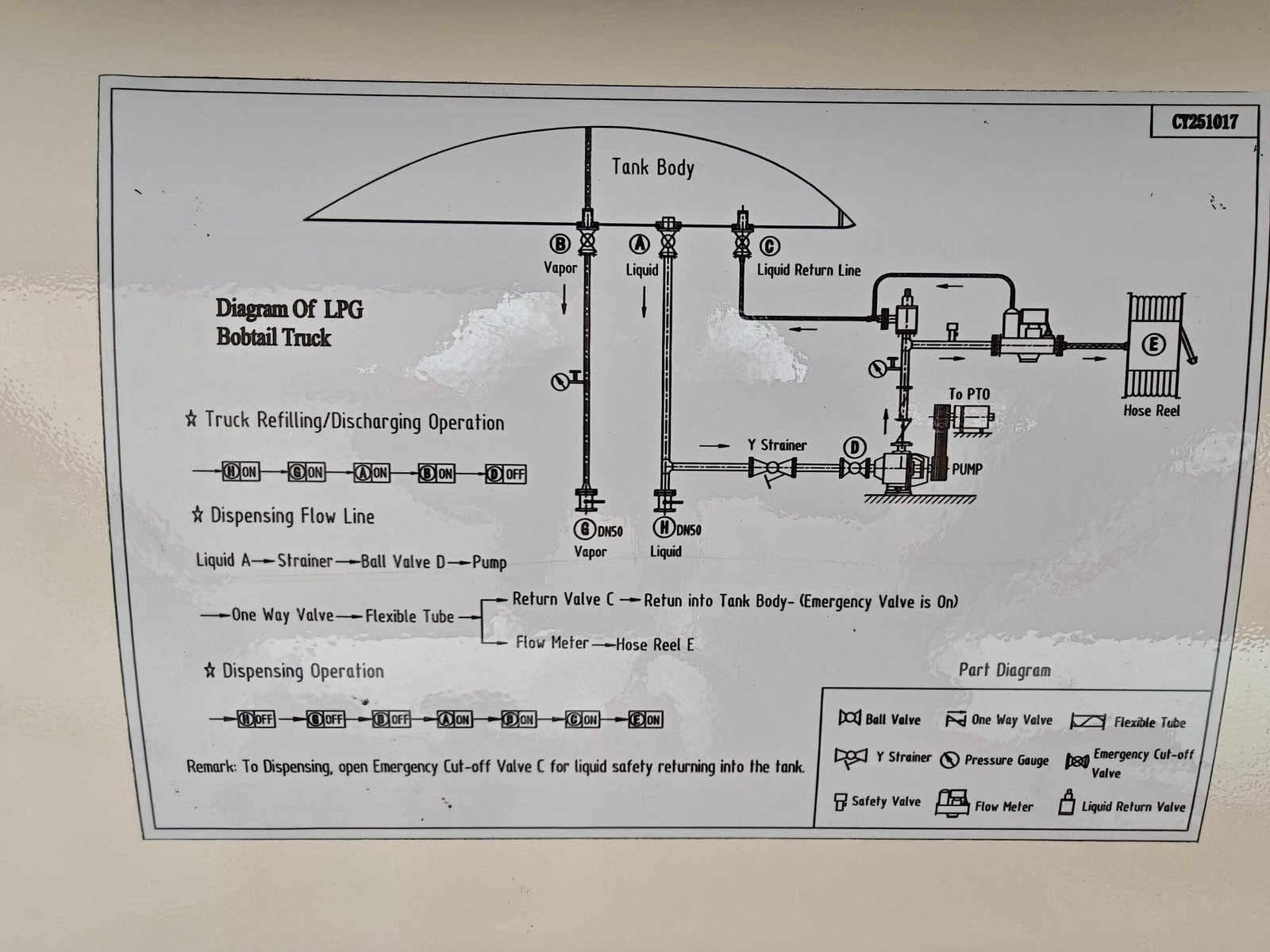

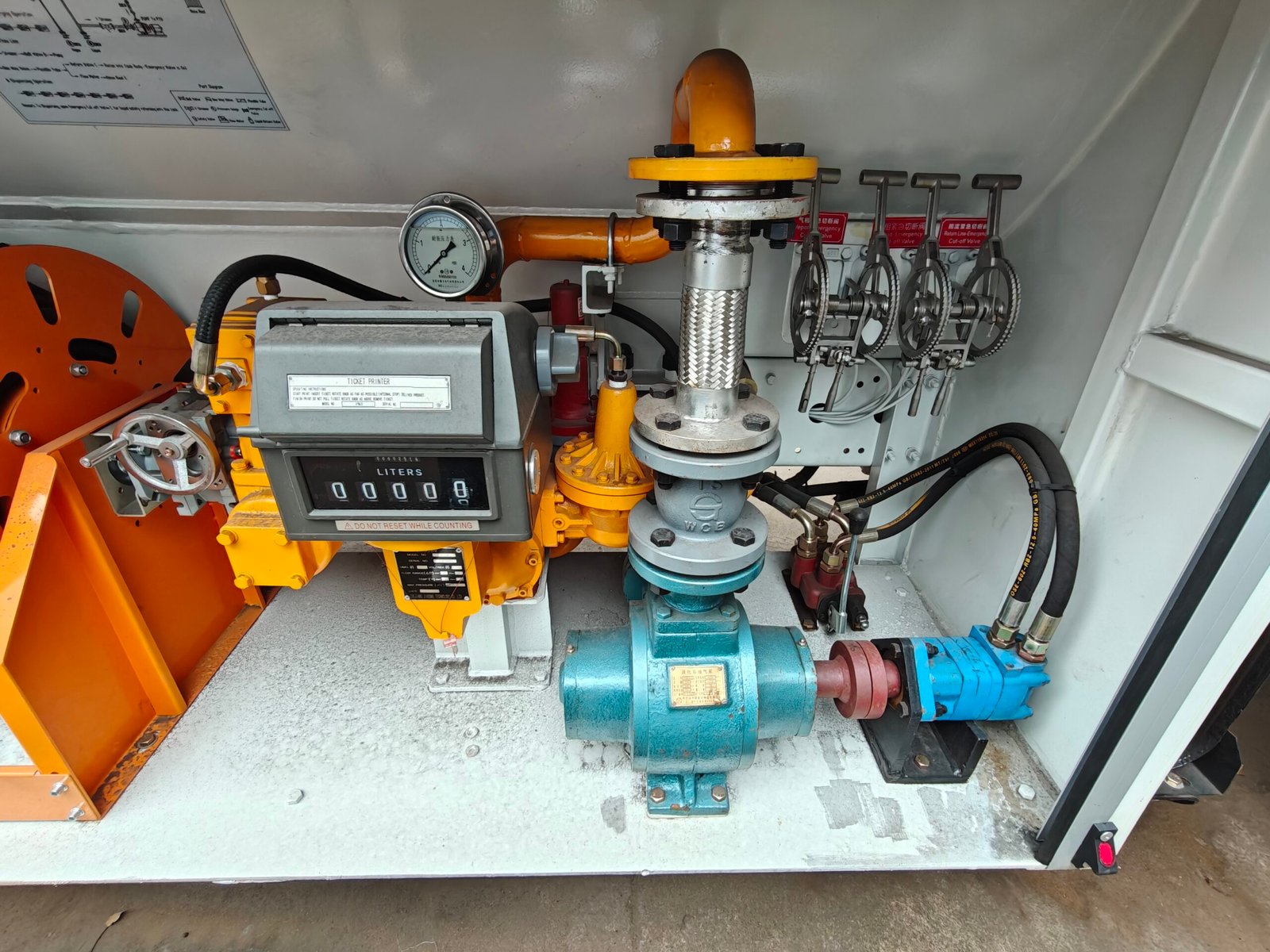

Refilling Accessory
LPG Pump Chinese brand YQ15-5
Flow rate:15.5M3/H
10 Mpa inlet pressure
780 r/min for rotation speed
Radiator 1 pc(to avoid high temperature of hydraulic oil during operation)
Hydraulic motor 1 pc

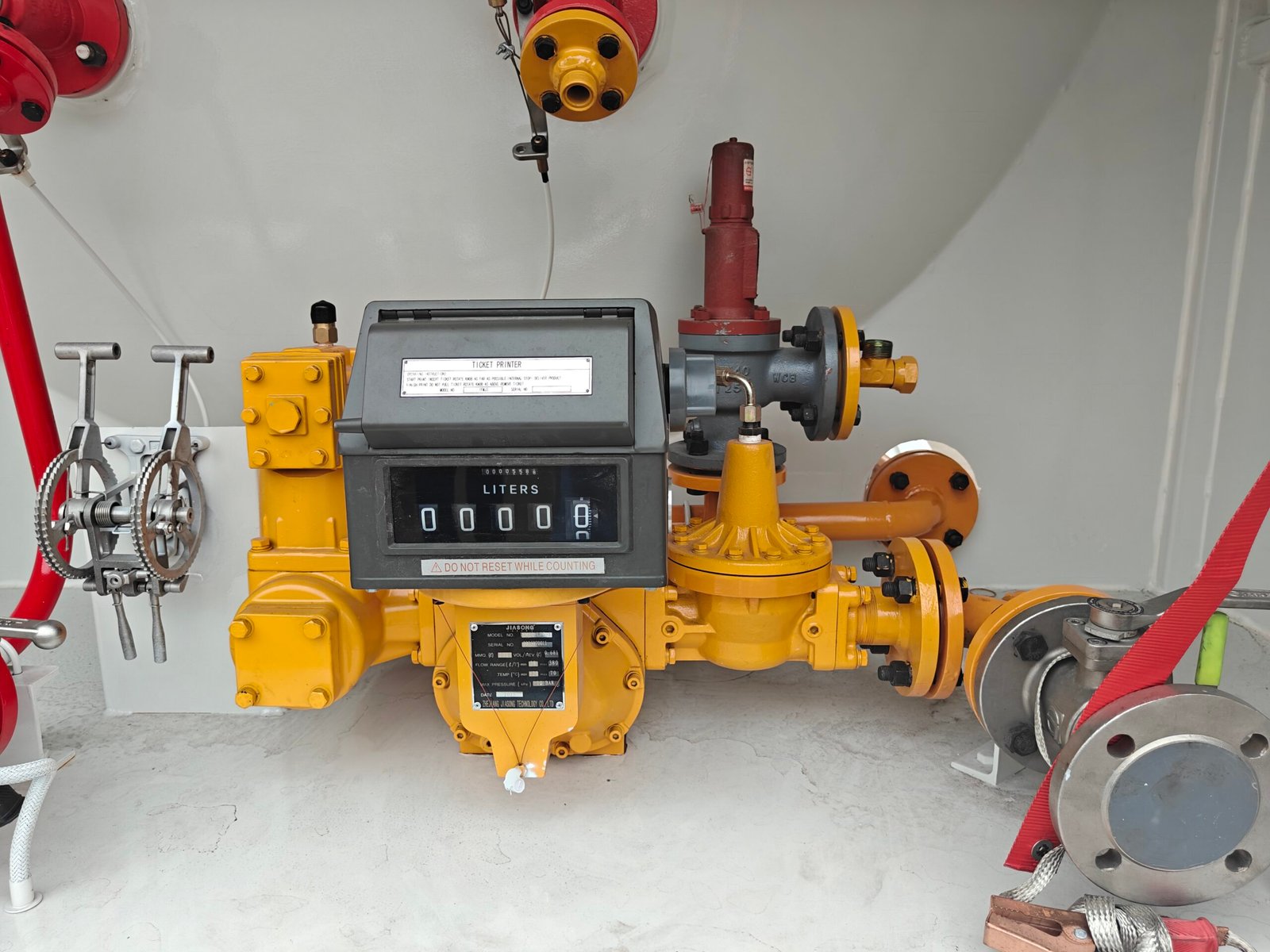

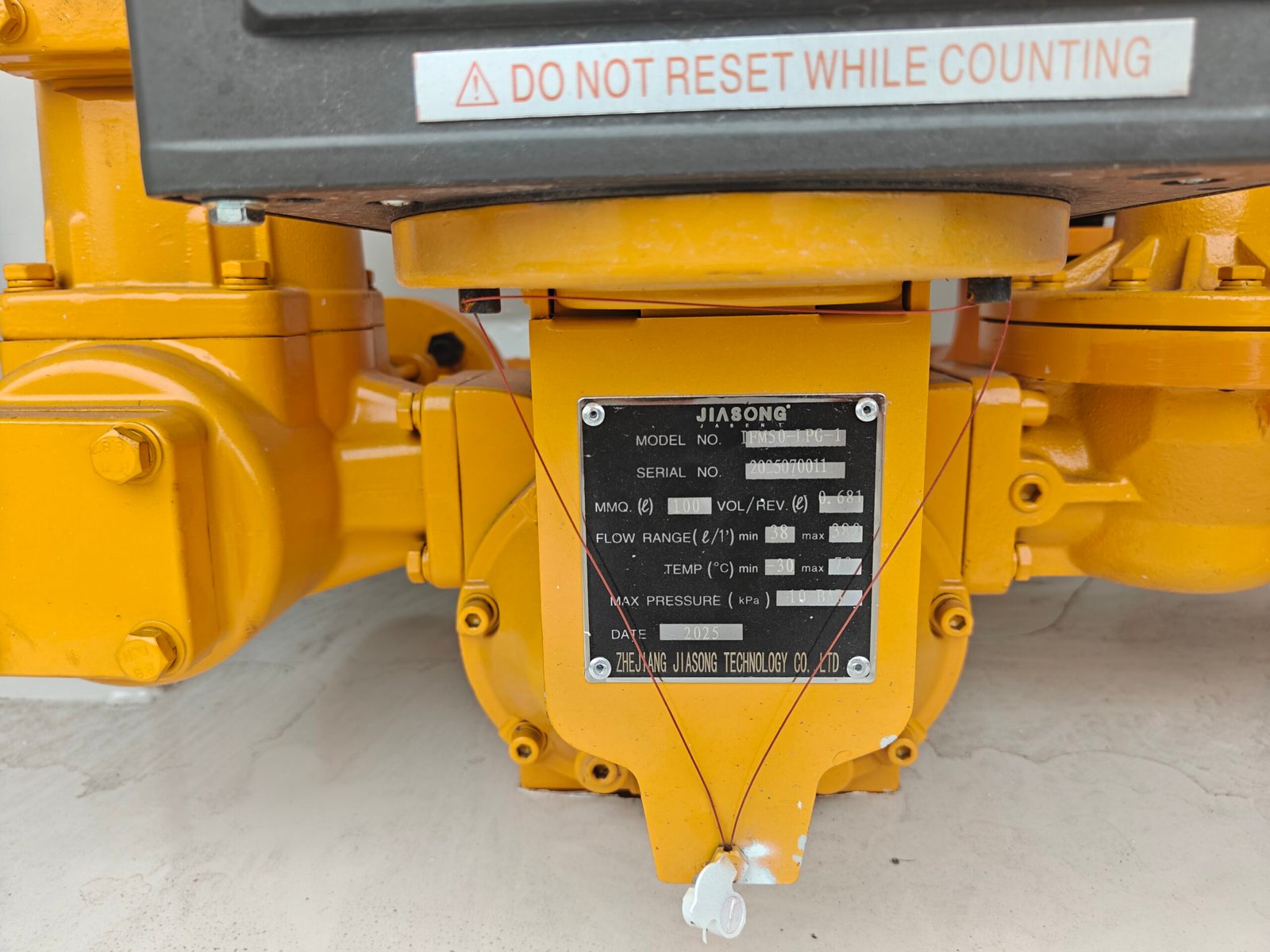

LPG Dispenser English remarks with printer for receipt

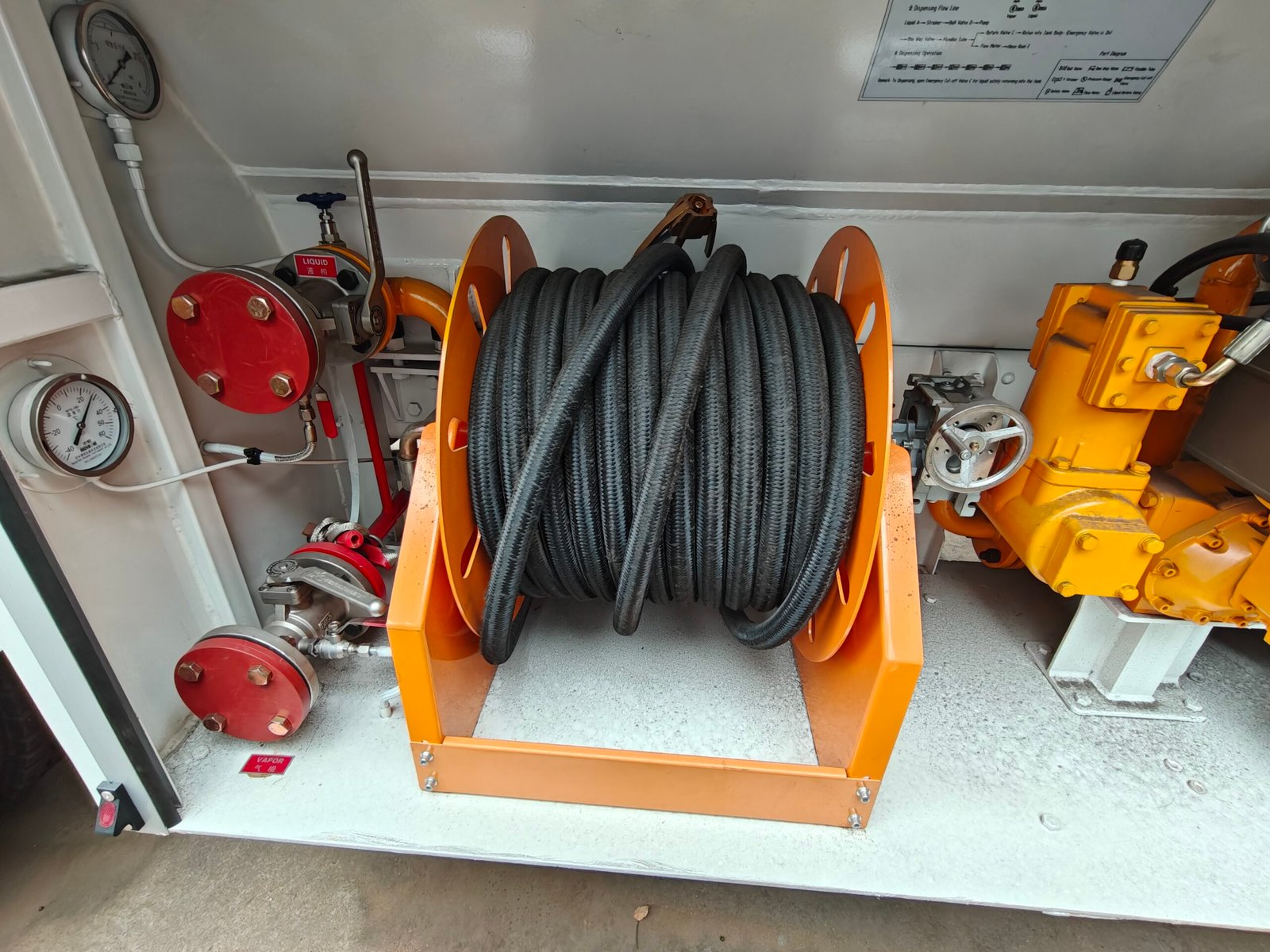

Filling hose 15M,retractable
Filling nozzle Filling nozzle for cylinder
Level Gauge Chinese Float Ball type,at the rear of tank
Safety Valve 1,DN80

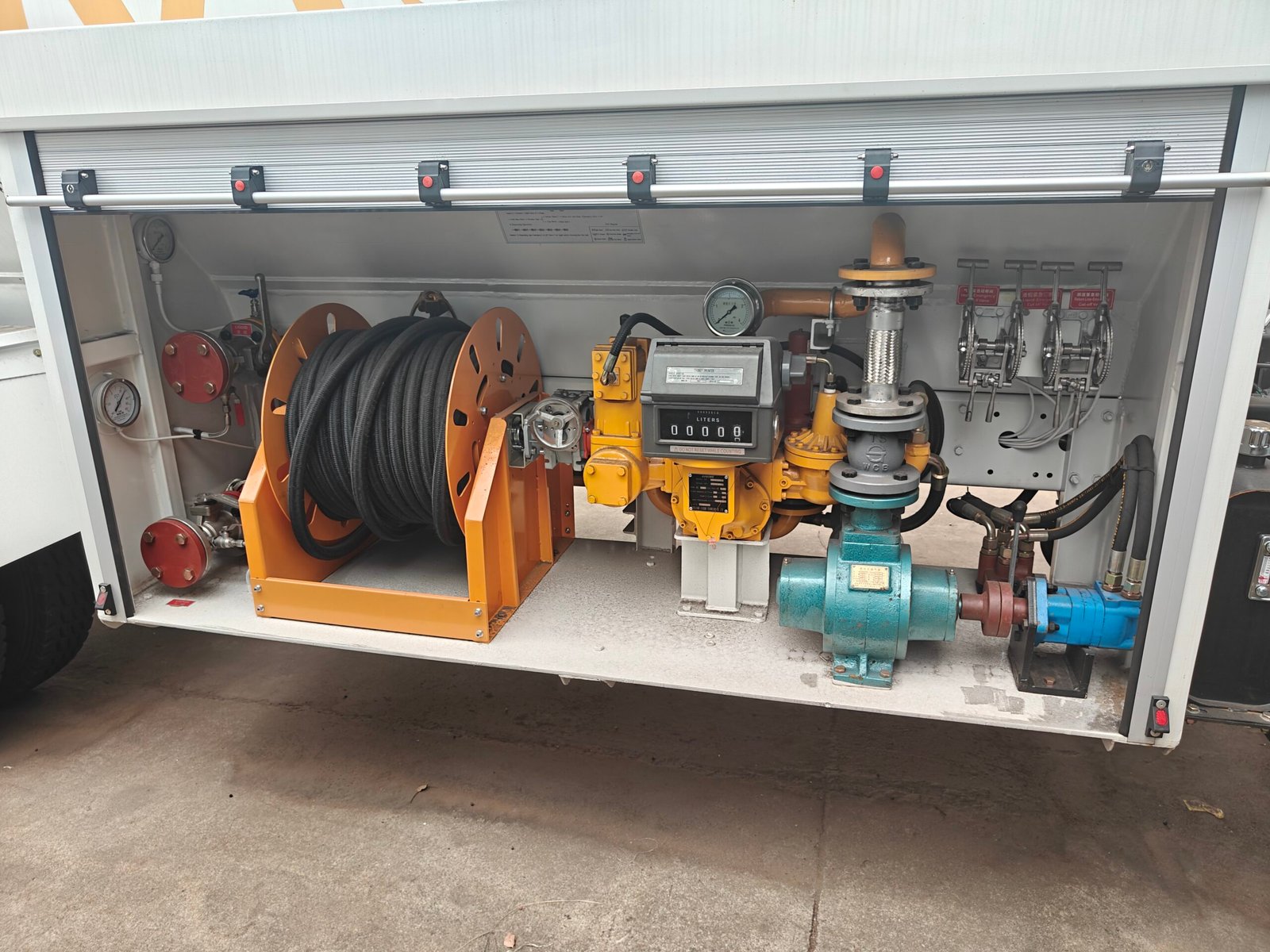

Tool and Valve Box Located at side of LPG bobtail
Thermometer 1 pc
Pressure Gauge 2 pc
Emergency shut off Valve 3 pcs with witch inside valve box and at rear of truck
Fender Steel
Fire Extinguisher Holder 2 sets
Anti Static line 1 set
