Description
|
BASIC INFORMATION
|
|
|
Product Model
|

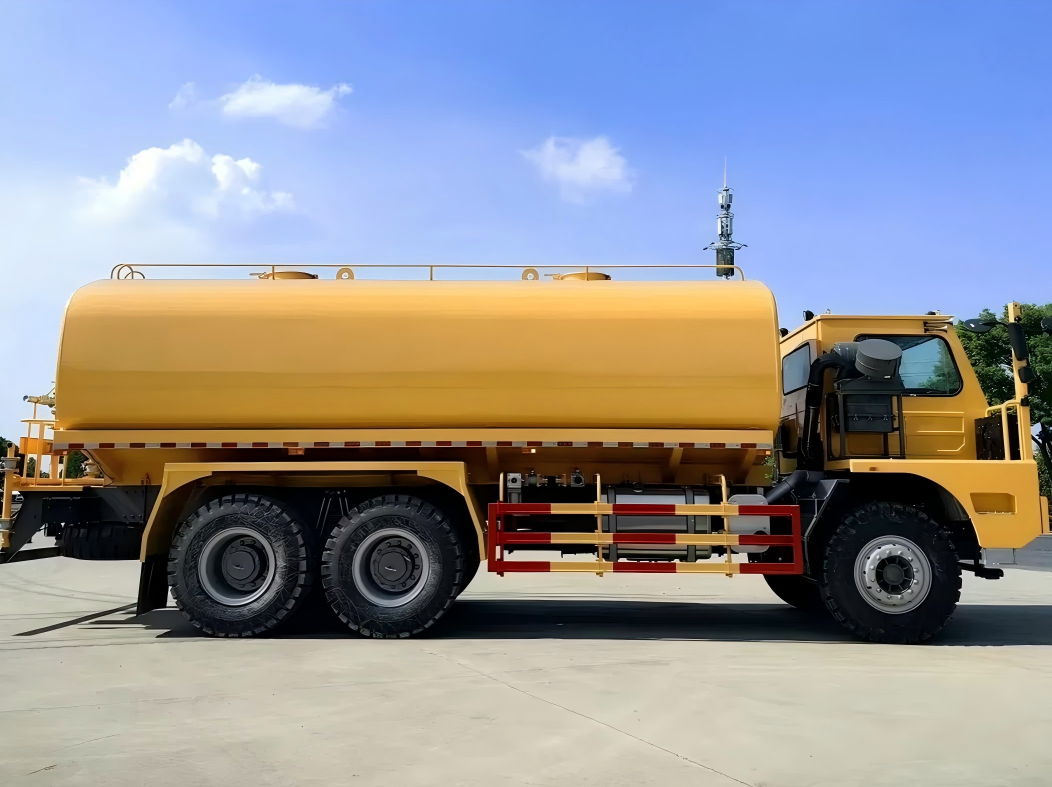

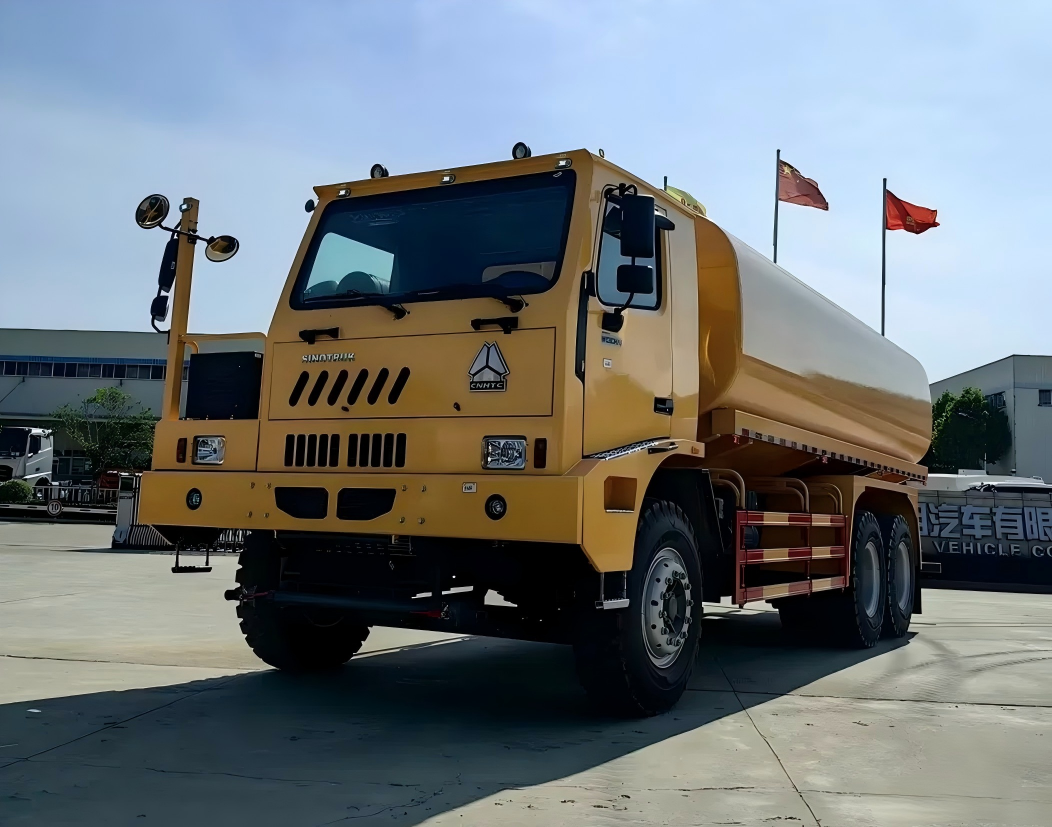

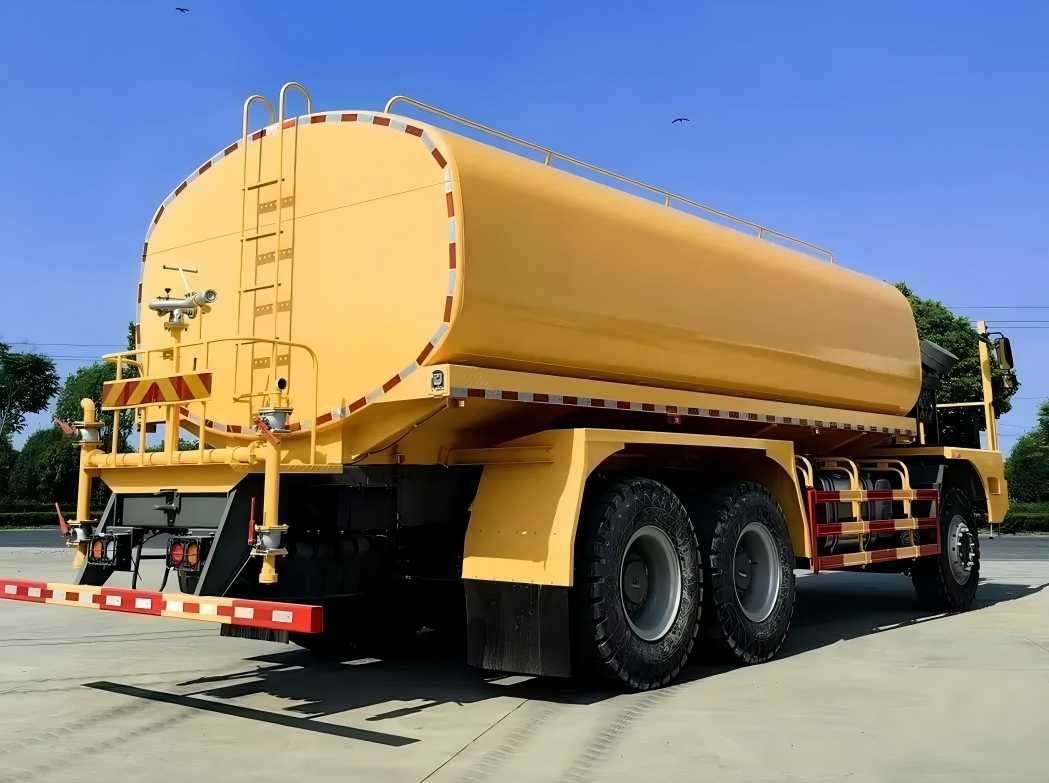

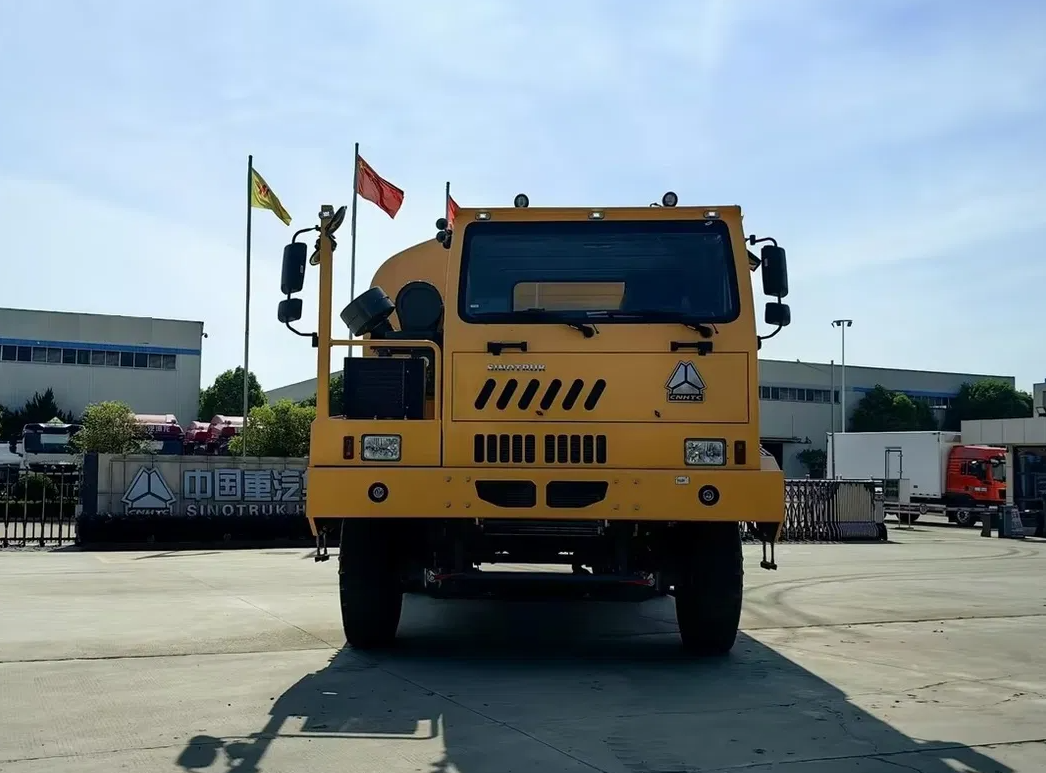

50 Tons Mine Field Water Truck
|
|
Overall Dimension
|
9075 × 3450 × 4300 mm
|
|
Curb Weight
|
31000 kg
|
|
Payload
|
59000 kg
|
|
Maximum Speed
|
45 km/h
|
|
Water Tank Volume
|
50 cbm ( 50 000L)
|
|
CHASSIS
|
|
|
Chassis Model
|
DW90A
|
|
Cab
|
Mine Field Standard
|
|
ABS
|
Mine Field Standard
|
|
Wheelbase
|
3950 + 1350 mm
|
|
Engine Model
|
YC6K.480
|
|
Horsepower
|
480 hp
|
|
Power
|
353 kW
|
|
Transmission
|
8DS240 8 Gears
|
|
Max. Torque
|
2200 Nm
|
|
Max. Rotational Speed
|
1100~1500 rpm
|
|
Tire Configuration
|
14.00R25
|
|
Tire Numbers
|
10
|
|
SUPERSTRUCTURE
|
|
|
Tank Capacity
|
50000 L
|
|
Tank Material
|
Q355 High-Strength Steel
|
|
Tank Thickness
|
8 mm
|
|
Partition Thickness
|
8 mm (Fully Weld)
|
|
Head thickness
|
8 mm
|
|
Secondary Beam Thickness
|
8mm (Q358B)
|
|
Number of Tank Openings
|
2
|
|
Outlet
|
Right-Hand Side 2.5-inch
|
|
Pipe
|
2.5-inch
|
|
Water Inlet and Outlet Configuration
|
Self-Priming and Self-Draining
|
|
Firefighting Interface
|
Yes
|
|
Gravity Outlet
|
One 5-inch Gravity Outlet at the Bottom of the Tank Tail Facing Downward
|
|
Front Counter-Jet
|
Yes
|
|
Electronic Valve
|
Optional
|
|
Electronic Cannon
|
Optional
|
|
Rear Spray
|
Optional
|
|
Duckbill
|
Optional
|
|
Side spray, Rear Left/Right with Sprinklers
|
Optional
|
|
Valve Material
|
Aluminum Alloy
|
|
Water Cannon
|
Iron Water Cannon
|
|
Pump Model
|
BX-80QZB60/90S
|
