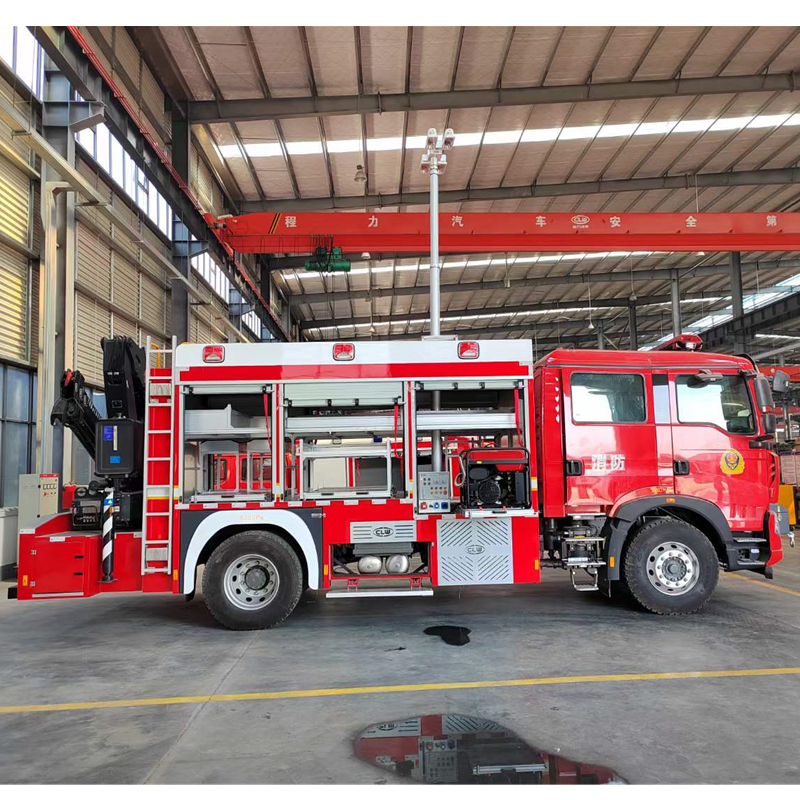

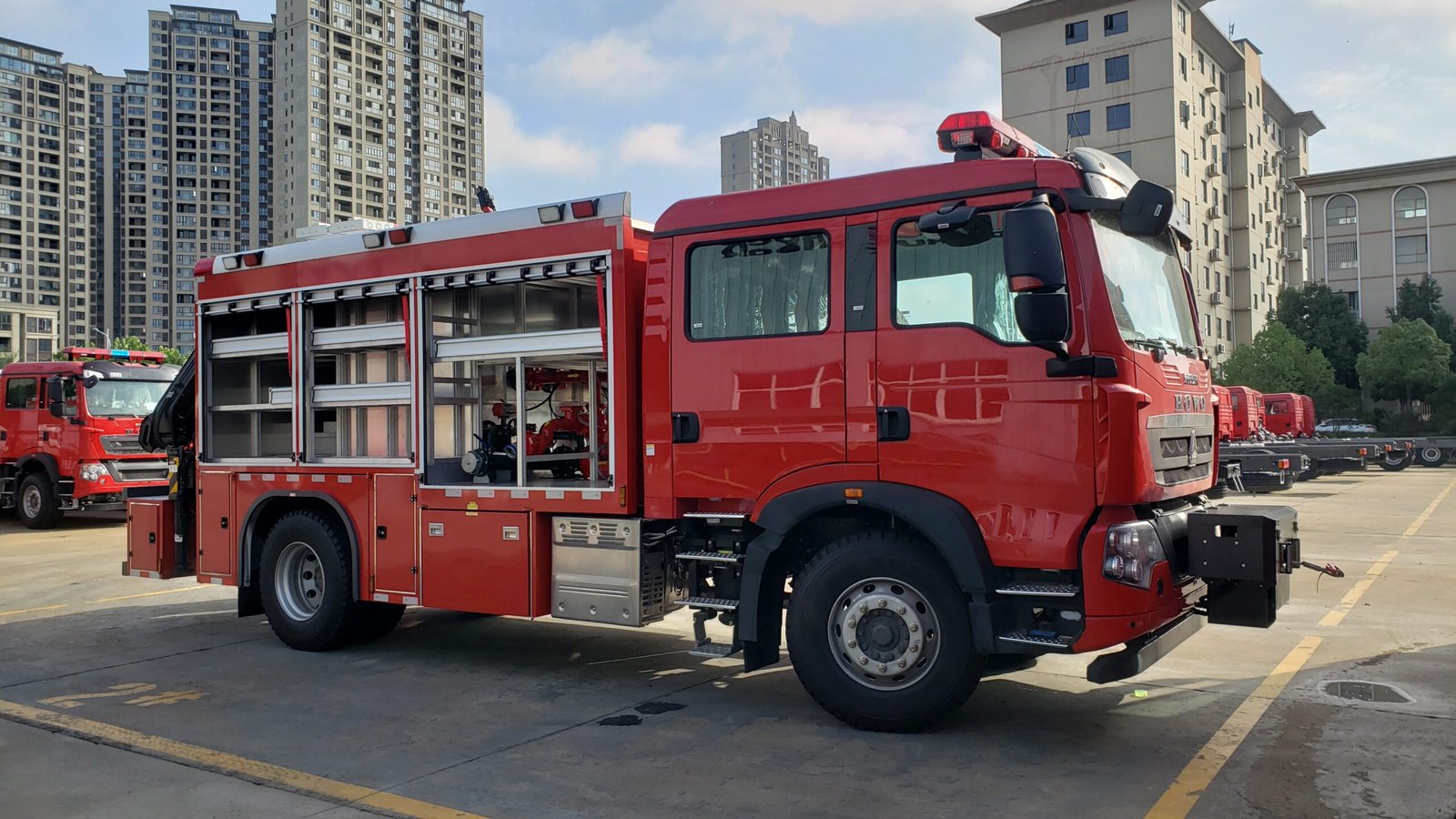

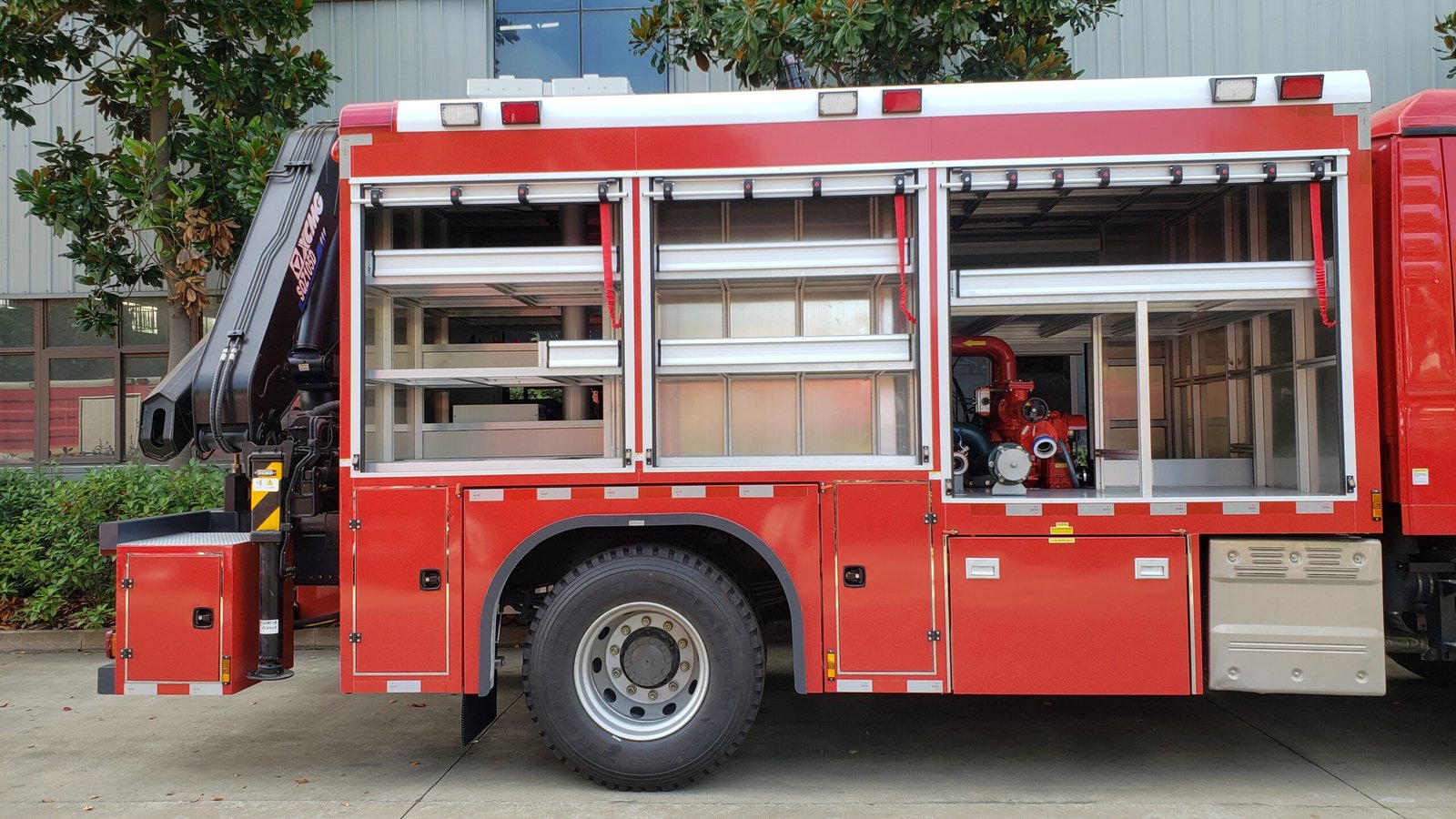

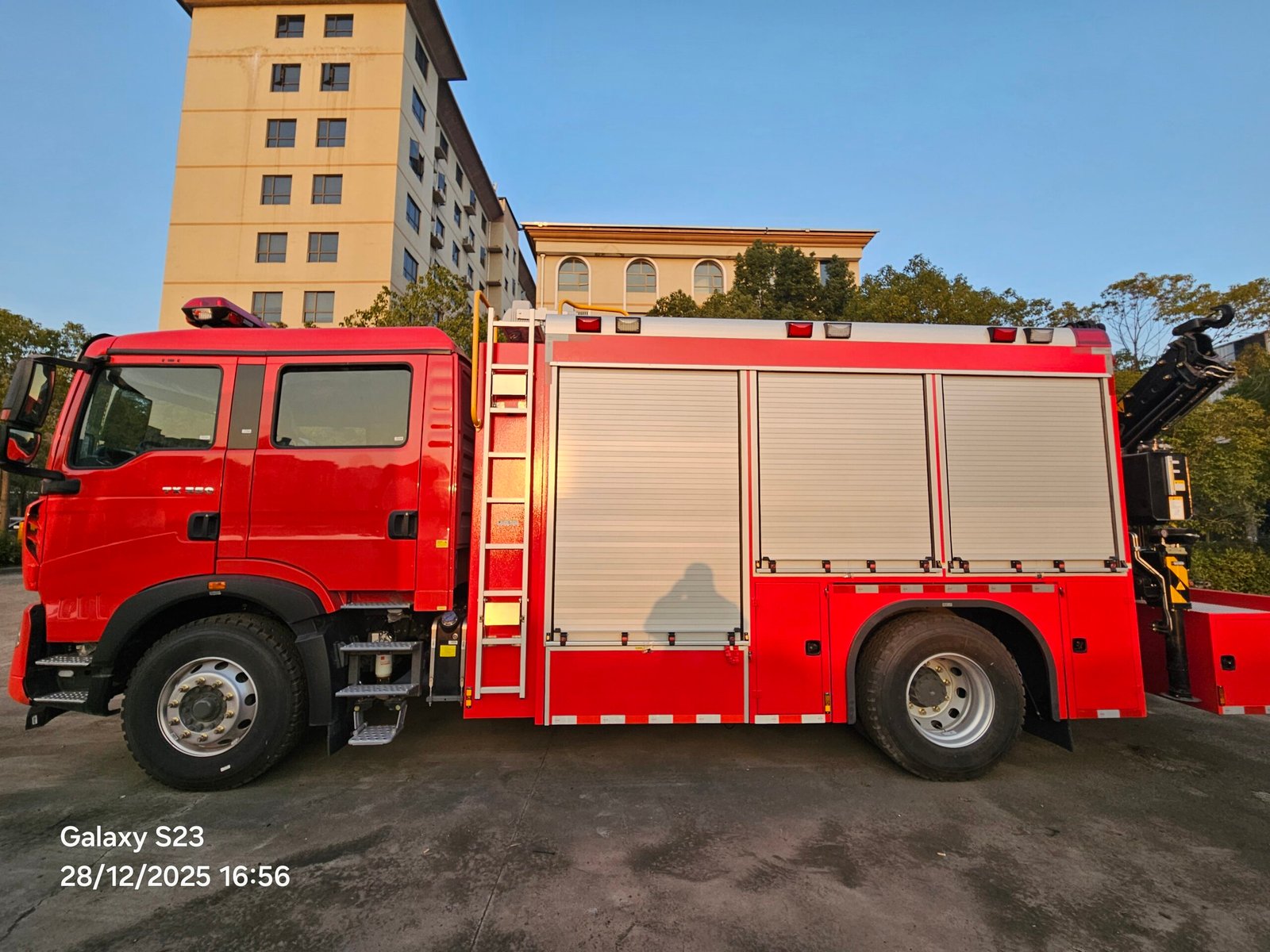

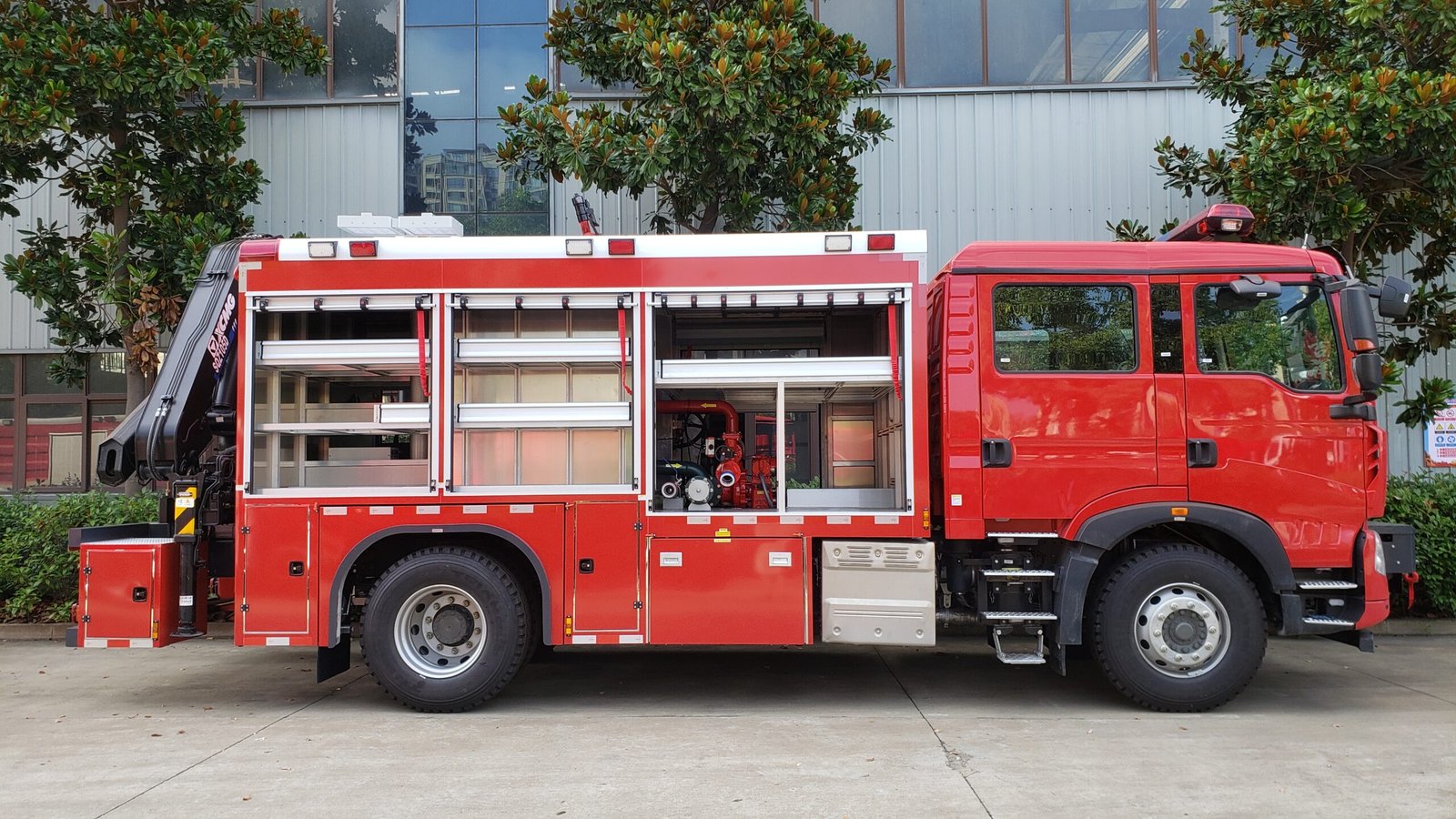

Sinotruk HOWO 4×2 Air Supply Fire Truck 800L High-Pressure Air Storage Firefighter Respirator Replenishment & Lighting Rescue Vehicle

In stock

The Air Supply Fire Truck is a multi-functional rescue vehicle integrating air breathing apparatus replenishment, air cylinder inspection & testing, and lighting for large-scale disaster sites, designed specifically for fire brigades. Equipped with storage space for 6.8/9.0L breathing cylinders, lifting lighting lamps, on-board generator and on-board compressed air filling system, it provides all-round lighting at disaster sites, efficiently solves the problem of slow inflation of breathing cylinders, and offers strong support for fire brigades in “extinguishing major fires and rescuing from major disasters”.

  • 1 years warranty

  • Custom orders accepted

  • OEM origin factory

Category:

Description

Vehicle main technical information:SINOTRUK HOWO Air Supply Fire Truck
Gross Vehicle Weight 16000 kg
Wheelbase 4700 mm
Overall Size(L*W*H) 8660*2530*3800 mm
Drive Type 4×2
Fuel Diesel
Front-seat Passenger 2+4
Chassis & Engine Parameters
Chassis Brand SINOTRUK HOWO
Chassis Model ZZ5207TXFV471GF5
Engine Model MC07H.35-60
Engine Power 257 kw
Engine Horsepower 350 hp
Vehicle Specifications
On-board Generator
Brand Stanford
Power 128kW
Rated Voltage 400V
Frequency 50Hz
High-Pressure Air Storage System
Brand Dekang Times
Model DKPZ-16
Number of Cylinders 16 pcs
Water Volume of Single Cylinder 50 L
Total Storage Water Volume 800 L

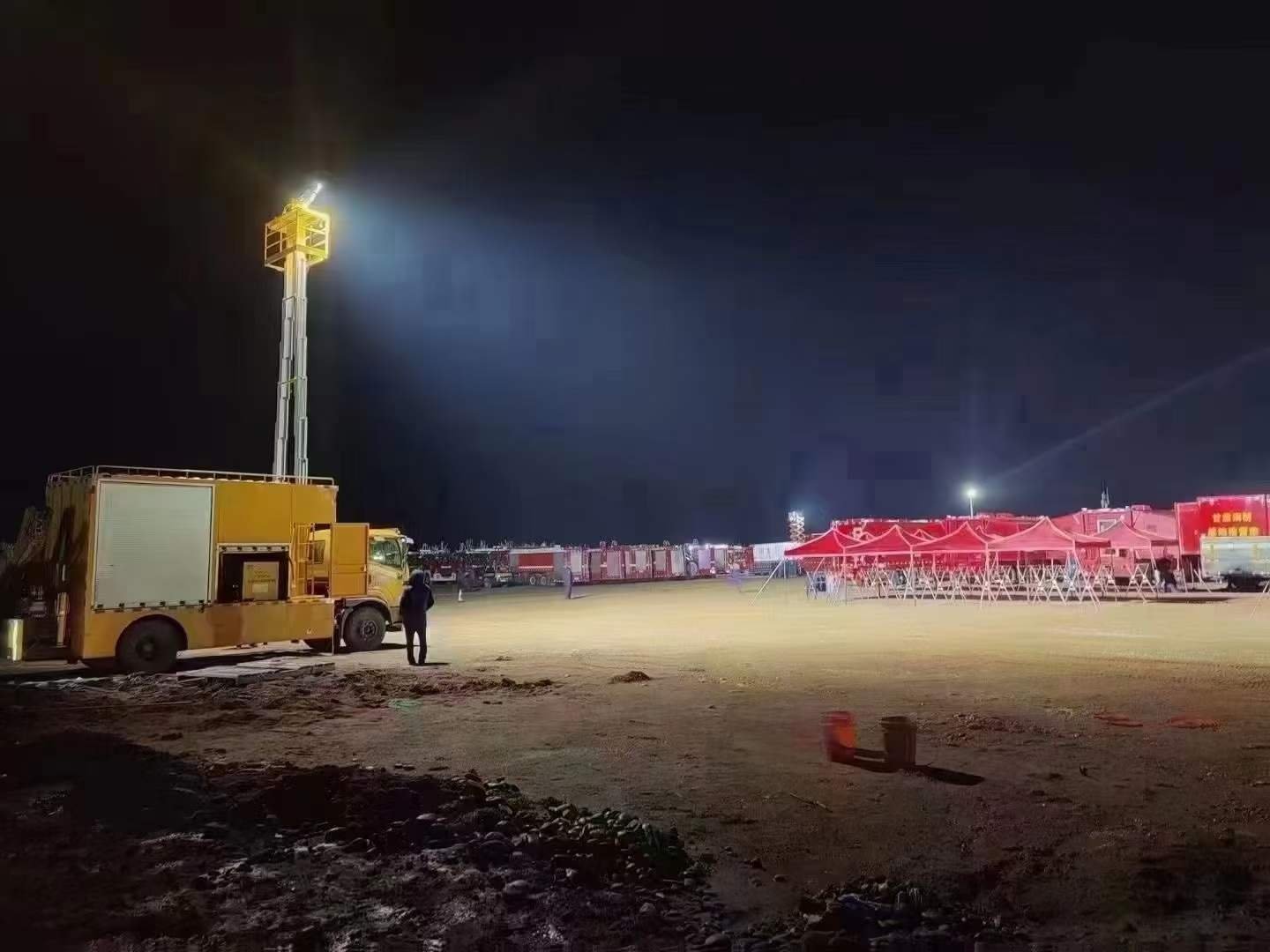

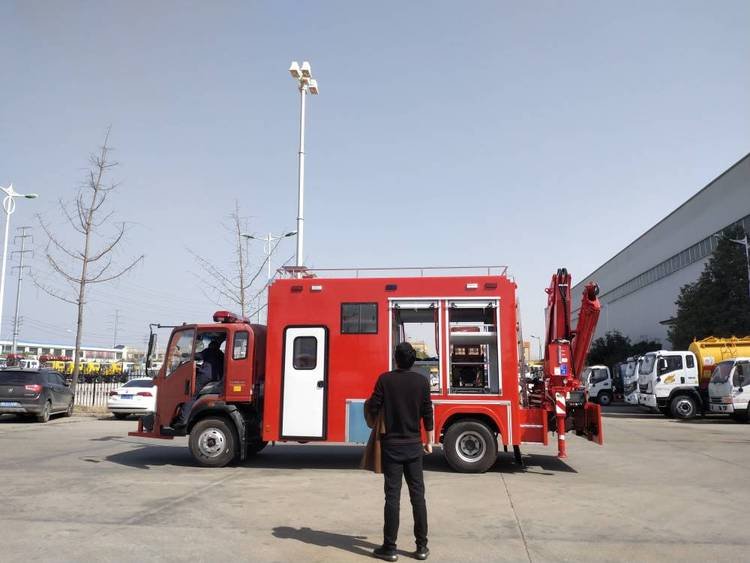

Lifting Lighting System
Model YZH6-4.83CFA (Shanghai Bocan)
Power 10KVA
Frequency 50Hz
Voltage 380/220V
Main Lighting Lamp Power 1500W×4 (Halogen Lamps)
Lifting Pole & PTZ Aluminum Alloy
Maximum Ground Clearance 8m
Lifting Speed ≤8s
Pitch Angle ≥±90°
Horizontal Rotation Angle ±155°
