Description
| Chassis Specification | ||
| Item No. | Parameters | |

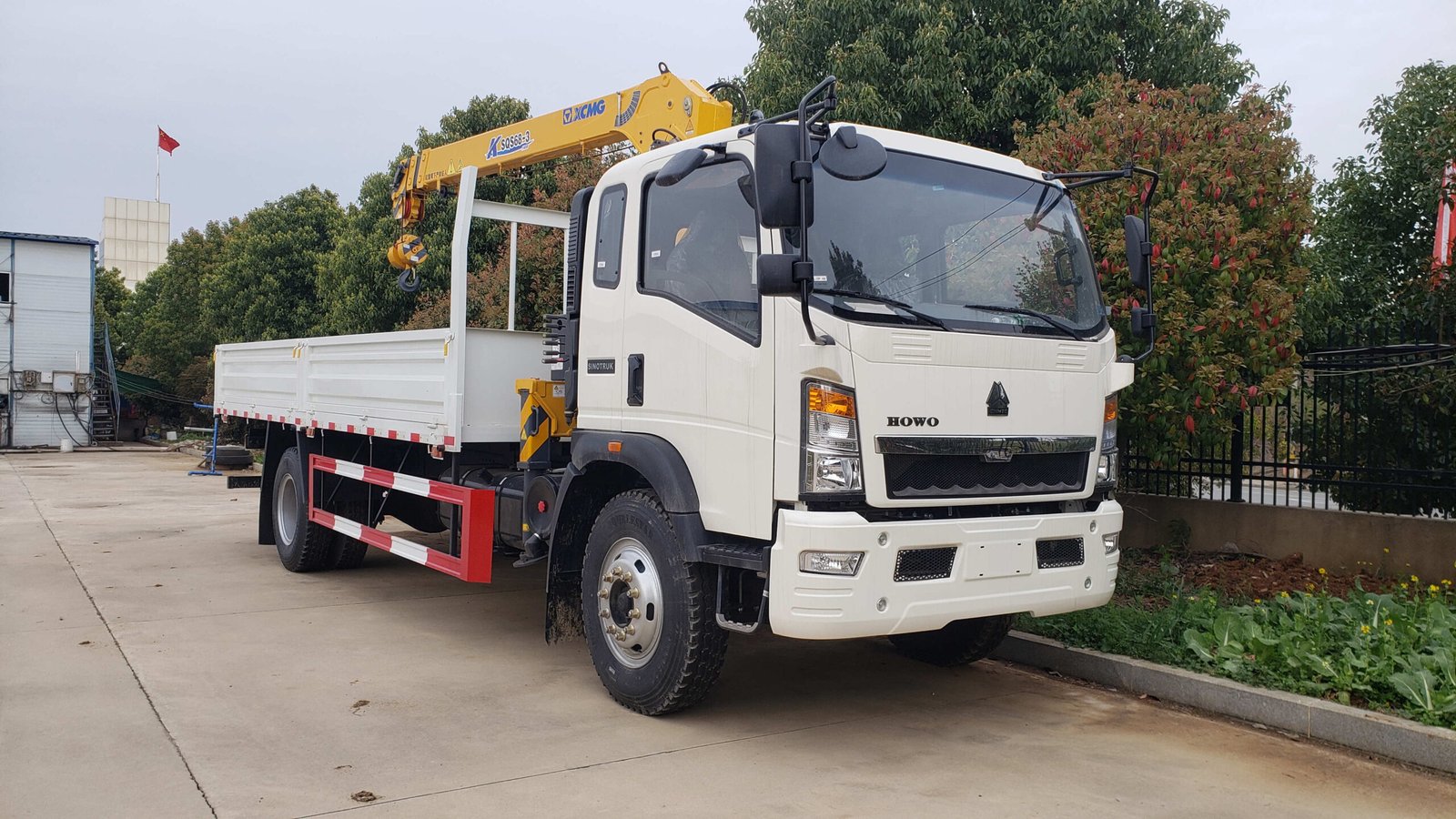

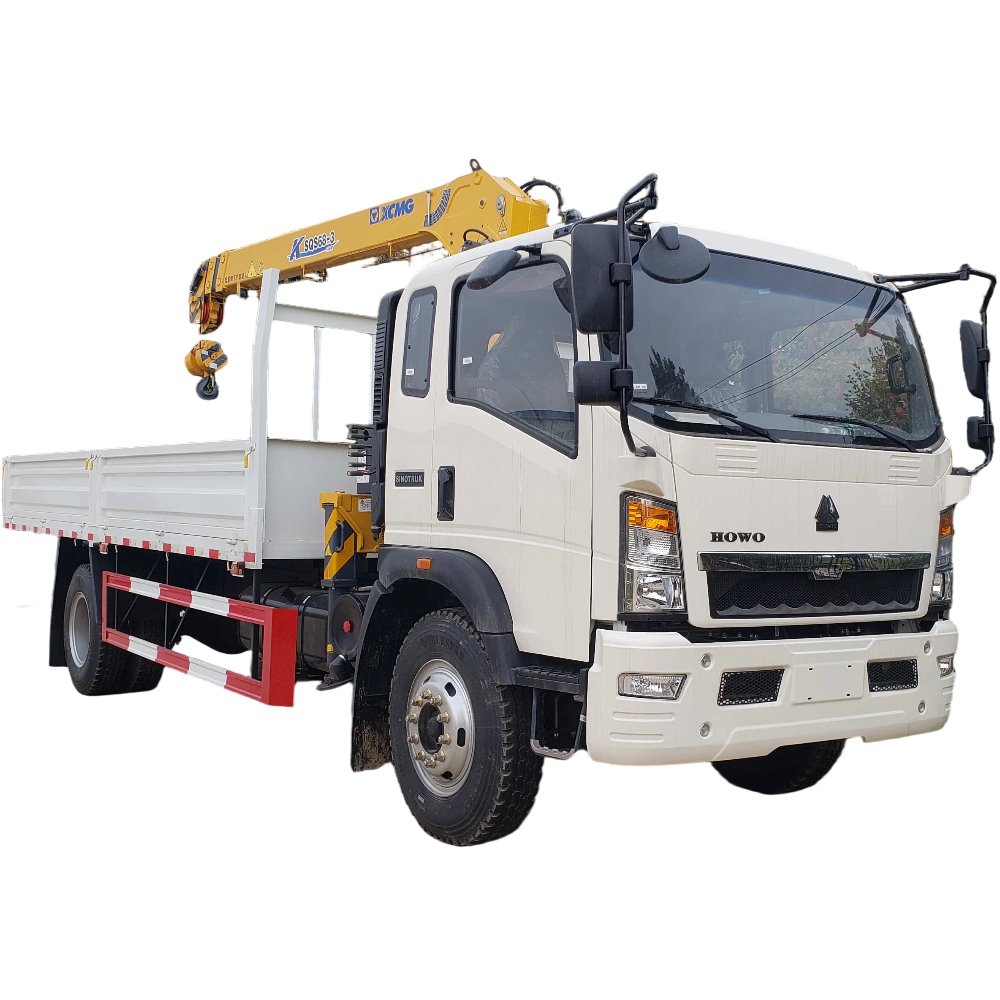

| Chassis Brand | HOWO | |
| Overall Dimension | 8215X2500X3850mm | |
| Gross Vehicle Weight | 15795 kg | |
| Curb Weight | 8450 kg | |
| Loading Weight | 5805 Kg | |
| Front/rear axle loading capacity | 5000/7200kg | |
| Wheel Base | 4500 mm | |
| Cabin | Single, Left Hand Driving, 2 Passenger Allowed | |
| Engine | Type | Diesel Engine |
| Engine horsepower | Cummin s 168HP EURO II | |
| Gearbox | Manual , 6 Forward & 1 Reverse Gear | |
| Brake System | Air Brake | |
| Steering Gear | Power Assistant | |
| Tire | 9.00-20, 6 Pieces with 1 Spare | |
| Max Driving Speed | 90 km/h | |
| Cargo compartment | |
| Material | Q235 |
| Dimension | 5070X2400X600mm |
| Thickness | 3mm for side /4 mm for the bottom |
| Technical parameter of crane | |

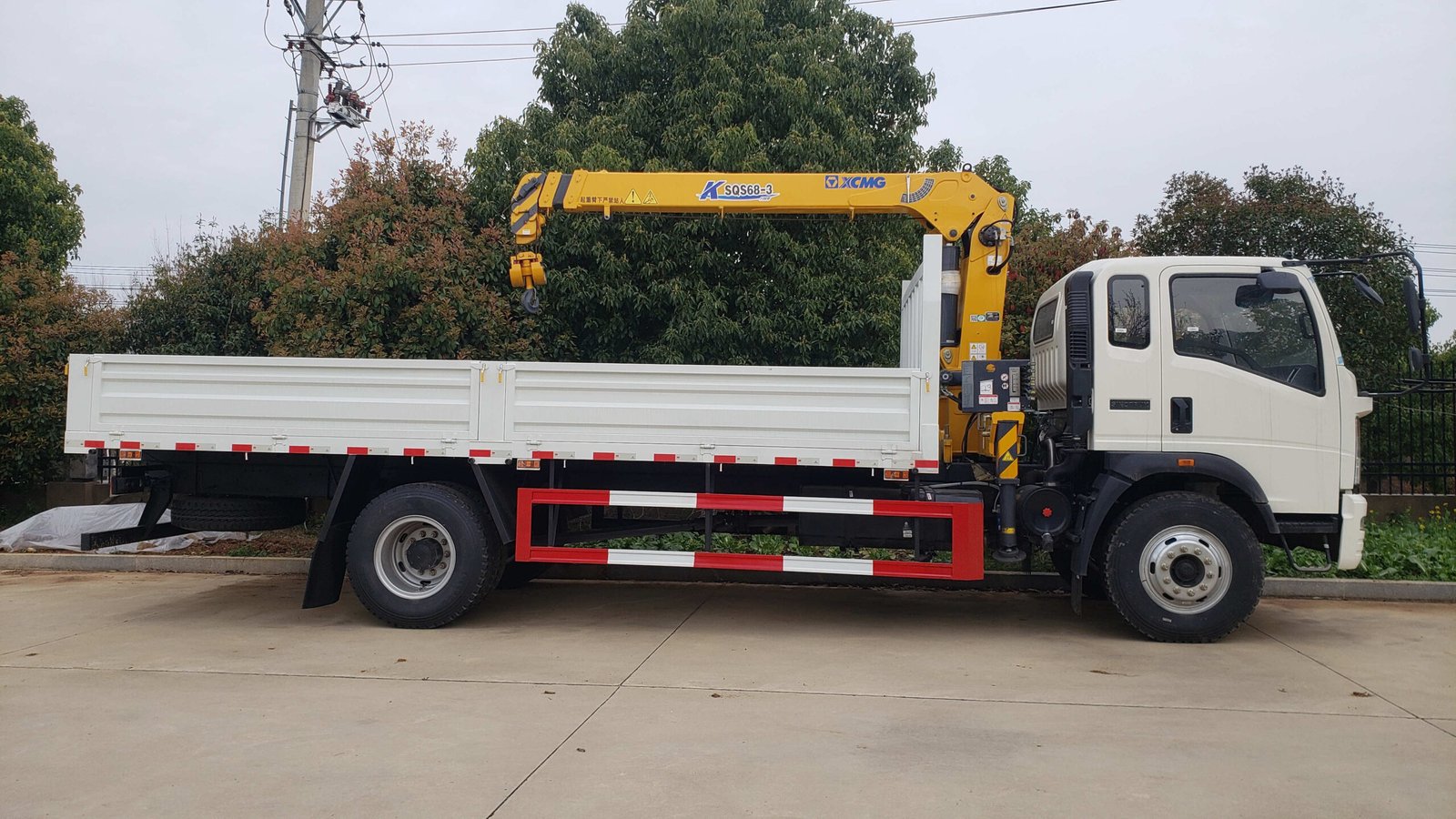

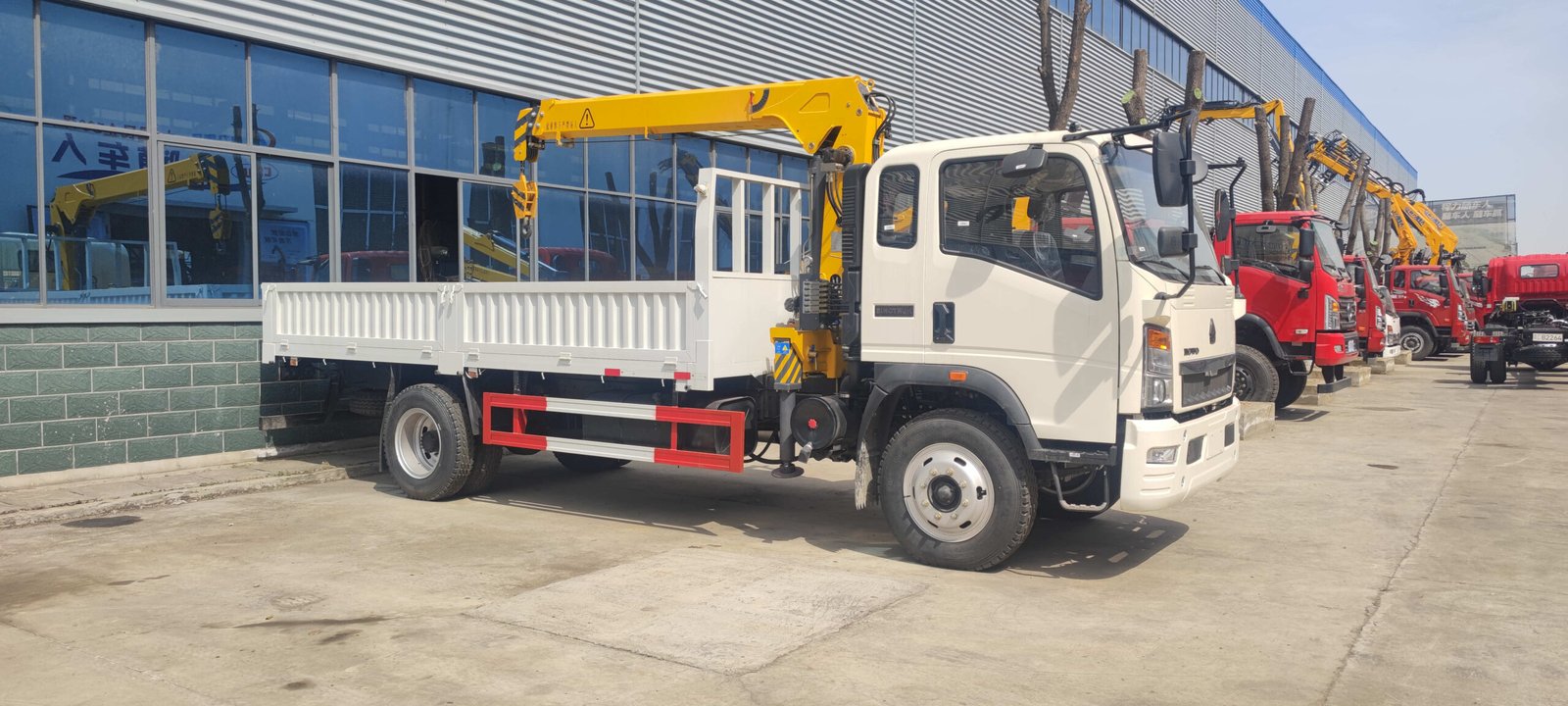

| Crane Model | 5 Ton 3 Arms Telescopic Boom Crane |
| Crane Weight | 2120 kg |
| Max. Lifting capacity | 5000 kg |
| Max lifting height | 12 M |
| Working radius | 8.6 M |
| Outrigger span | 2280-5100mm |
| Rotation angle | 360°All rotation |
| Optional |
1. Seat
2. Hydraulic Lift system 3. Landing Leg |
| Remarks |
1. Color is optional
2.Customized LOGO painting as per customer request |
