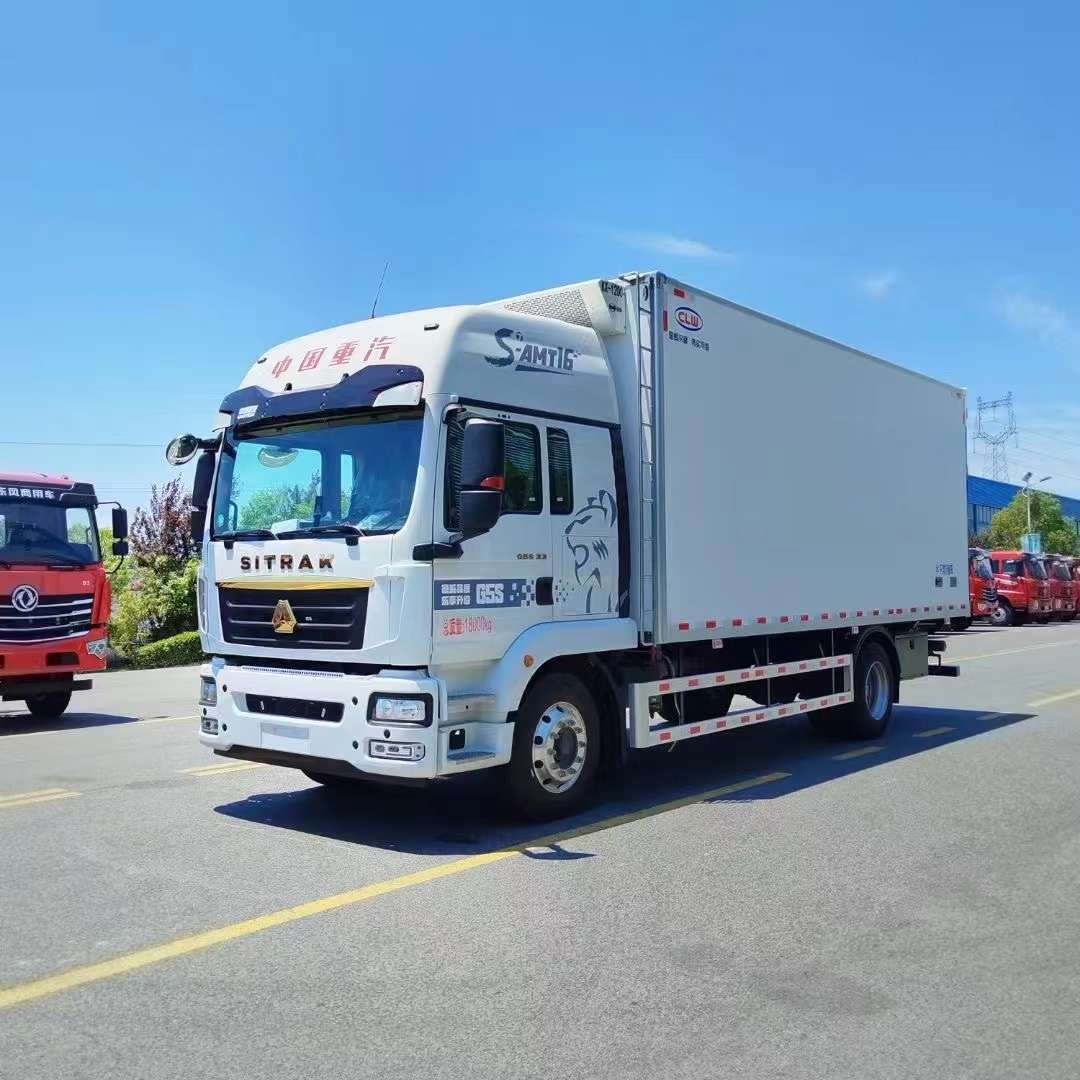

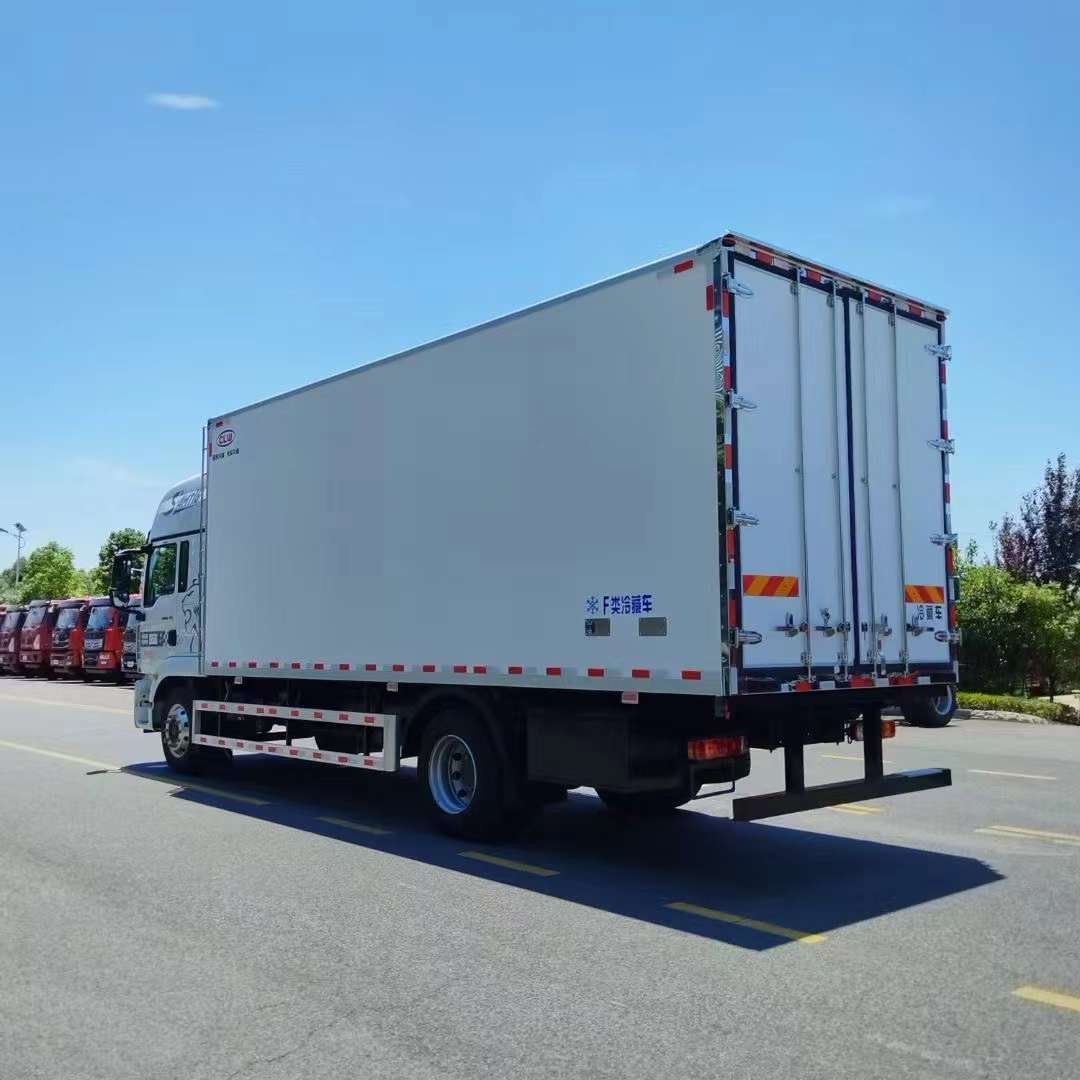

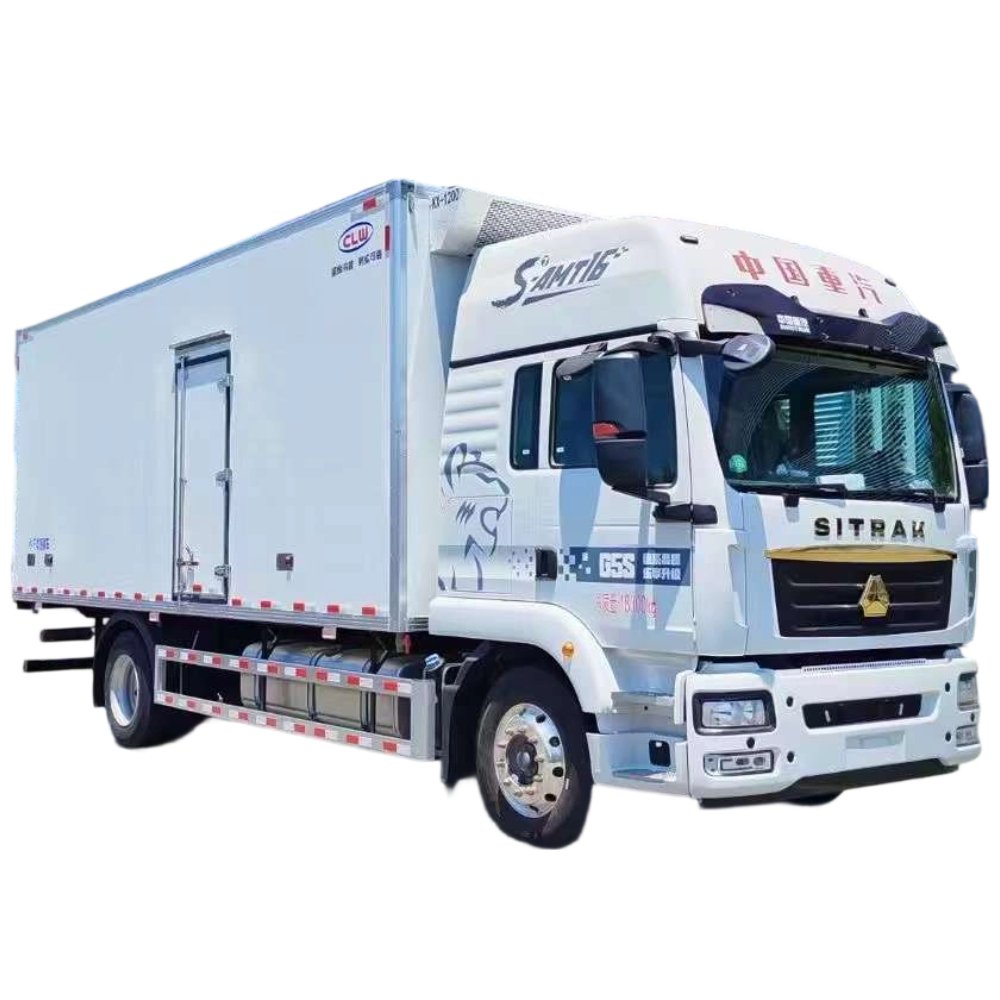

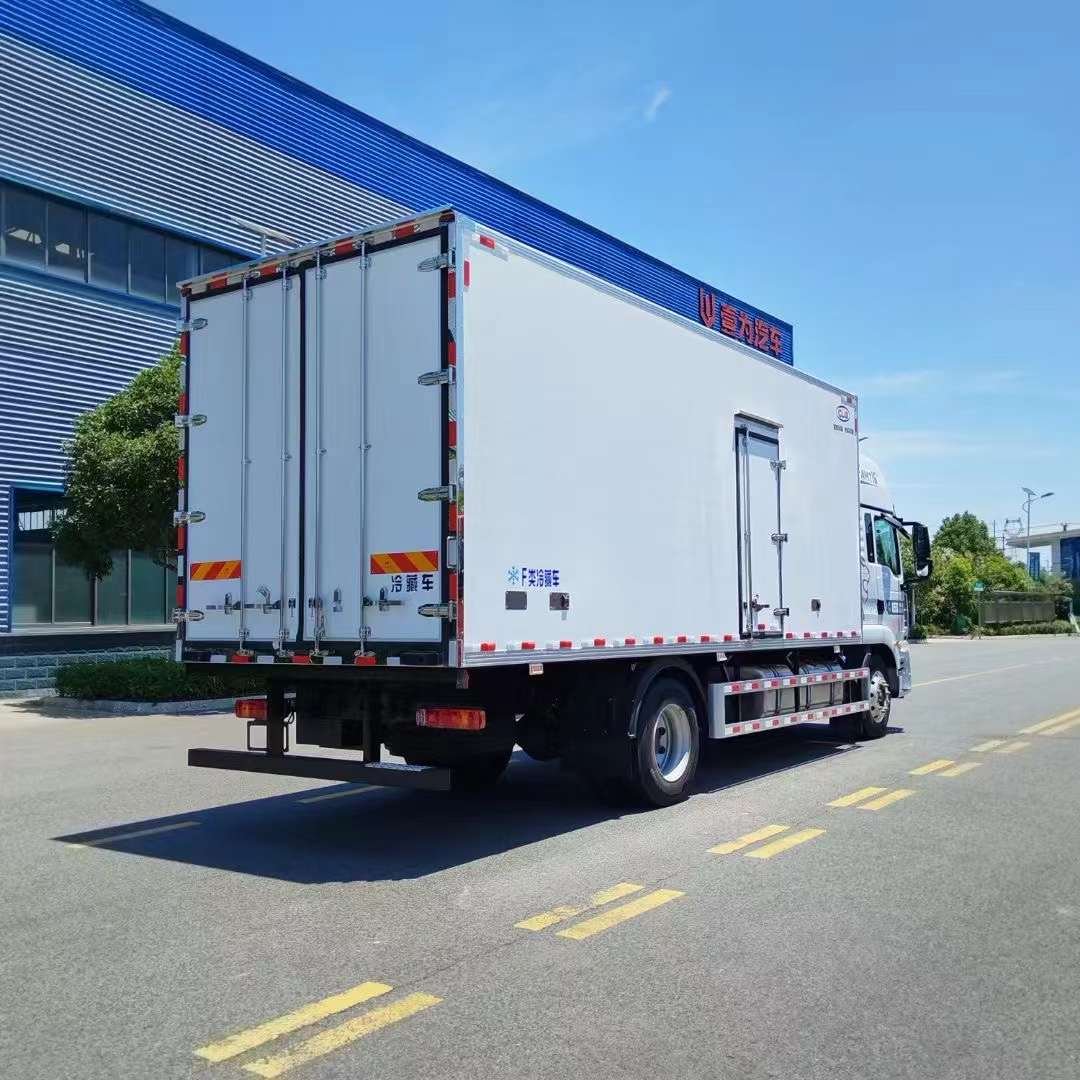

Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter
Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter
Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter - Image 2
Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter - Image 3
Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter - Image 4
Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter - Image 5
Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter - Image 6
Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter - Image 7
Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter - Image 8
Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter - Image 9
Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter - Image 10
Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter - Image 11
Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter - Image 12

Sinotruk HOWO 6 Wheels 8 Tons Refrigerated Freezer Truck Refrigerated box Trucks Day-Chick Livestock Transporter

In stock

Product Description

Refrigerated truck is widely used to transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables, vaccine and drug transporter (vaccine truck), etc

1. Truck Chassis Main Speicification:

a. HOWO 2880 cabin, with air conditioner.
b. ISF3.8s3154, 154HP, Cummins Diesel Engine. EURO-3, EURO-4 both are available.
c. WLY653, Manual control Transmission, 5 Forwards gear & 1 reverse gear.
d. 120L Aluminum alloy fuel tank; 8.25R16LT Tire , 6 pieces with one spare

2. Freezer Van Box Main Speicification:

a. Box Van Size: 4800×2100×2100 mm
b. Refrigerator Box Material: Glass epoxy in the surface; Foam in the middle , side ,top ,front ,rear thickness 80mm;
Inside bottom: Aluminum pattern plate
c. Side door: One unit rear door and one additional right side door, the opening fitted internally with a clear plastic flexible strip curtain.
d. Refrigerating System: America brand Thermo King RV-580.

  • 1 years warranty

  • Custom orders accepted

  • OEM origin factory

Category:

Description

Chassis Technical Parameters
Driving mode 4X2
Overall dimension 9080*2550*3850mm
Wheelbase 5150mm
Gross weight 18,000kg
Curb weight 8,800kg
Loading weight 9,070kg

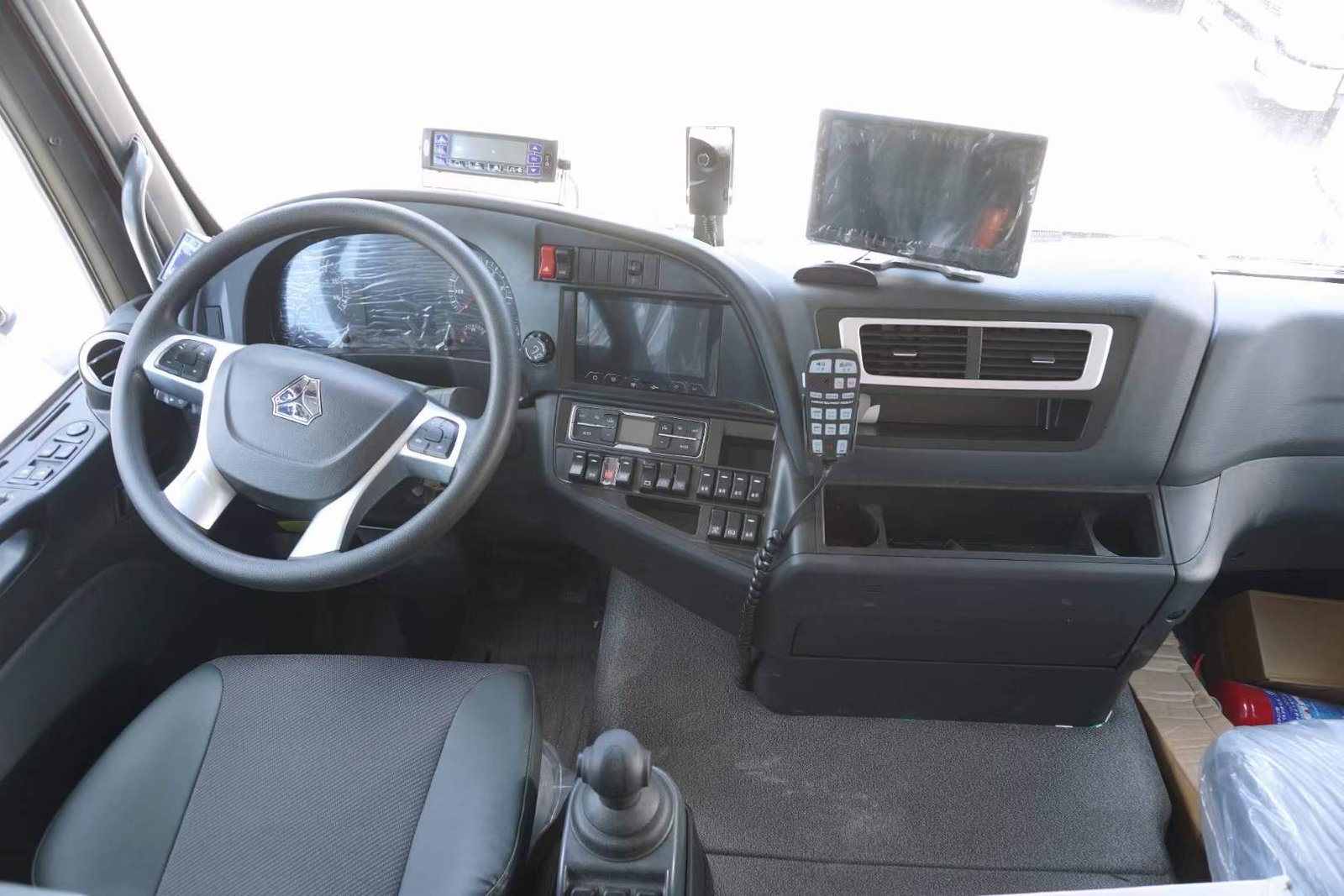

Cabin 2200 one row and a half cabin;

With air conditioning;

Electrical doors and windows;

Central control lock;
Engine Engine model CUMMINS, F4.5NS6B220
Horsepower 220hp; 162KW
Displacement 4500ml
Emission standard Euro 2/ Euro 3
Transmission FAST, 8 forward gears and 1 reverse
Tyre 11.00R25 18PR
Front axle loading 6,500kg
Rear axle loading 11,500kg
Max driving speed 100km/h
Approach/departure angle 18/11°
Front /rear overhang 1270/2660mm
Upper structure parameters
Van length 6.8m
Van dimension 6800*2400*2300mm
Van material Fiberglass reinforced plastic
Thickness 8cm
Base plate Stainless steel plate
Box body configuration Side doors on both sides of the box body *2
5 fans on each side; the number of fans can be adjusted as per the box size
A single side door opens on the right side
Window design
  • Embedded window *8
  • Central Ventilation window on the top *5;
  • 2 fans and 1 louver in front panel;
  • 4 windows with fans at the rear door;
  • 6 sliding windows on each sides.
Others Stainless steel railing on both sides of box body ( Storage rack);

Water heating and independent duel heating optionally installed as per the regional climate;
Optional
  1. 450L fuel tank; optional 450L fuel with dual fuel ports;
  2. Box body shape style;
  3. Refrigeration unit;
  4. Door opening style on both sides of the box;
  5. Compartment inside the box;
  6. Rear door and side door opening styles
