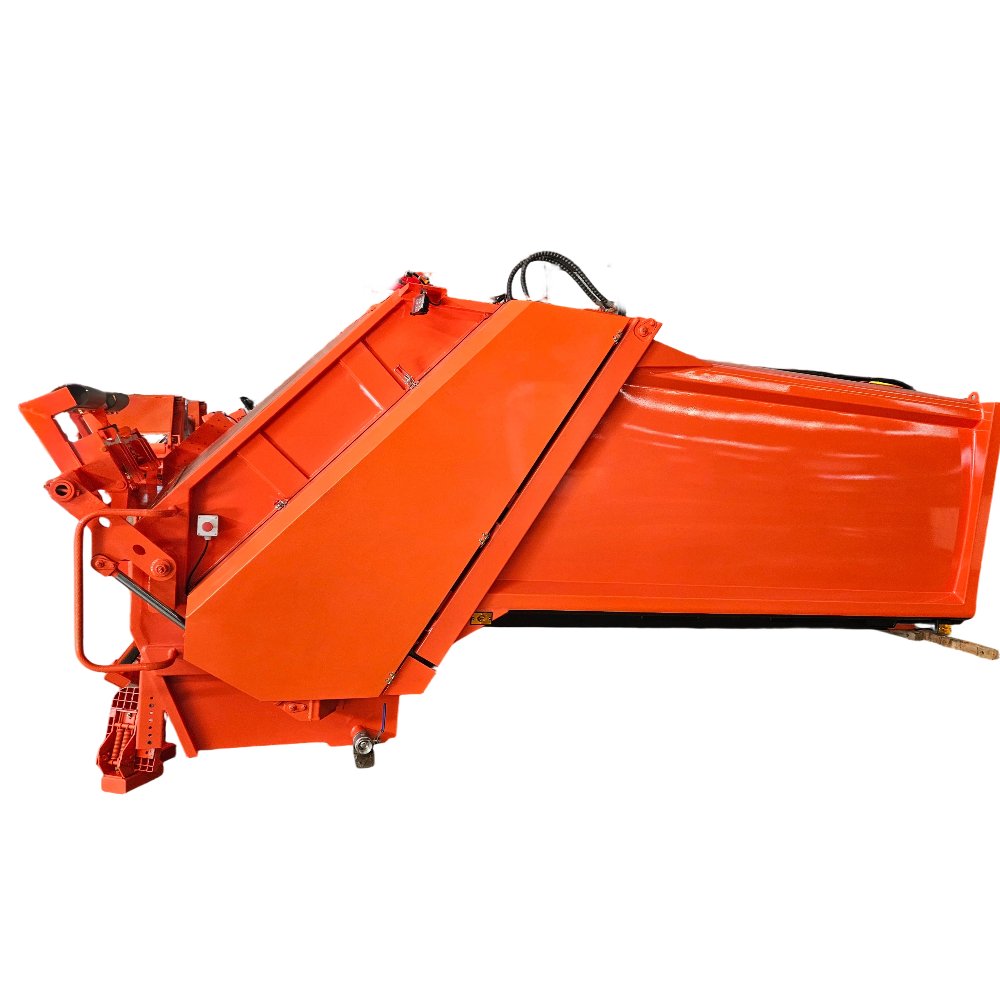

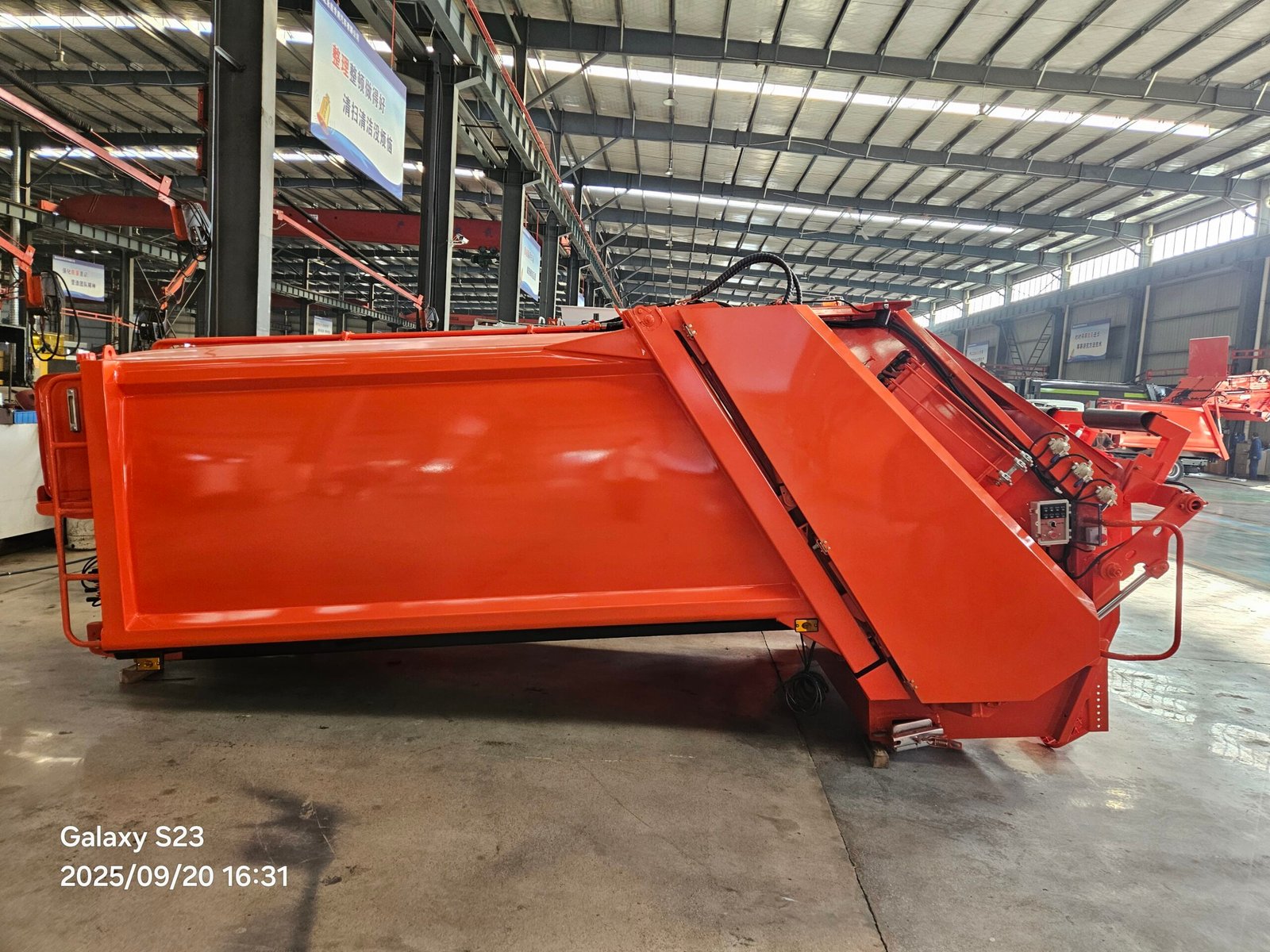

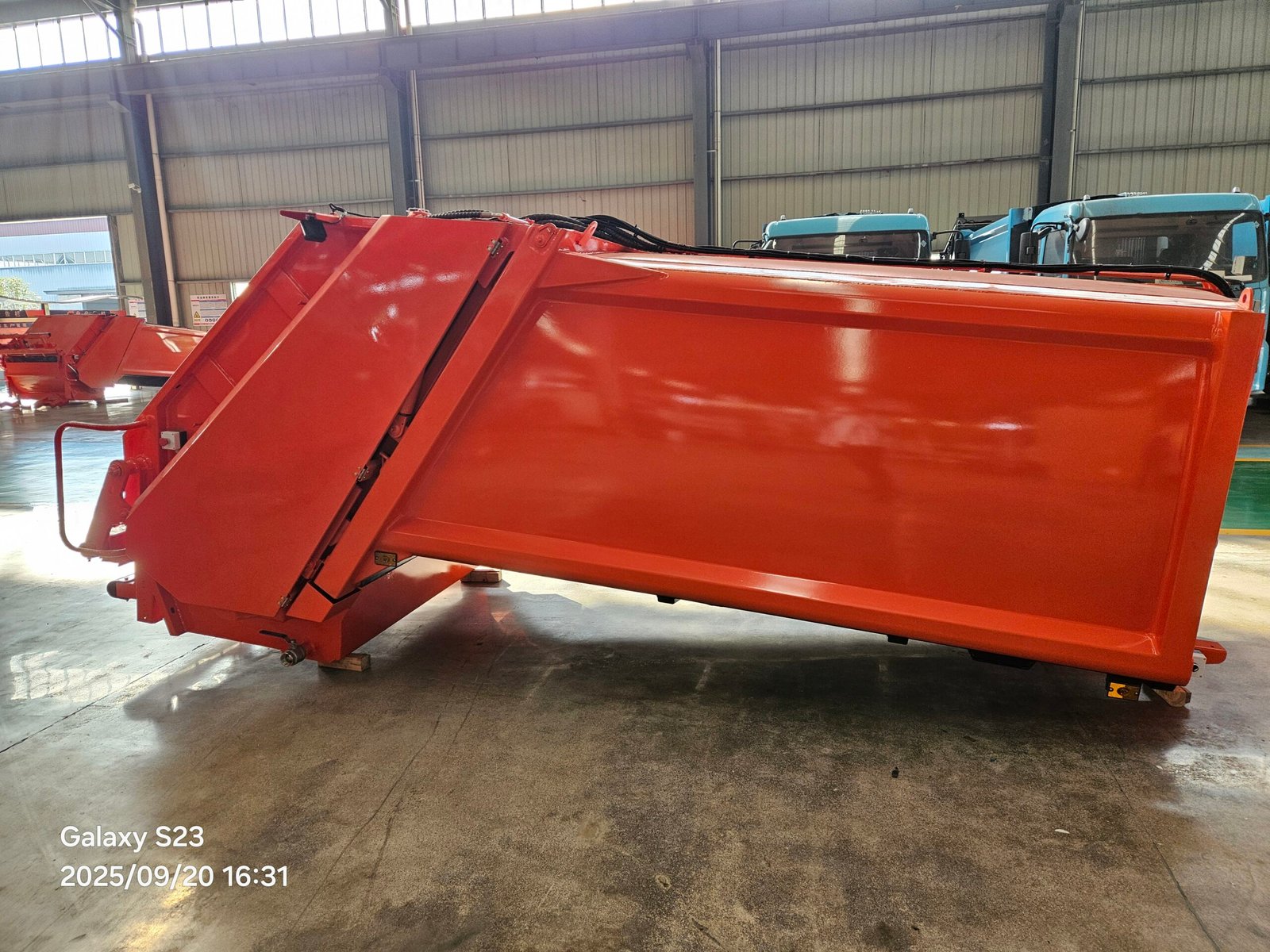

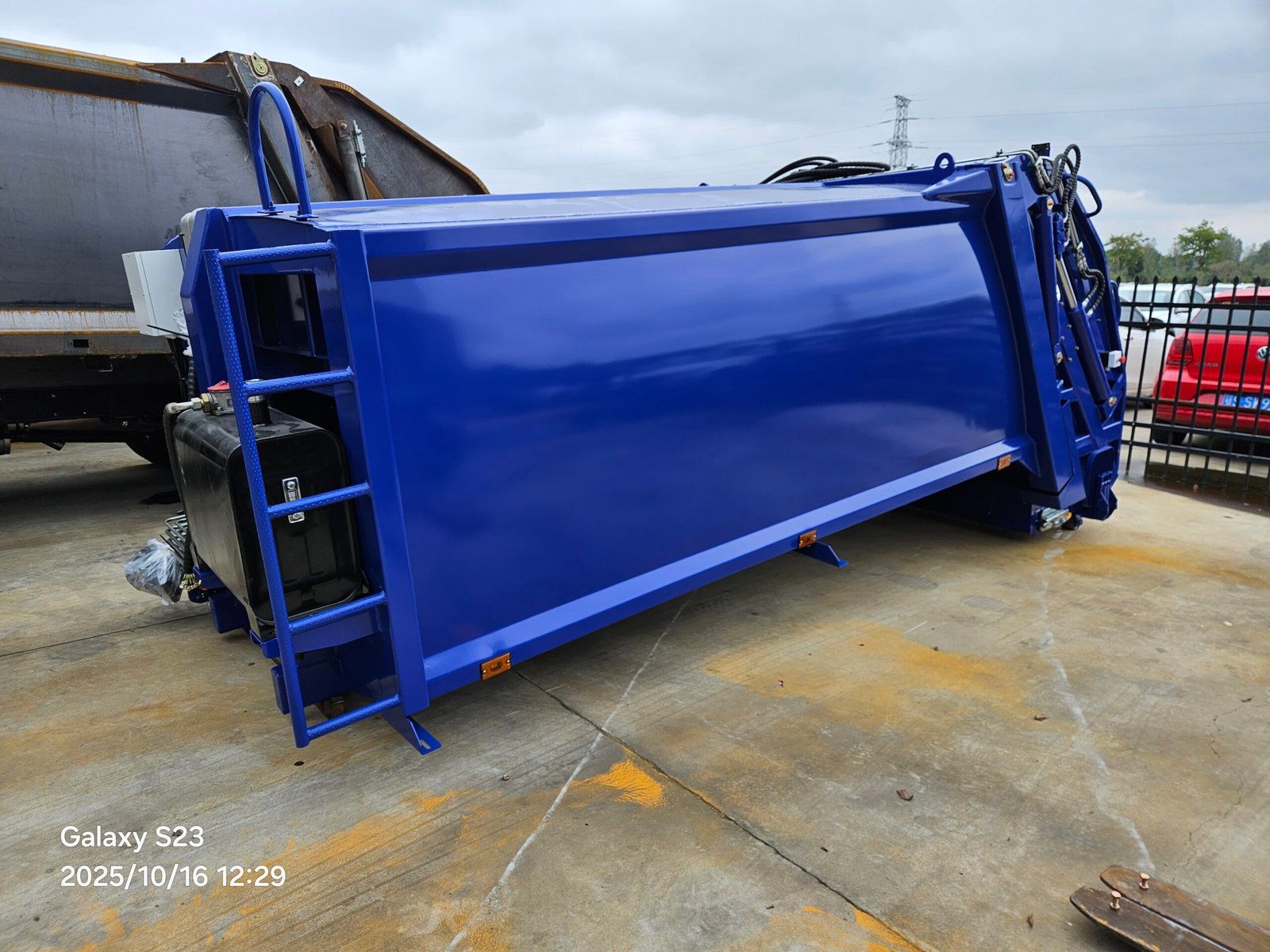

Customized Garbage Compactor Truck Container Bin Body for Rubbish Collection

(1)
In stock

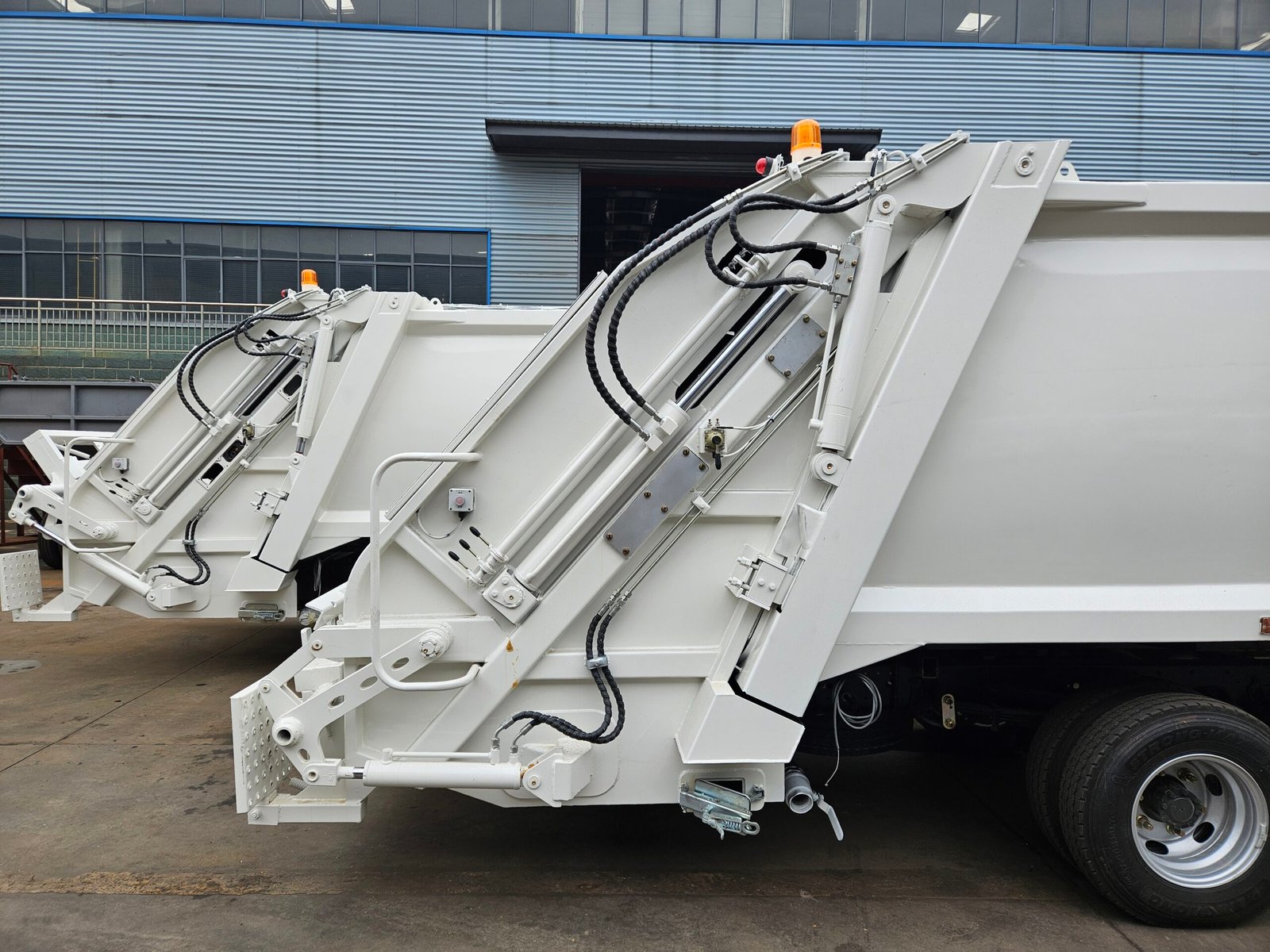

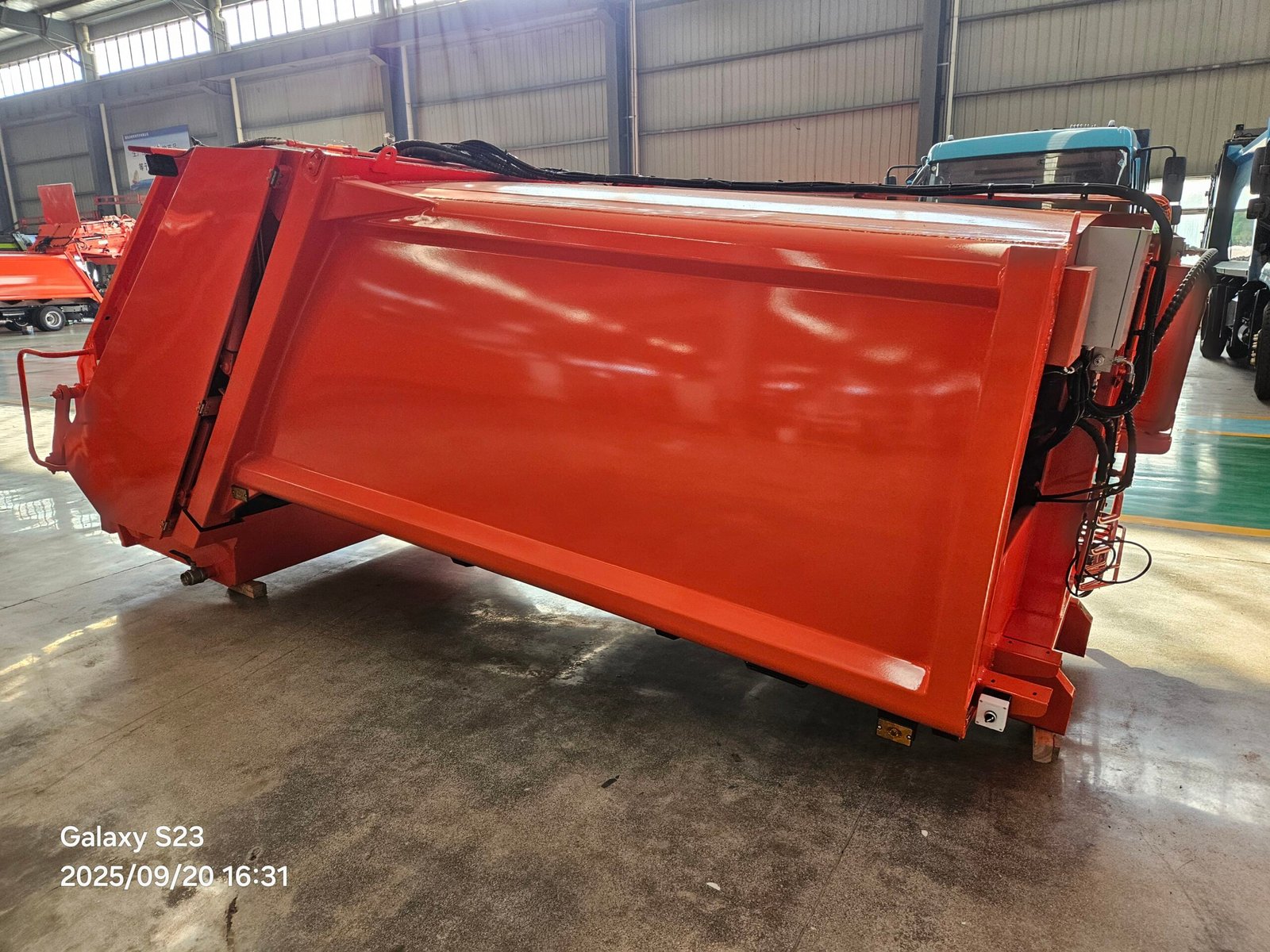

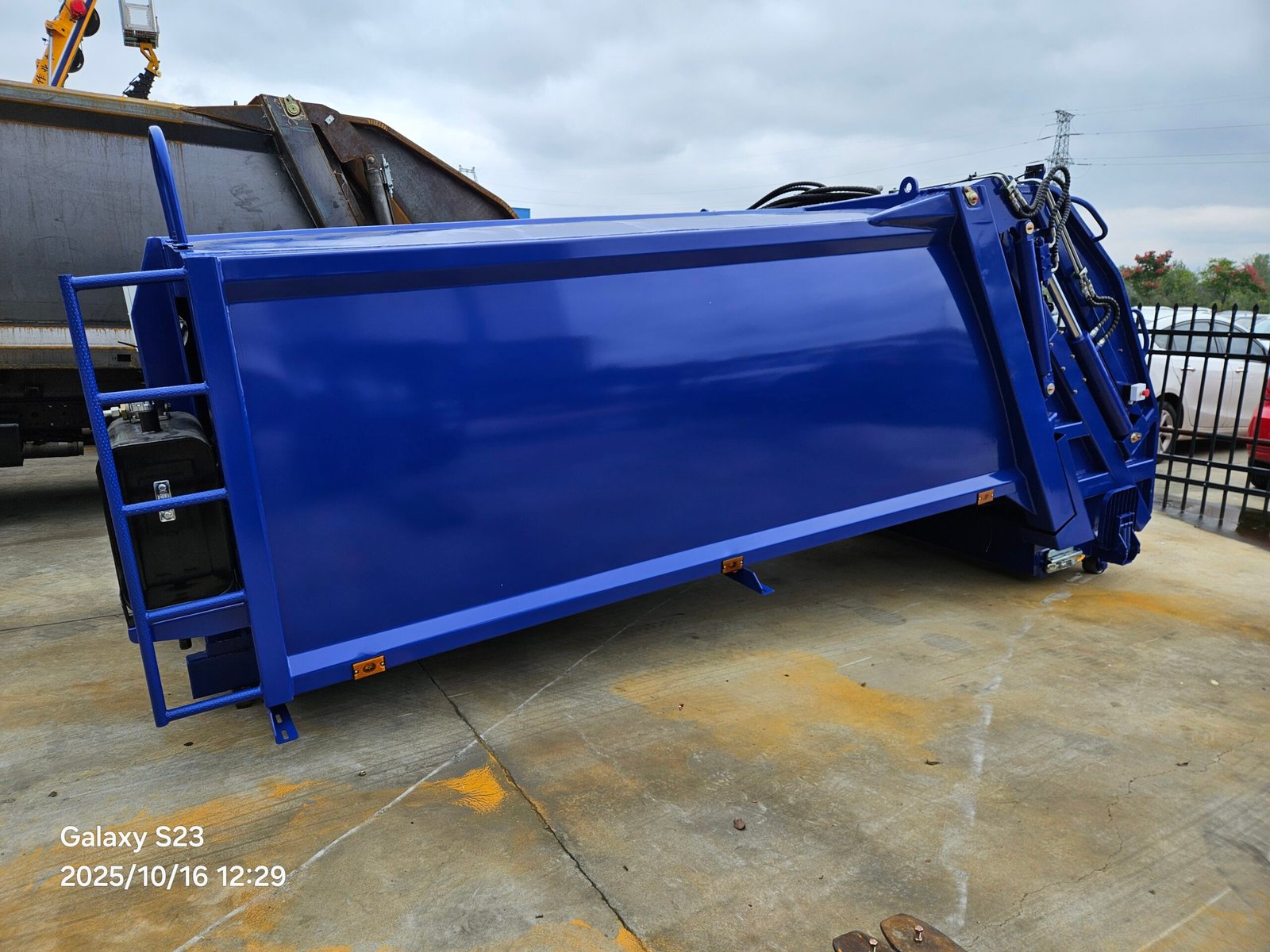

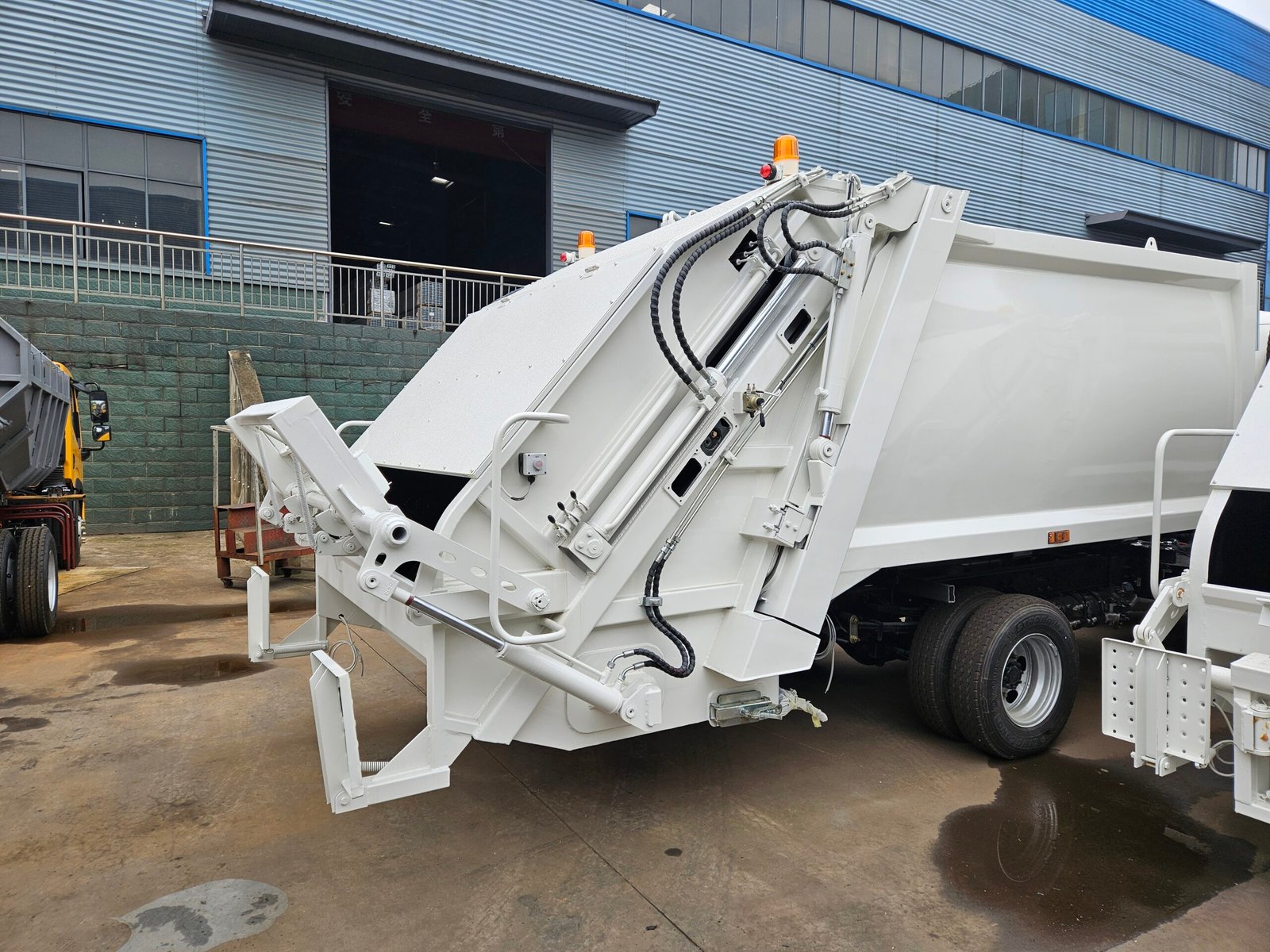

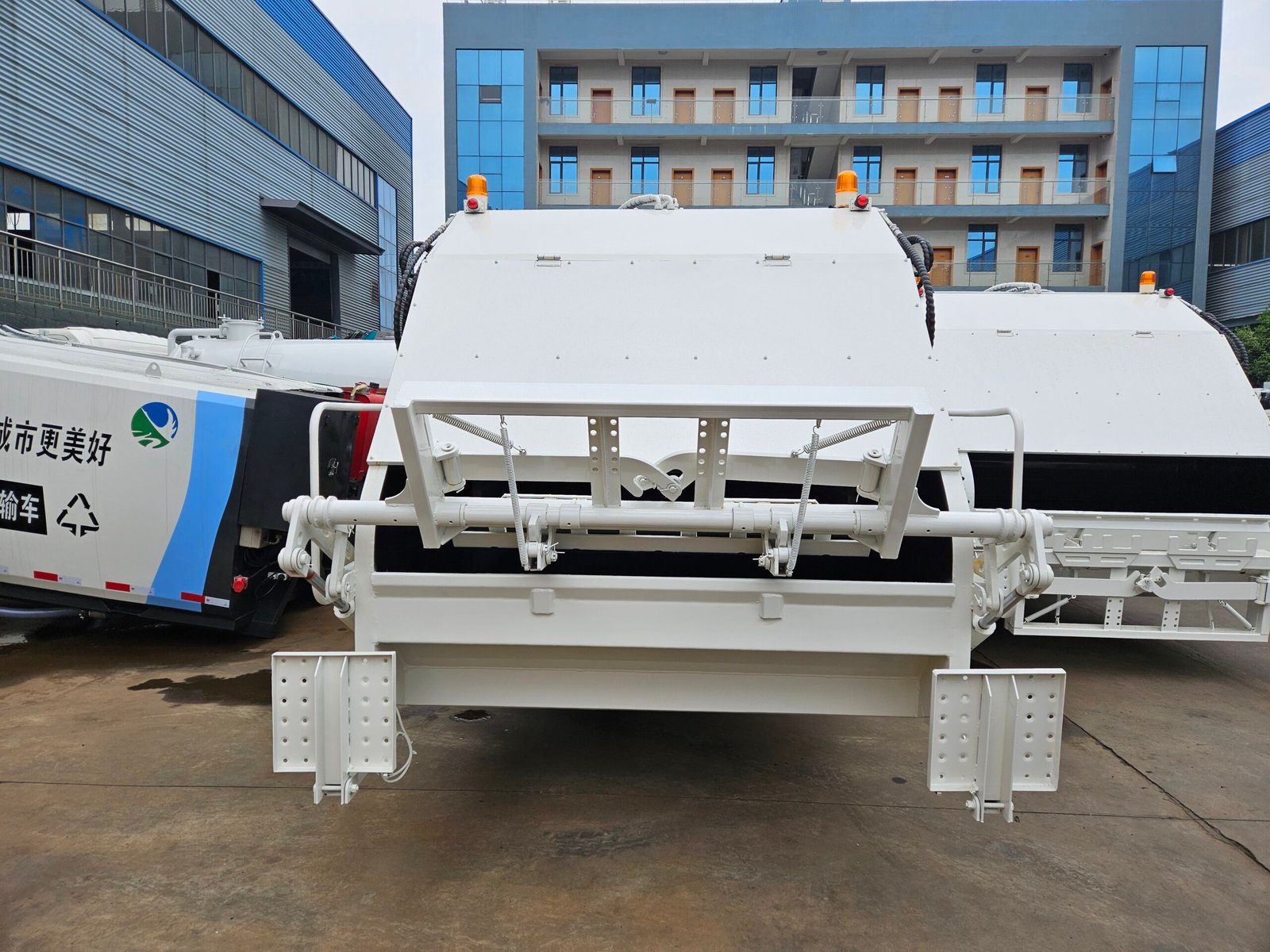

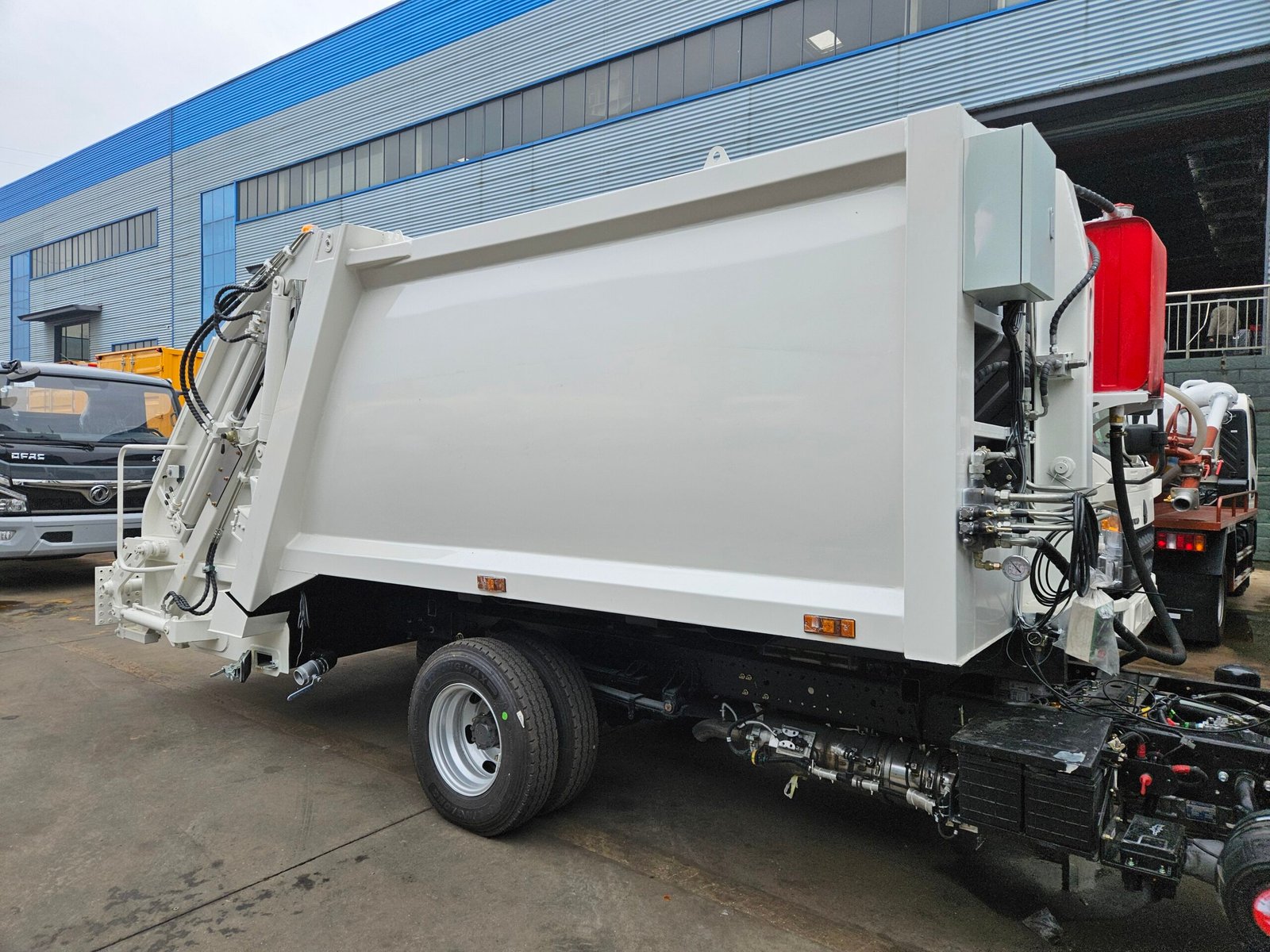

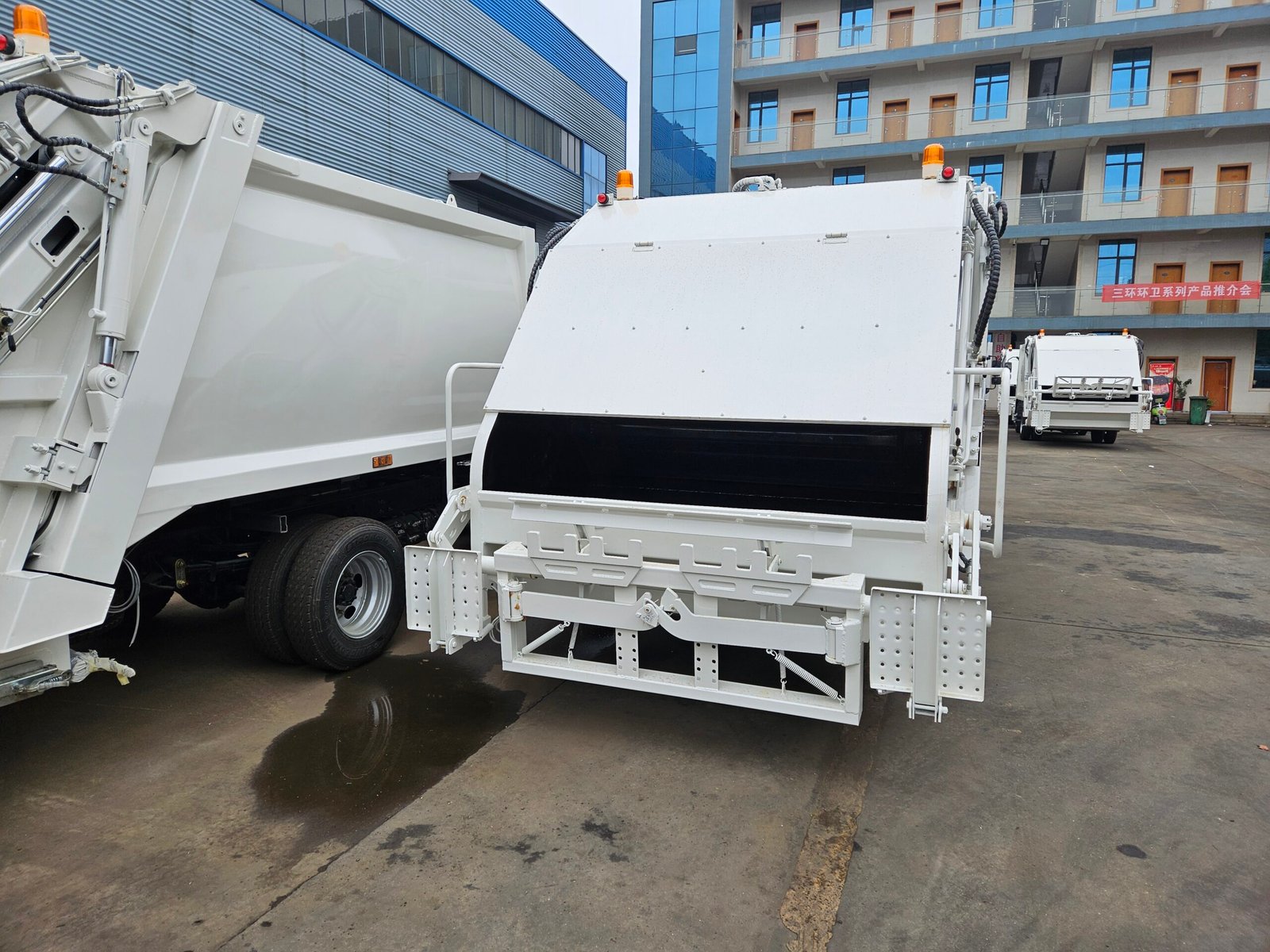

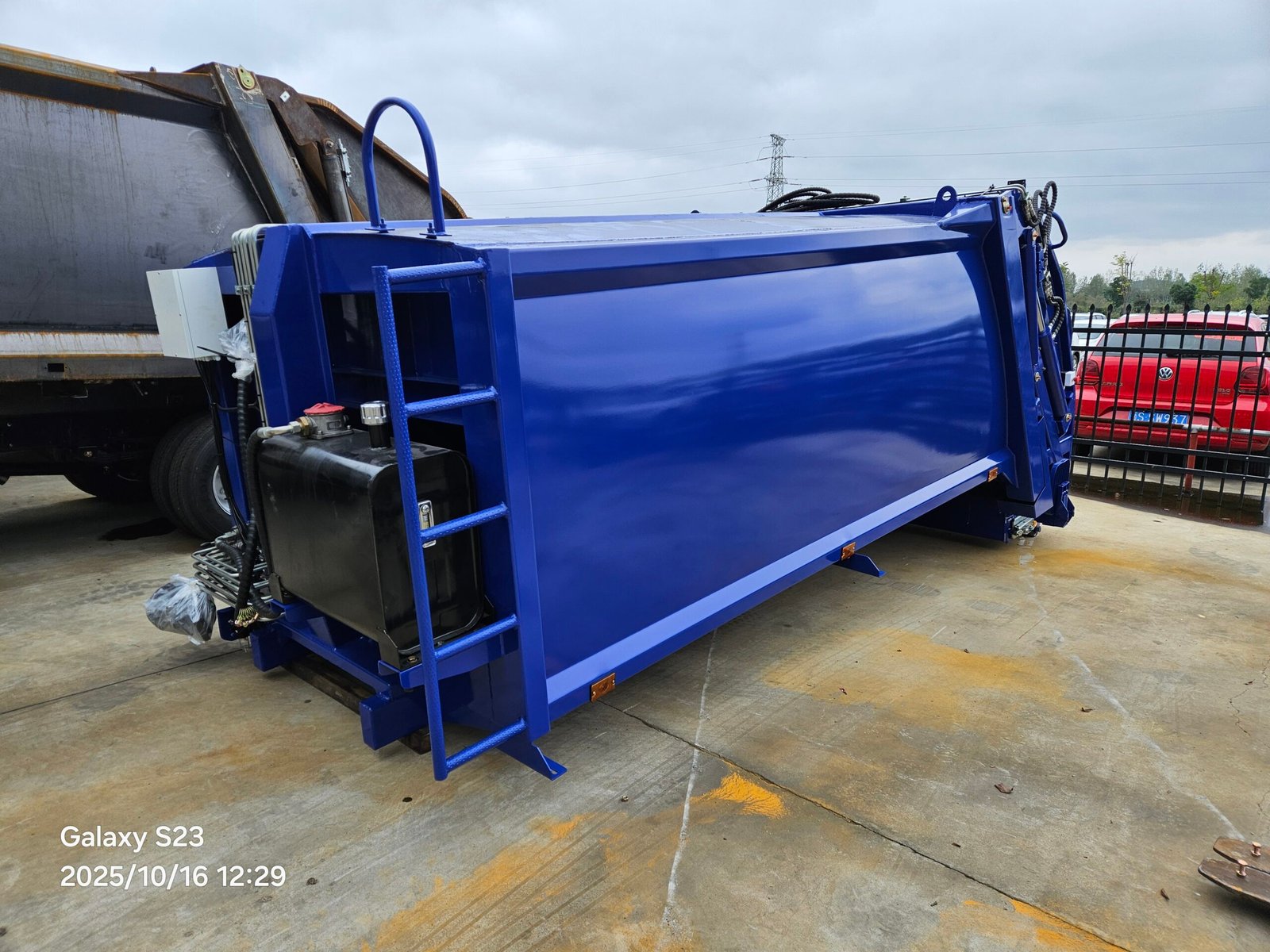

Garbage Compactor Body is a high efficiency to collect, compact, compresse and discharge solid waste, refuse ranging from ordinary to large refuses. Compactor is ideally suited for door to door collection and refuse is also collected at fixed points in containers. Garbage Compactor Body can be mounted on chassis configuration 4×4, 4×2, 6×4, 6×6, etc.

  • 1 years warranty

  • Custom orders accepted

  • OEM origin factory

Description

Product Specifications



Compactor Body
Body dimensions(mm)
4170×1730×1330
Volume
5M3
Body Floor steel
5mm manganese steel
Body Roof steel
4.5mm manganese steel
Body Side Plate steel
4.5mm manganese steel
Ejection Plate steel
Ejection Plate steel
Hydraulic valve
Imported Japan
Water Tank
Volume
150-600L
Material
Stainless steel
Hopper
Volume
1M3
Hopper Loading Height
920mm
Side Plate steel
5mm
Floor Plate steel
5+3mm
Press Plate steel
3& 5mm
Safety
2 Pcs safety bars for hopper
Working Specification
Control mode
Automatic +Manual
Compaction ratio
1:3
Time for single loading cycle
10-11s
Time for single discharge cycle
<18s
Max broke force of compression
16T
