Description
| Product Name | Sinotruk HOWO compactor garbage truck 16m3 |
| Driving Type | 6×4,left hand drive |
| Weights | |
| Payload (kg) | 25000 |
| Curb weight(kg) | Approx.12500 |
| Dimensions | |
| Wheelbase(mm) | 4600+1350 |
| Overall Dimension(mm) | Approx.10600×2500×3560 |
| Box capacity | 16m3 |
| Engine | |
| Engine model | WD615.69(336HP) |
| Engine type | 4 stroke water-cooled,inter-cooling |
| No. of cylinders | straight-6 cylinders |
| Displacement(L) | 9.726L |
| Rated power Rev((Kw/rpm) | 247kw/2200rpm |
| Max Torque(N*m)/Rev(r/min) | 1350/1100-1600 |
| Emission standard | EURO 2 |
| Drive Line | |
| Transmission | HW19710,10 forwards,2 reverse gear,manual operation |
| Steering | ZF power steering |
| Brake system | Air brake |
| Cab | |
| Cab | HW76 new type cabin |
| Standard configuration | with A/C |
| Axle | |
| Front axle | HF7 |
| Rear axle | ST16+ST16 |
| Tire specification | |
| Tire specification | 295/80R22.5 standard tire,10 tires+1 spare tire |
| Specification of compactor garbage truck | |
| Box capacity | 16m3 |
| Box material | Side 5 mm, bottom 5mm |
| Sewage tanker | 200L |
| Fill volume | 1.2m3 |
| Loading time | 20-30S |
| The cycle time of the loading | 50-60S/per turn |
| Unloading time | 40-50S |
| Hydraulic system pressure | Approx.16Mpa |

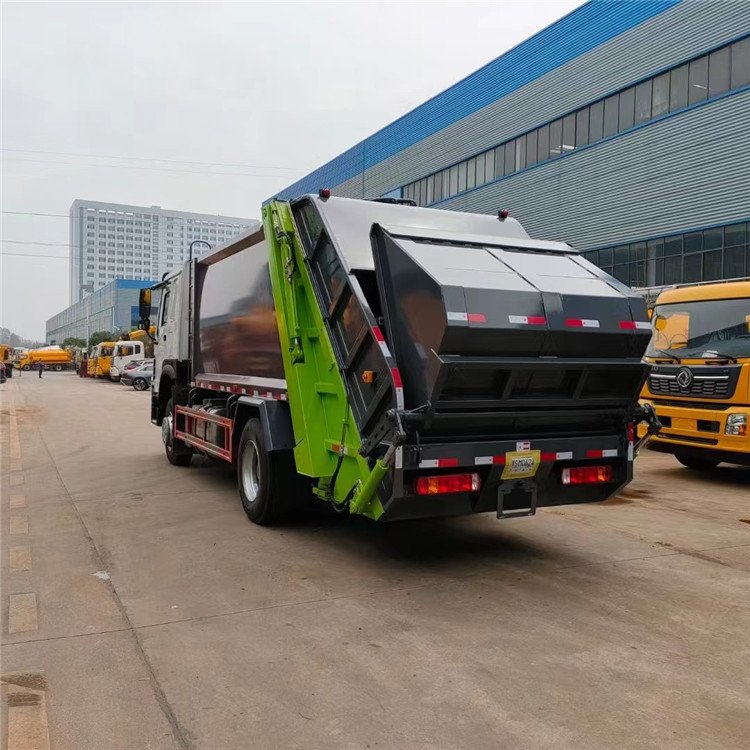

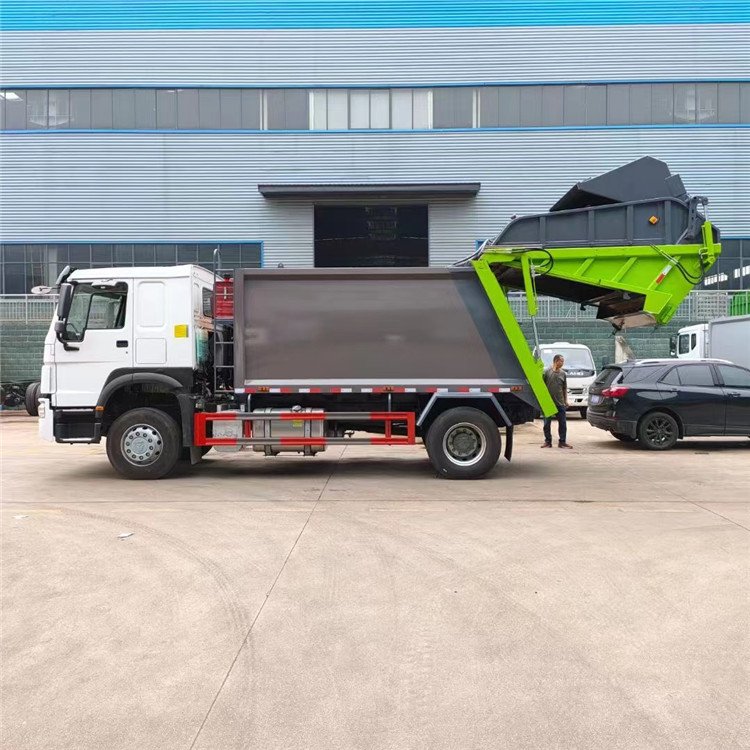

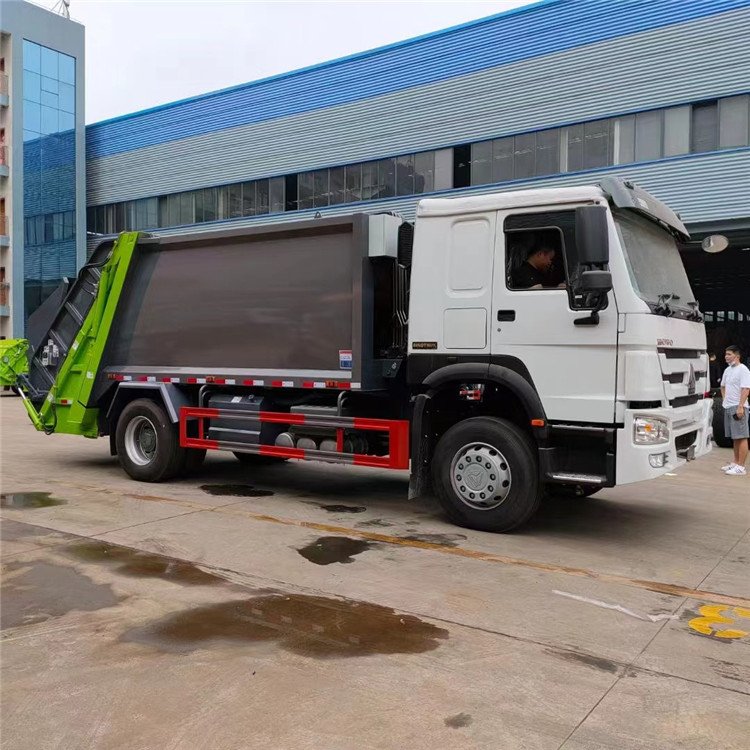

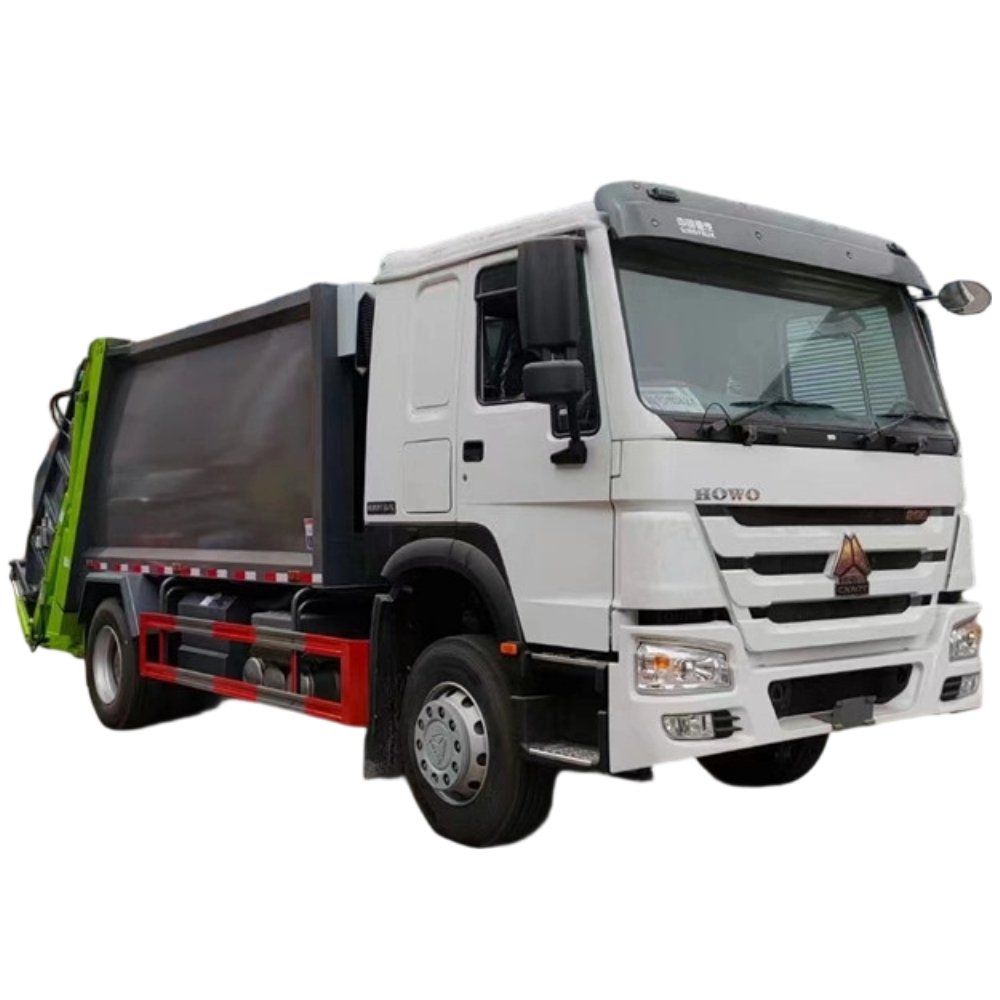

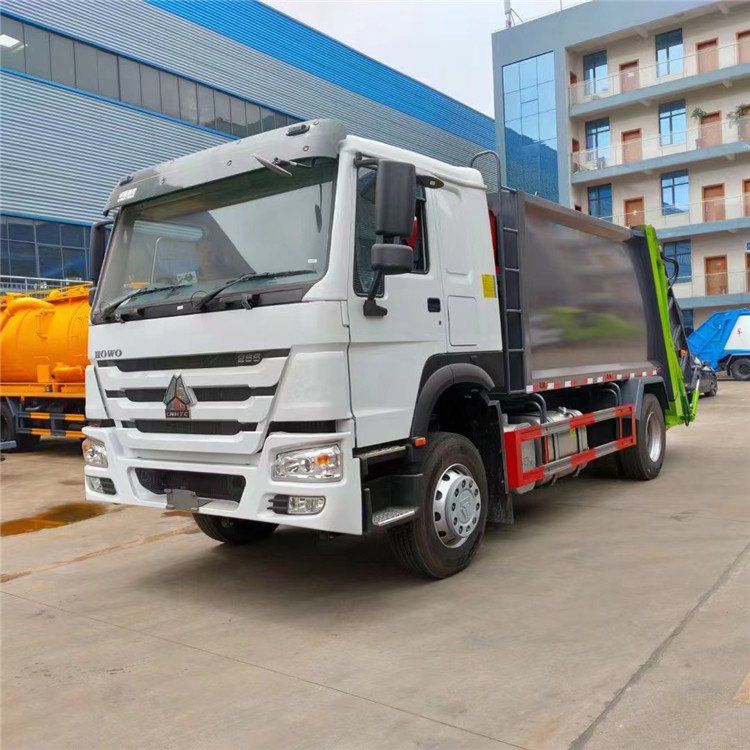

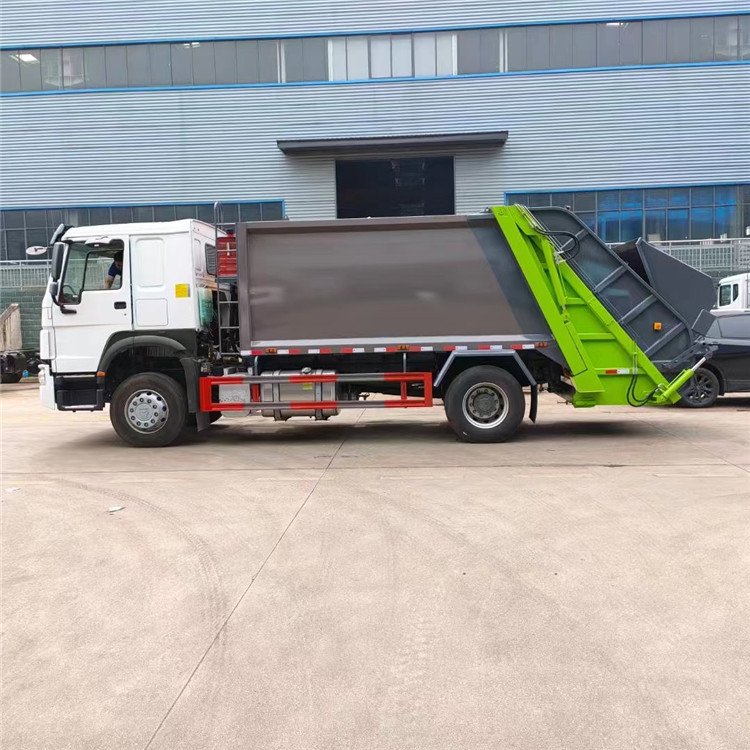

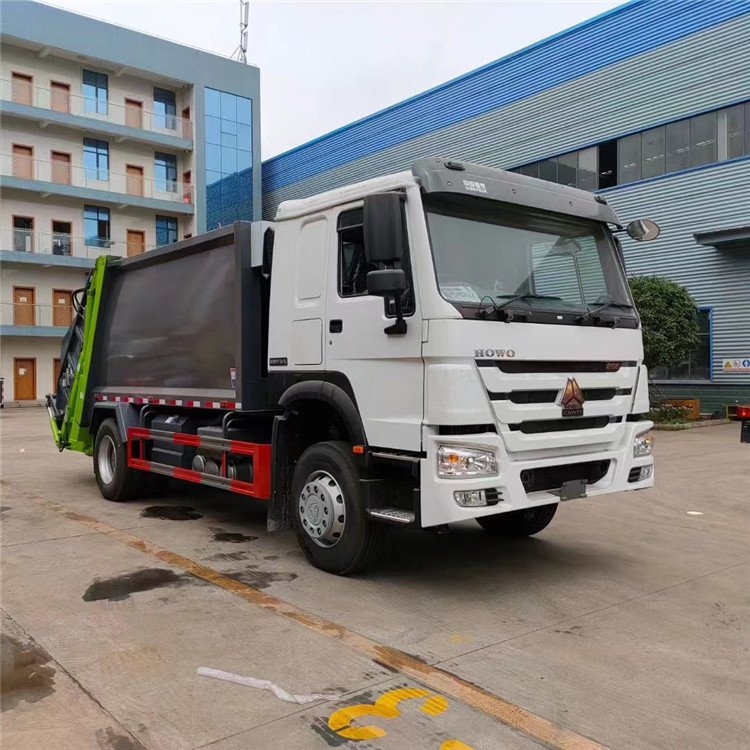

Real pictures for Sinotruk HOWO 10 wheels RHD 16CBM 16M3 Garbage Compactor Truck Compressed.
1–Rubbish Compactor Truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck,
roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck,
rear load garbage truck and so on.
2–Easy Full Automatic Operation: computer control system for loading and unloading operations.
3–One Person Operation: Reducing sanitation working, greatly improves the working environment.
4–Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5–Capacity: option for 3-20m3 garbage truck.
6–Steering wheel: both left and right hand drive,meet the needs of different countries.
7–Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage truck.
