Description
Chassis configuration:

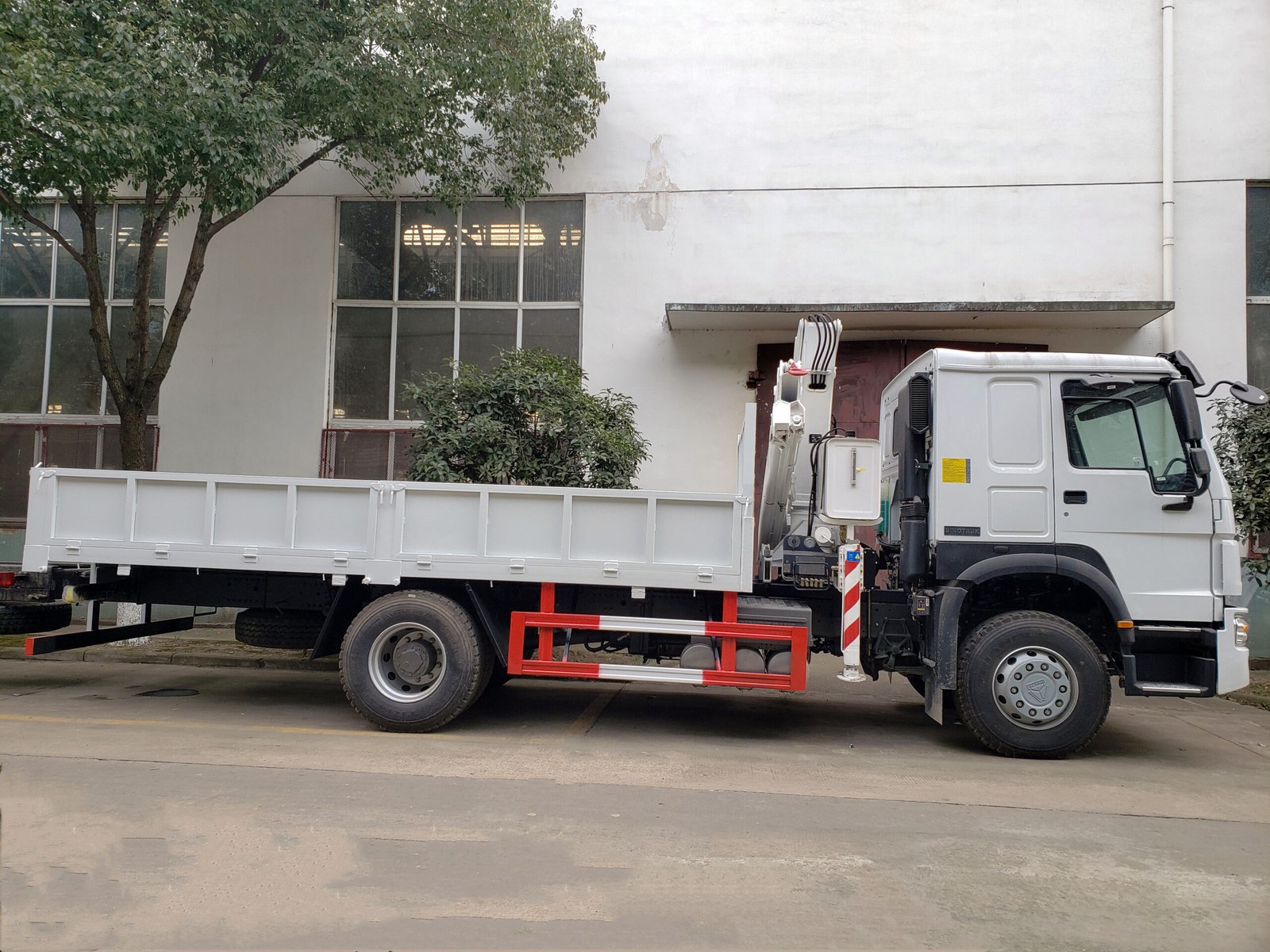

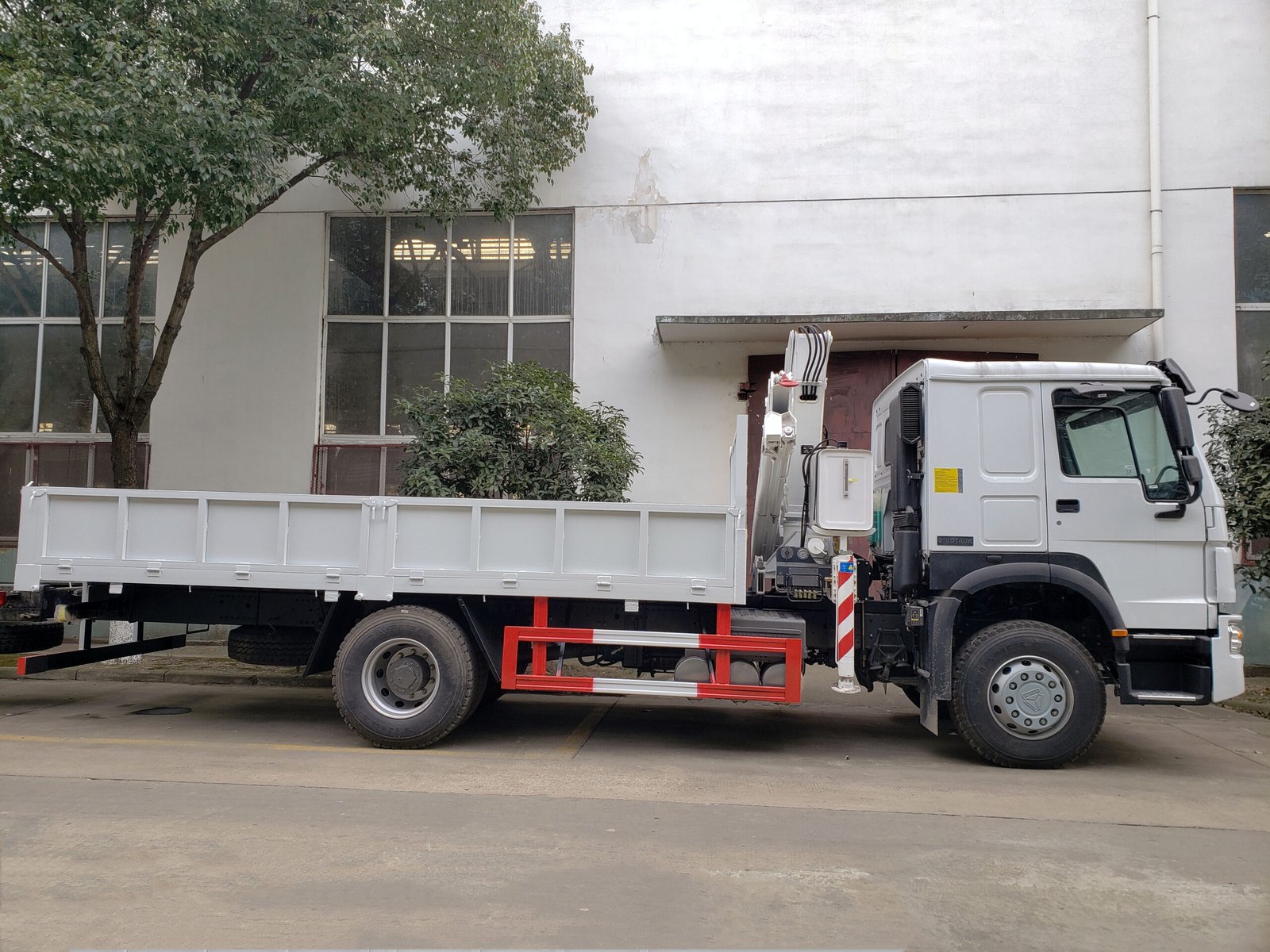

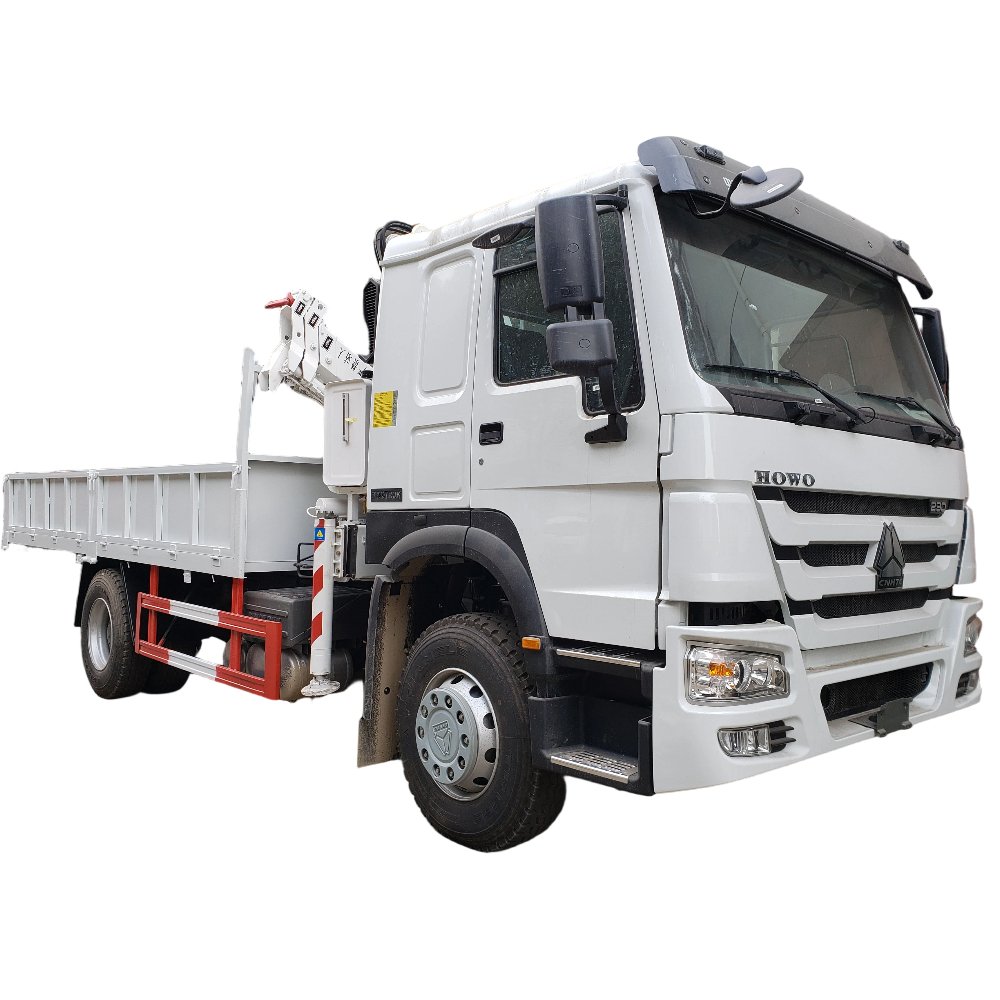

Sinotruk HOWO 4X2 truck-mounted crane chassis, truck’s color can be customized
Euro2 emission standard, Weichai 290 horsepower, HW10-speed gearbox
front axle 7 tons, rear axle 16 tons, 8+5/300 Special frame, 80R22.5 tubeless tire, with air conditioner, air brake system.

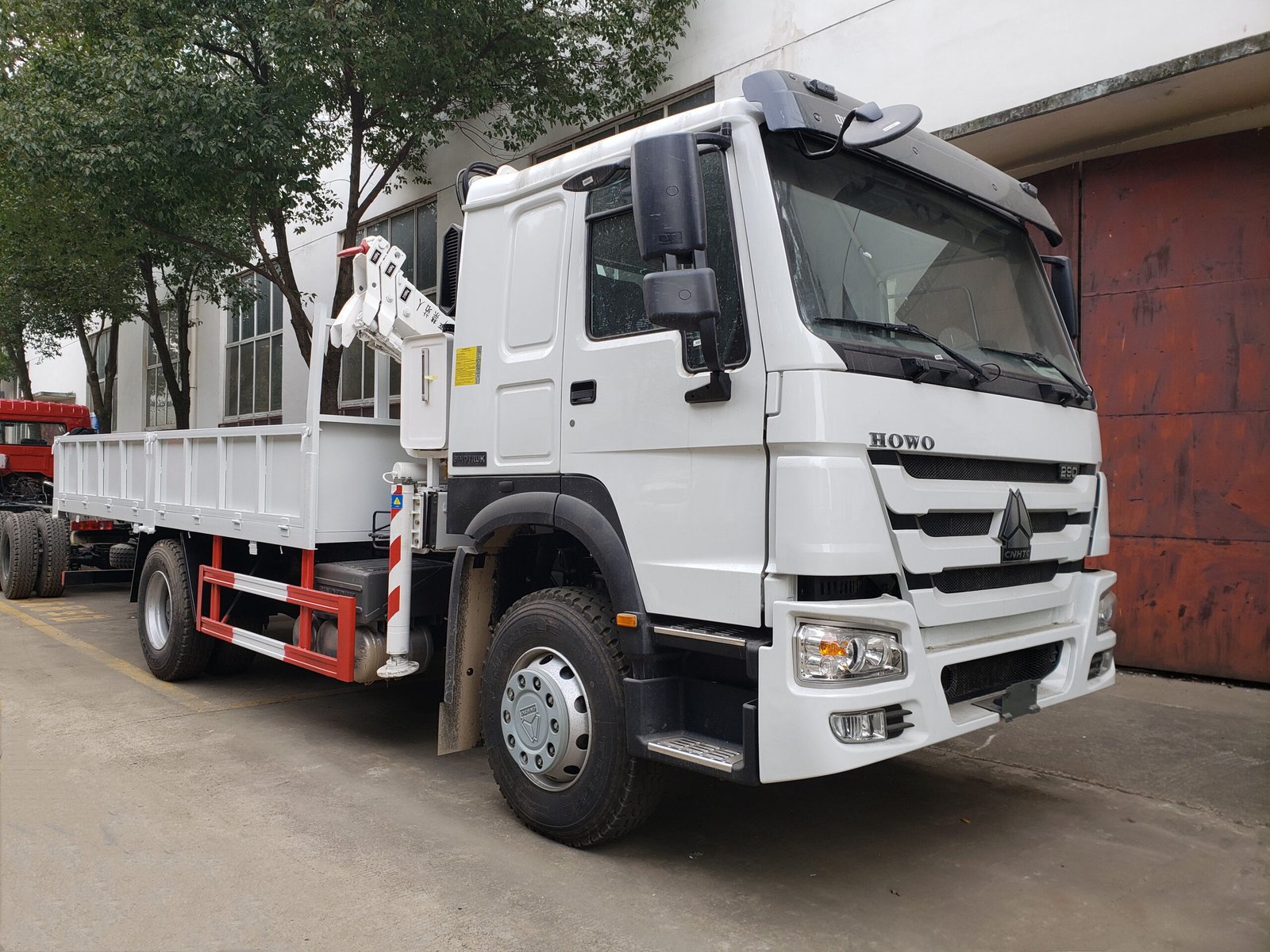

Howo new front-facing cabin which is comfortable and convenient.
The steering wheel can be adjusted forward and backward, up and down.
Seat with airbag shock absorption, electric glass, original air conditioner, extra-wide sleeper
The cabin is shockproof, and has excellent anti-noise effection.
| General Technical Parameters | ||||
| Overall Dimension | 9000*2500*3540 (mm) | |||
| Gross Vehicle Weight | 15800kg | |||
| Curb Weight | 8935kg | |||
| Chassis Specification | ||||
| Chassis Parameters | Chassis Brand |
According to customer requirements
|
||
| Cabin | Left Hand Driving, Remote front door lock, with A/C | |||
| Engine | Model | 6 Cylinders | ||
| Power | 290HP | |||
| Emission standard | EURO2 | |||
| Displacement | 9.726L | |||
| Fuel type | Diesel | |||
| Gearbox | 10 Forward & 2 Reverse Gear | |||
| Front and Rear Axle load | 7T/16T | |||
| Wheel base | 5000(mm) | |||
| Overhang( Front/Rear) | 1460/2350(mm) | |||
| Angle(Approach/departure) | 20/16(°) | |||
| Brake System | Air Brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 80R22.5, 6 Pieces with 1 Spare Tire | |||
| Maximum speed | 90(km/h) | |||
| Superstructure | ||||
| Working System | Crane | Brand | Chinese Famous Brand | |
| Boom Type |
Folding arm
|
|||
| Max lifting weight | 8,000(kg) | |||
| Max lifting height | 13(m) | |||
| working radius | 10.3(m) | |||
| Rotation angle | 360 degree full rotation | |||
| Crane Weight | 3315kg | ||
| Installation space | 1150(mm) | ||
| Outrigger | 2 pcs, Front leg | ||

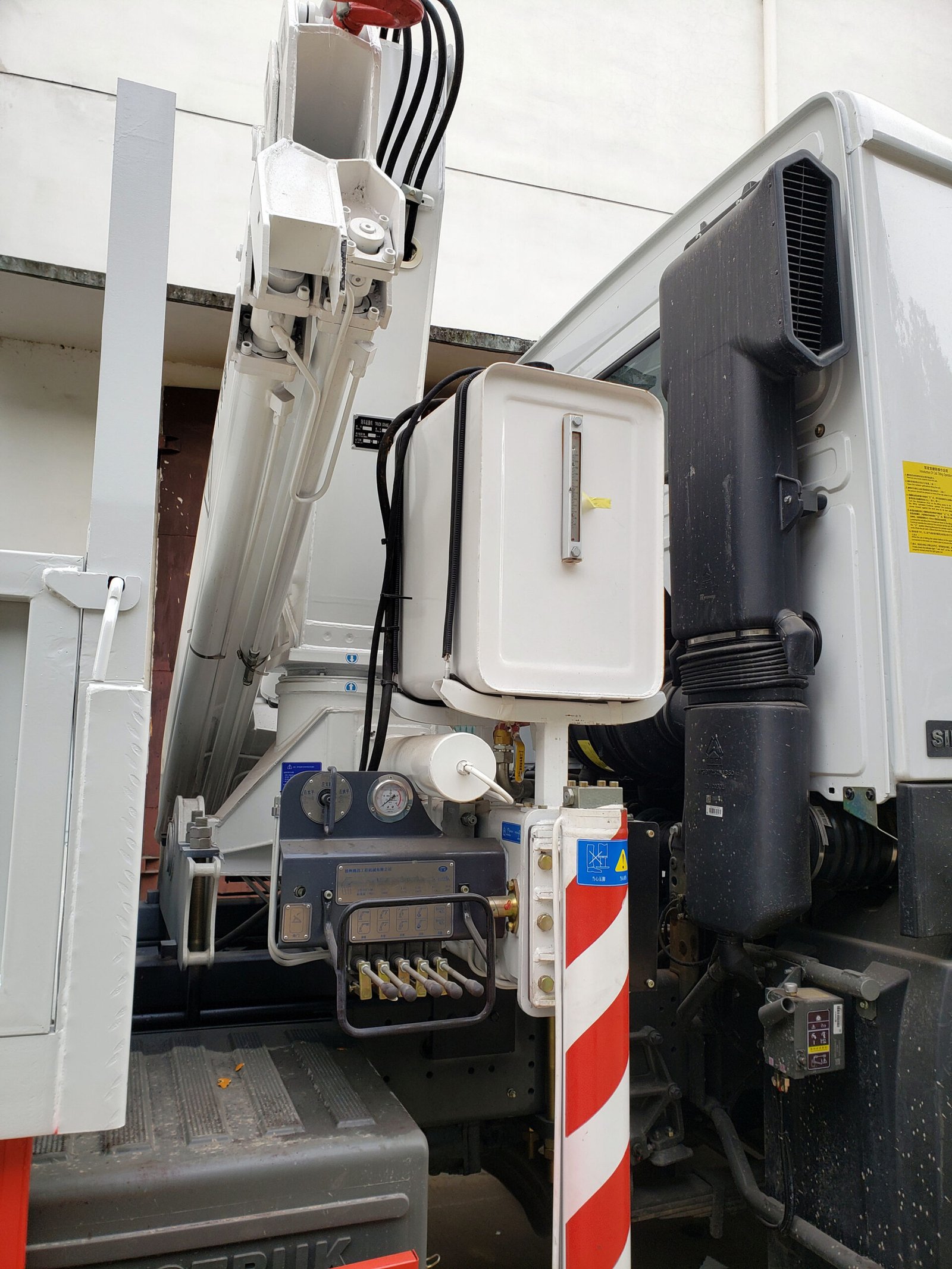

| Operation | Hydraulic control, with Aerial Seat | ||
| Optional Parts | 1. Remote control 2. Rear leg |
||
