Product Description

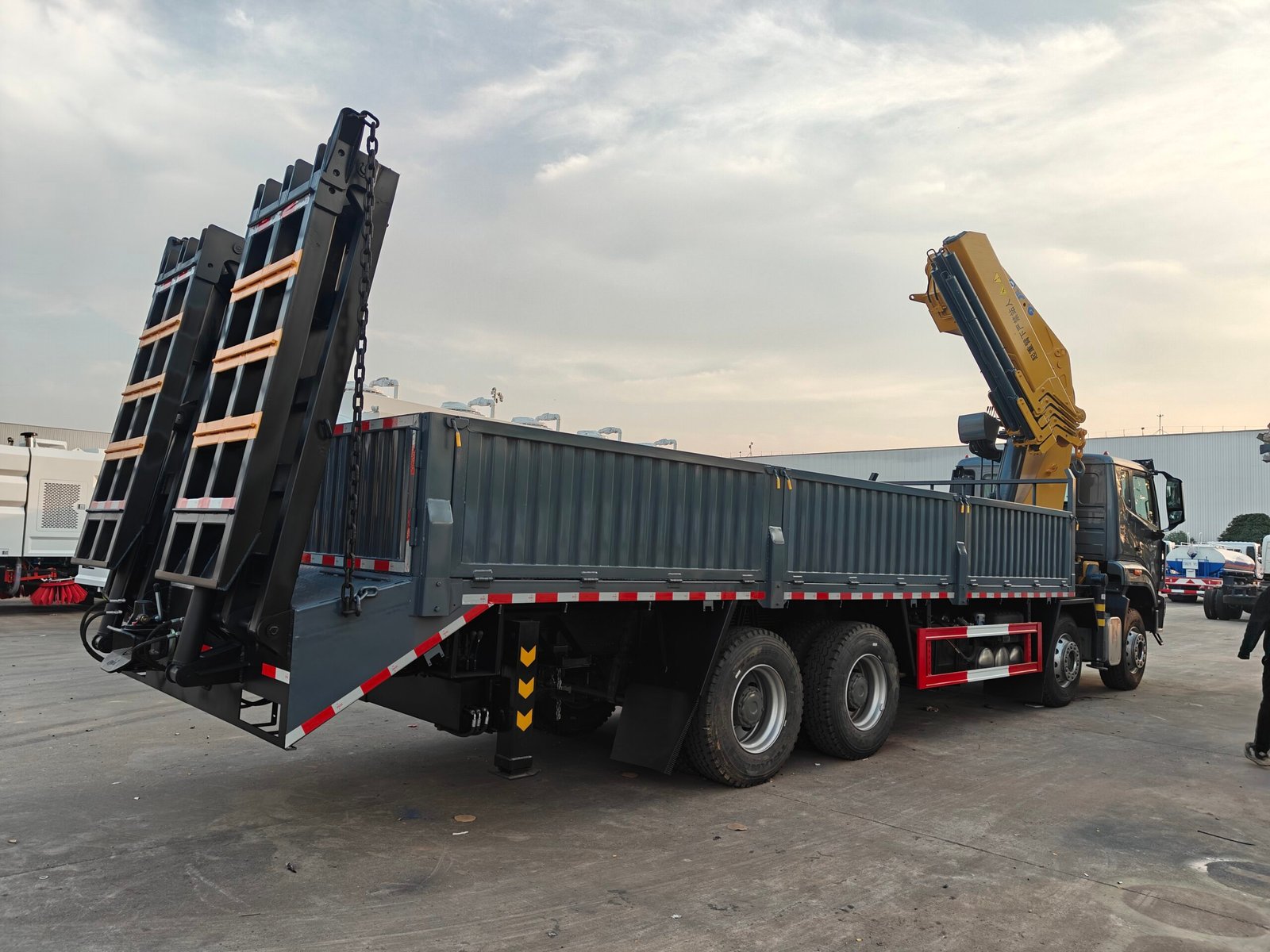

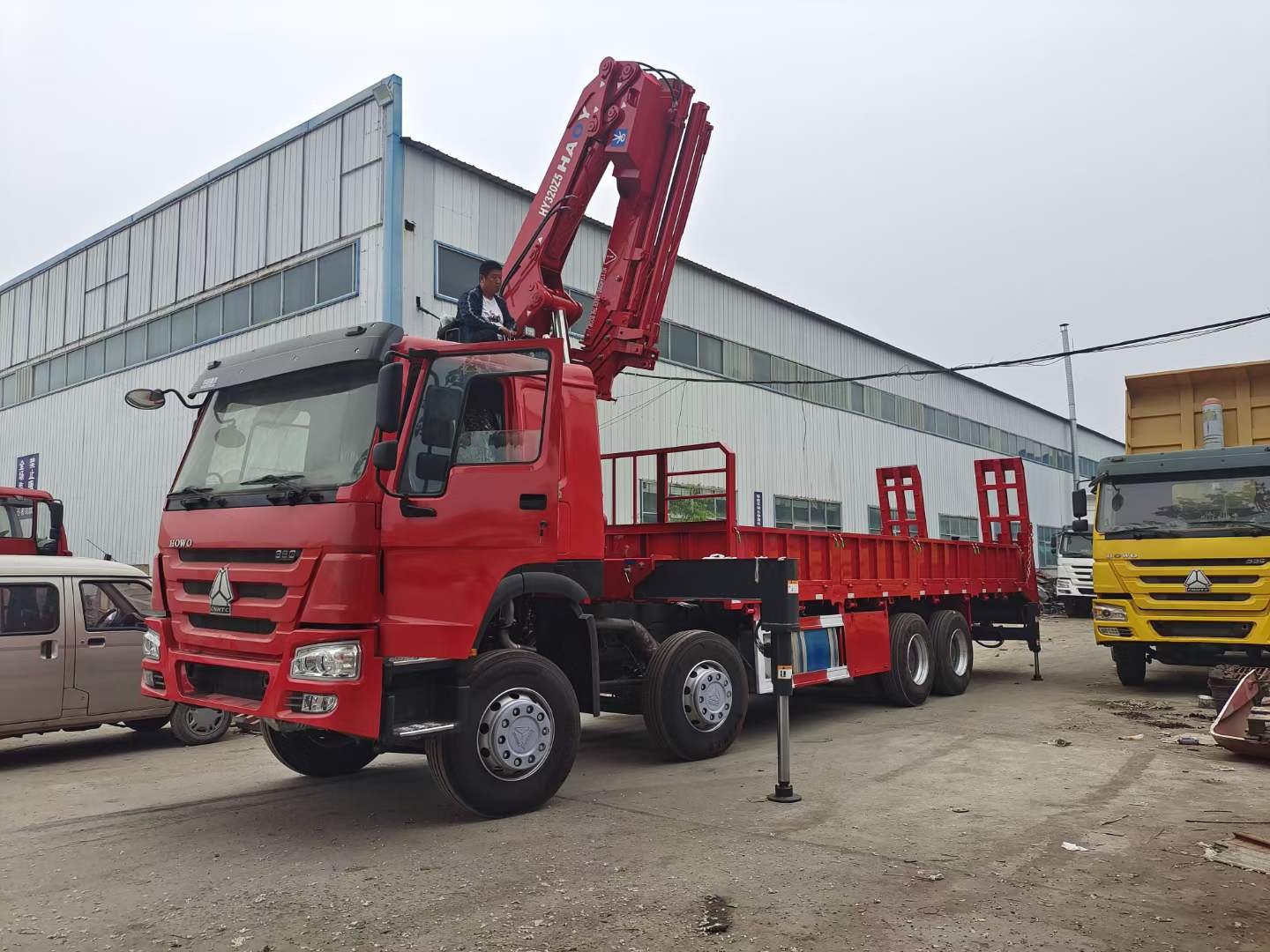

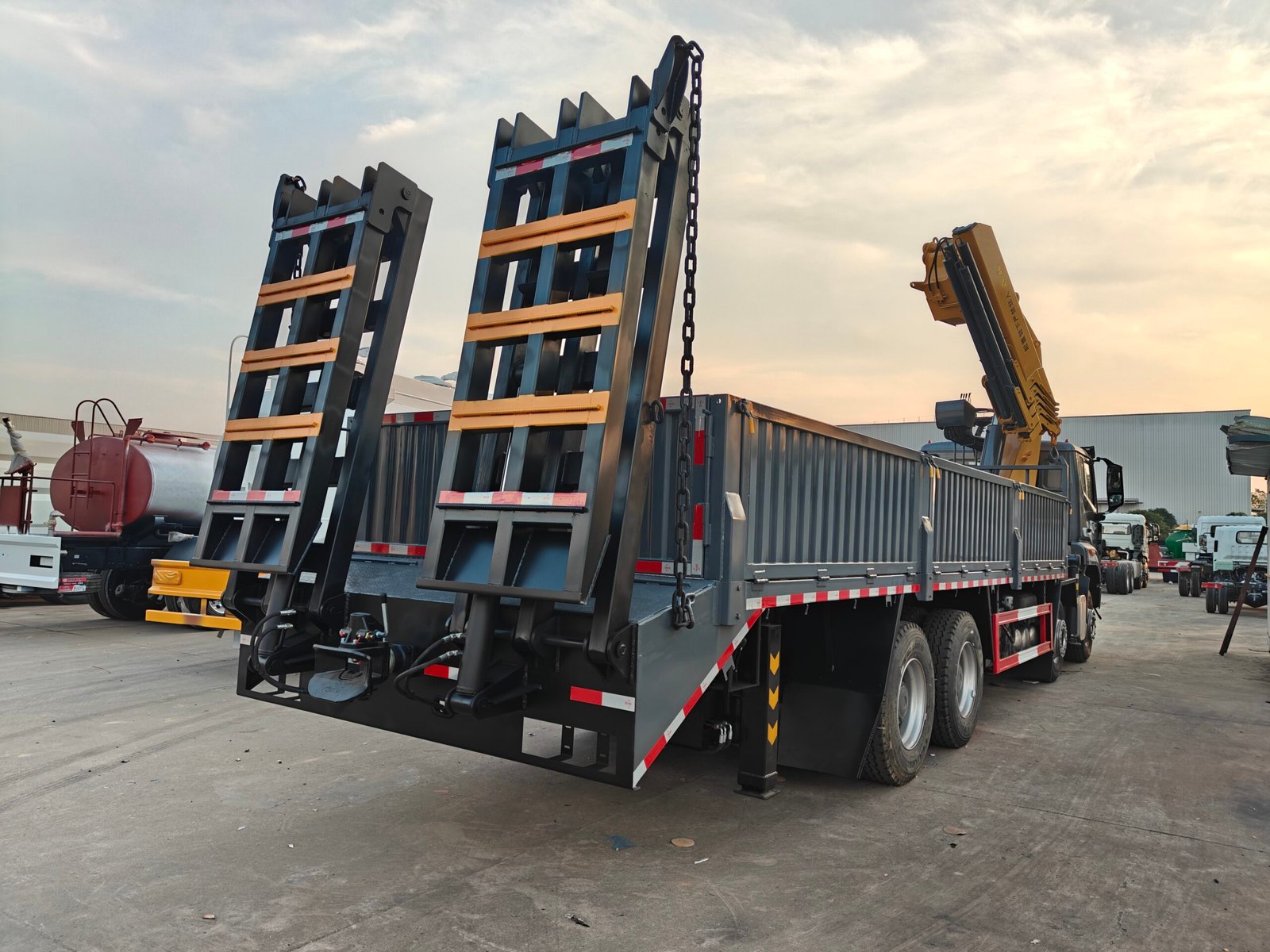

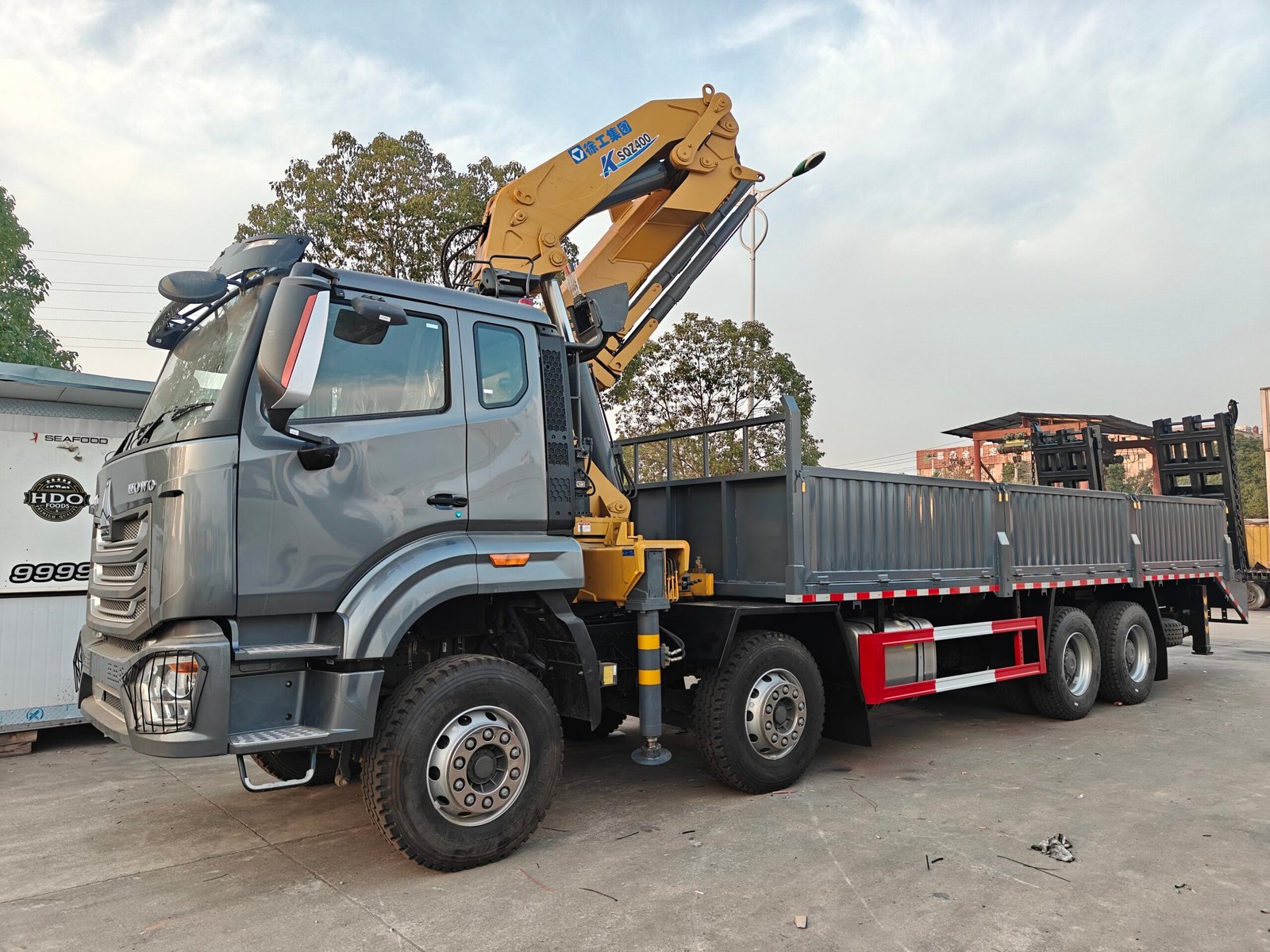

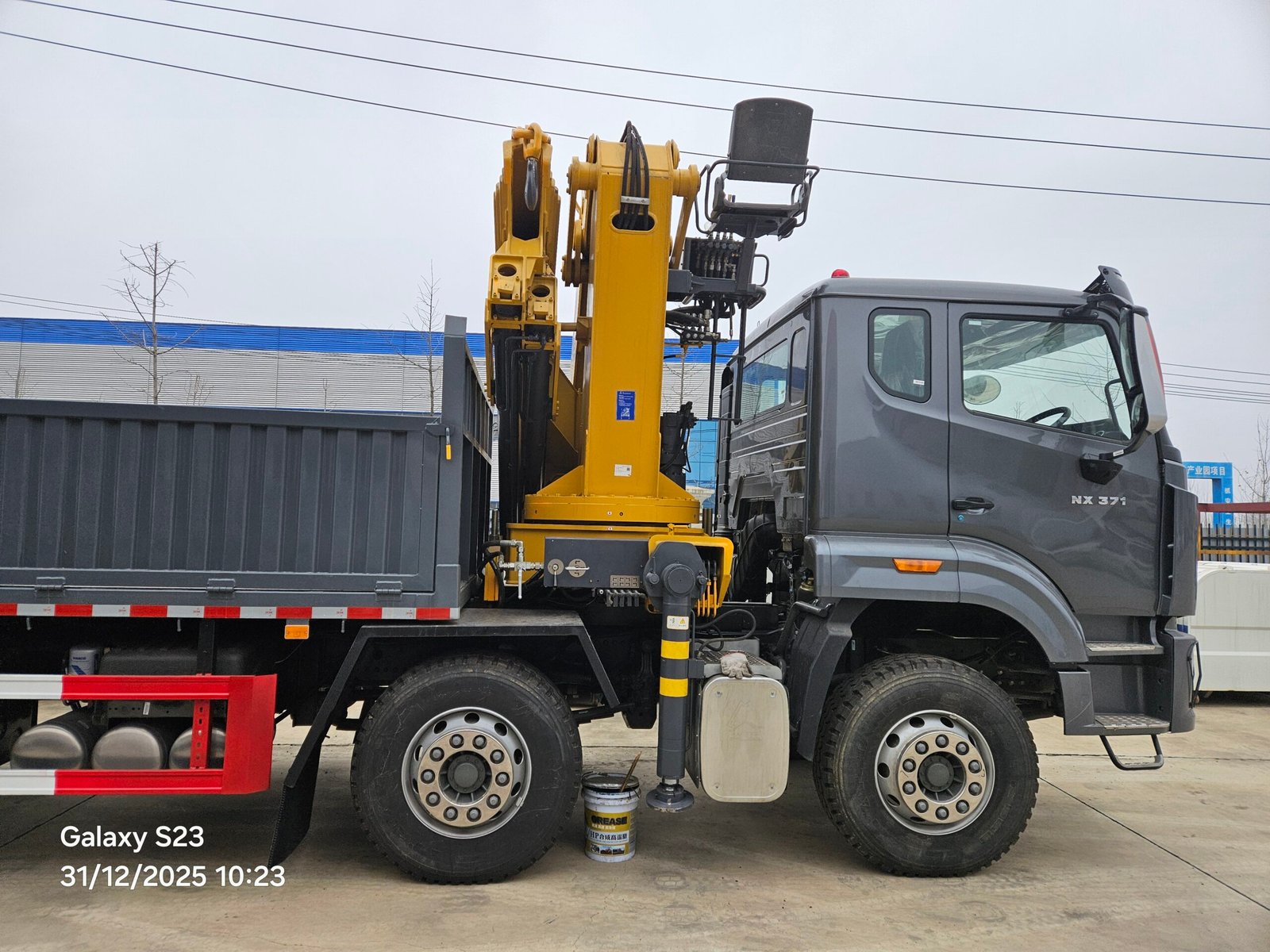

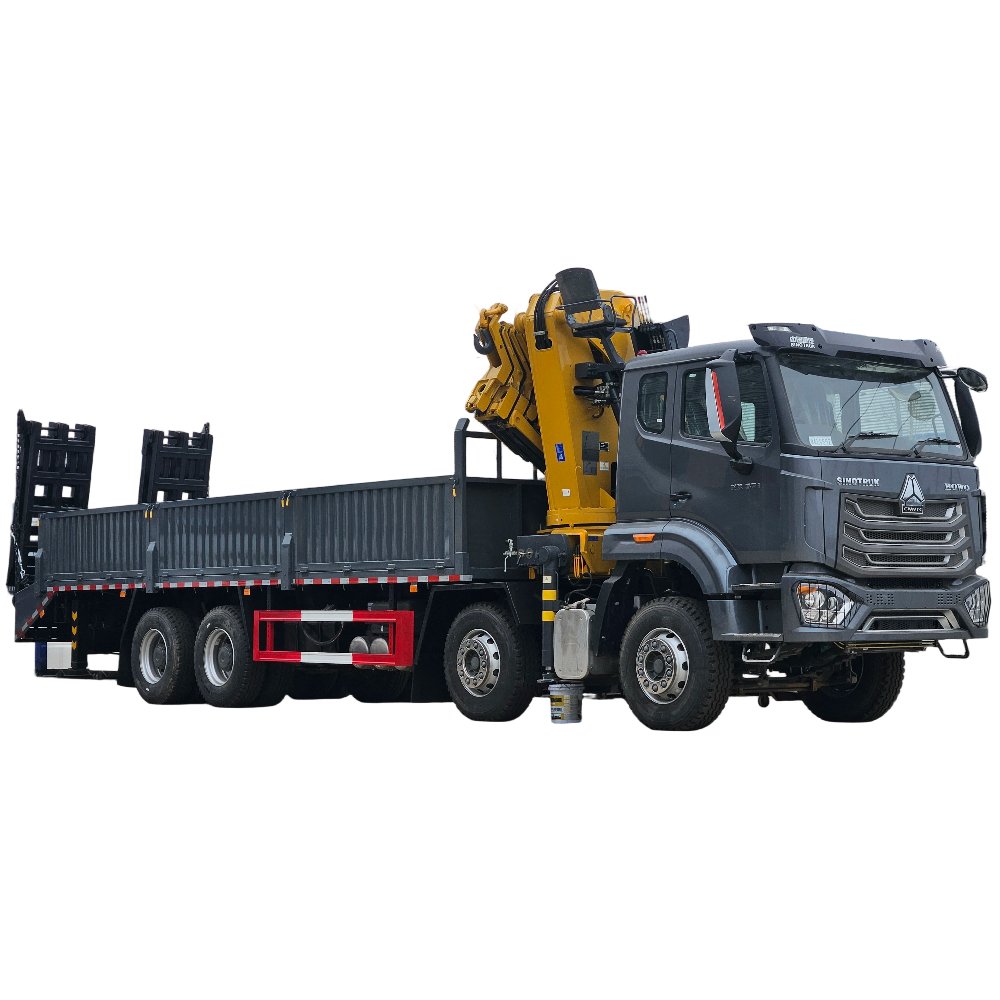

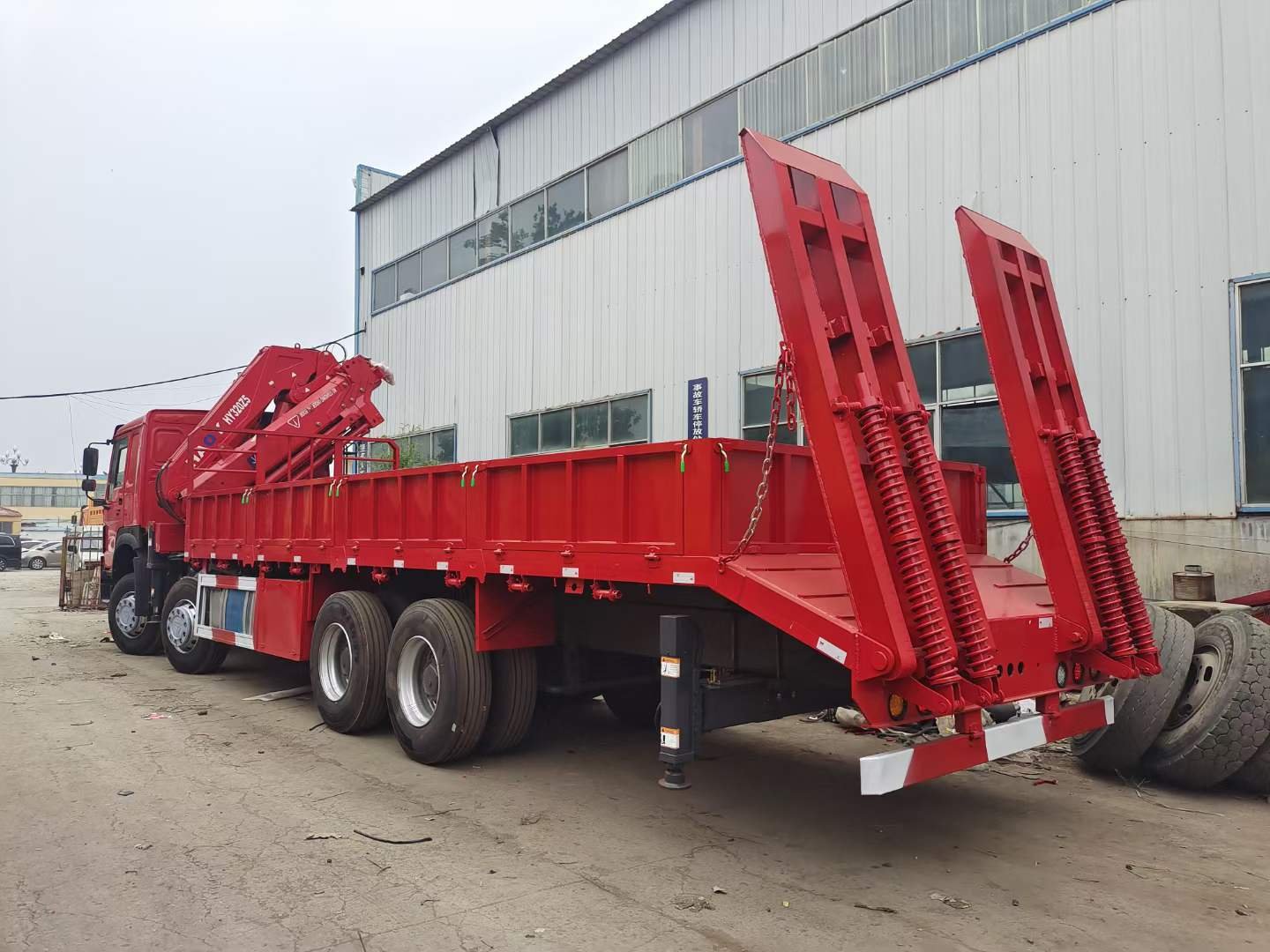

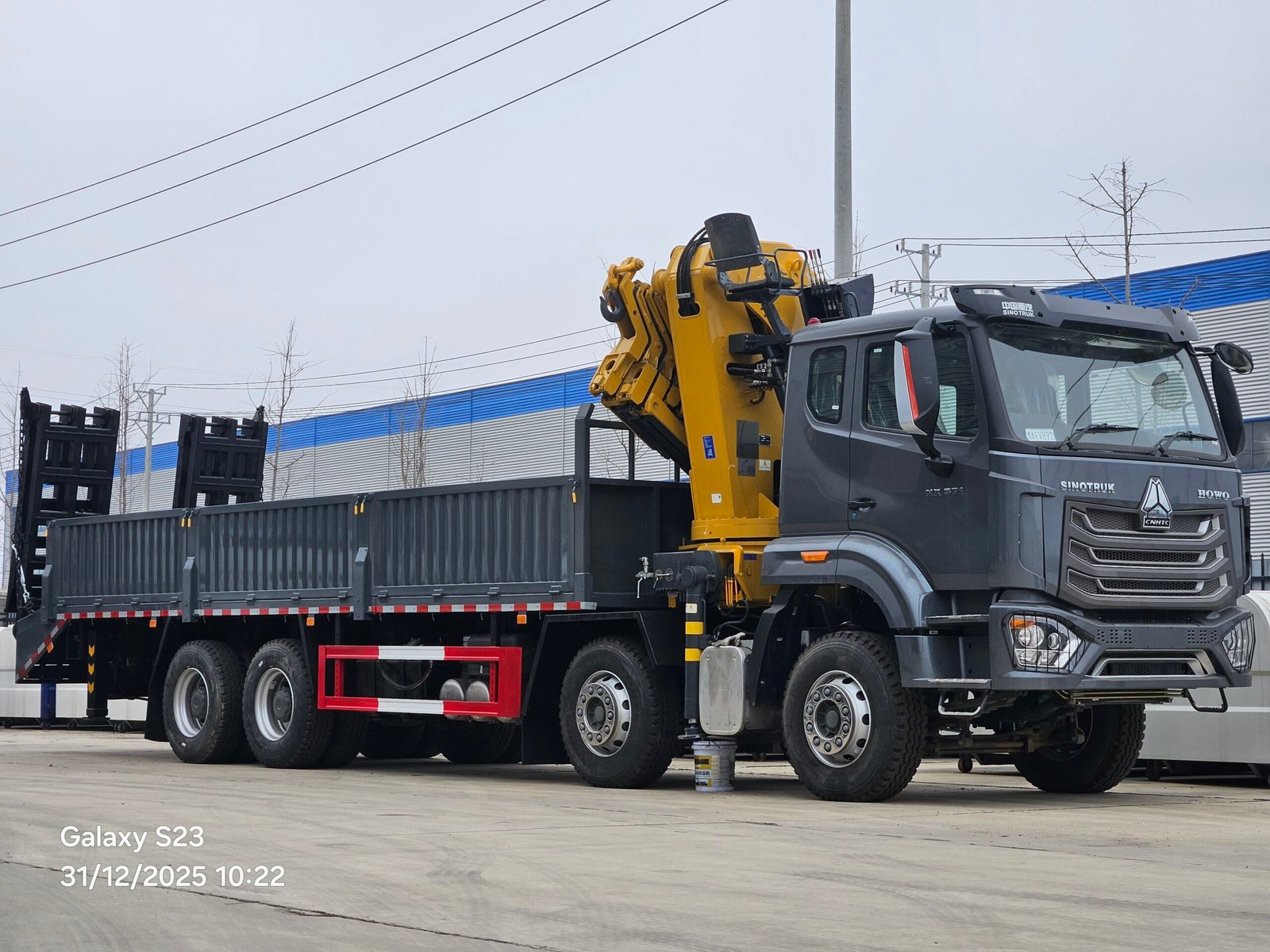

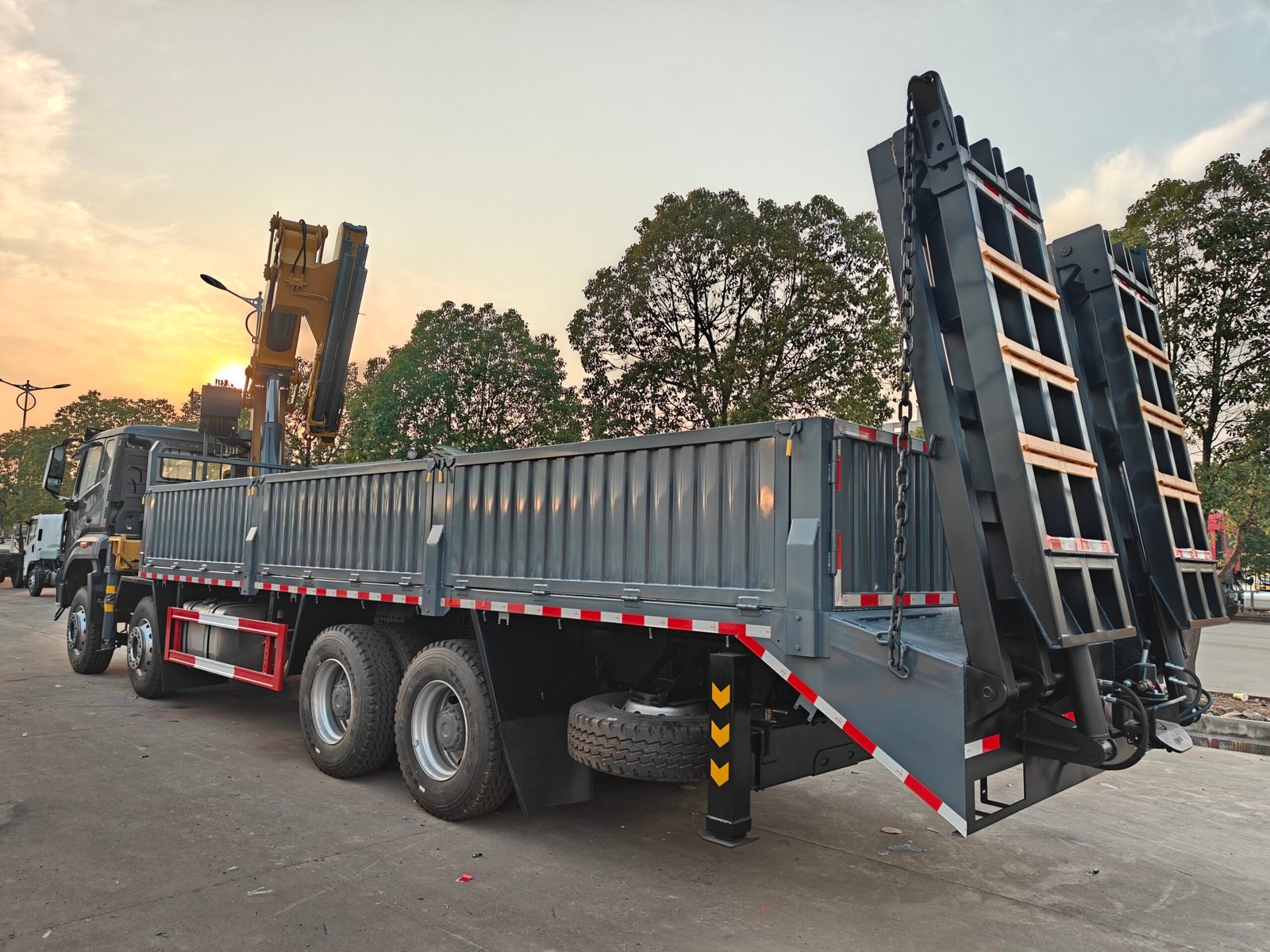

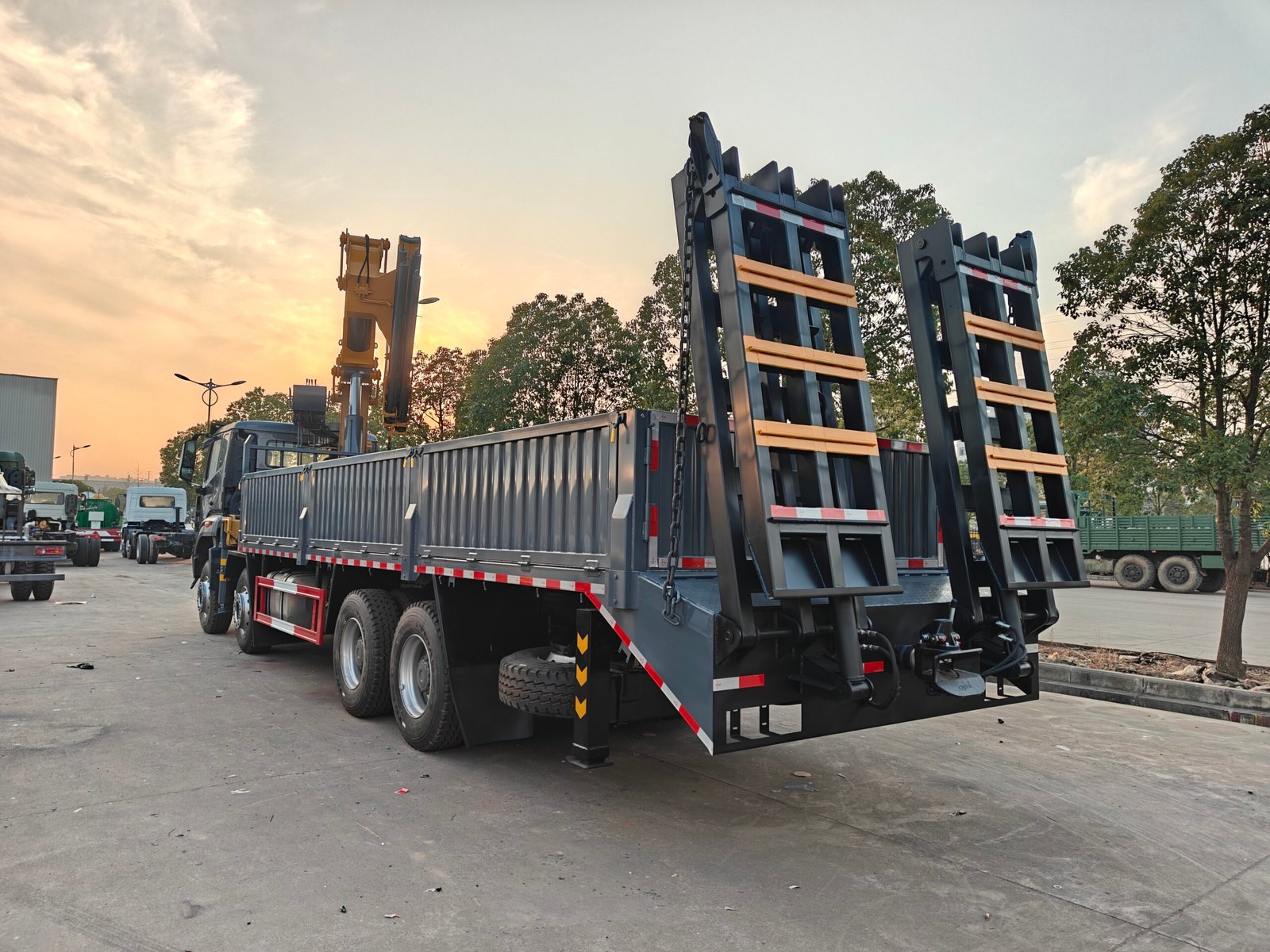

–Truck mounted crane(also called Truck with Crane, Truck Crane) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.
–Truck mounted crane can be divided into various types as follows,
1) according to truck brands, there are SINOTRUK HOWO,mounted crane;
2) according to driving model: 4×2, 4×4, 6X4, 6×6, 8×4, 8×8 and 10×4 Truck mounted crane;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons 50tons 60tons 80tons 100tons 120tons 150tons Truck mounted crane.
4) According to crane type,there are telescopic and knuckle Truck mounted cran.
Feature
–Crane: Palfinger Brand
–Landing leg: Hydraulic control, top quality, easy for operation.
–Storage box: High quality carbon steel Q235.
–Truck chassis: China famous brand with Germany Technology CAMC brand truck chassis.
Specification
| Condition | New condition/Left hand drive/8X4 | |||
| Chassis | Brand | HOWO | ||
| Curb weight(kg) | 11590 kg | |||
| Wheelbase(mm) | 2150+4600+1350 mm | |||
| Dimensions(mm) | 12000×2500×3850 mm | |||
| Overhang (front/rear) (mm) | 1500/2250 mm | |||
| Approach/Departure angle(°) | 14/12 | |||
| Axle Load(kg) | 9000/9000/16000/16000 kg | |||
| Max. driving speed(km/h) | 80 km/h | |||
| Clutch | Reinforced diaphragm clutch | |||
| Brakes | Hydraulic oil brake | |||
| Steering Gear | Power steering, hydraulic steering with power assistance | |||
| Tire | Number | 6pcs with one spare tire | ||
| Specifications | 12.00R20 | |||
| Transmission | 10 Forwards and 2 Reverses | |||
| Cabin | It can accommodate three people, With Air conditioner | |||
| Engine | Brand | CAMC | ||
| Displacement(ml) | 9726 ml | |||
| Power(kw)/Horsepower/(HP) | 385 HP | |||
| Emission standard | Euro 3 | |||
| Upper | ||||
| Crane | Boom Type | Straight type | ||
| Material | Carbon Steel | |||
| Brand | Palfinger | |||
| Max. Lifting Weight(tons) | 16.5 tons | |||
| Extendable boom section | 5 | |||
| Working Platform | 360°turning(left or right), H-shape legs 360° | |||
