Description
What is the volume capacity of the garbage tanker that we can manufacture?
> As the professional and famous special vehicle manufacturer in China, the volume capacity of the garbage tank that we can manufacture is: 5cbm, 6cbm, 8cbm, 10cbm, 12cbm, 14cbm, 16cbm, 18cbm, 20cbm, 22cbm.
How many rear designs of our garbage compactor truck do we have?
> The design of the rear rolling device can be customized according to your garbage bin.
> The standard container can match with 120L/240L/660L bin or other garbage bin.
> The rear rolling device can also be equipped with tri-angle container, sealing large container, swing arm container, etc.
Can you quote my local exterior design? I used to purchase in Europe and Türkiye.
I hope to buy more affordable vehicles in China with the same design language??
> We support customization and provide you with a complete set of drawings for the solution,
| Sinotruk HOWO 10 Wheel 22m3 22cbm 22,000L Rear Loader Trash Compressor Truck 20T Refuse Collection Garbage Compression Vehicle Waste Disposal Compactor Truck | |
| Main specification | |
| Model Name | Sinotruk HOWO 6×4 22cbm compactor garbage truck 20T |
| Driving Type | 6×4, left hand drive |
| Weights | |
| Payload(kg) | 20tons |
| G.W(kg) | 32980KG |
| Dimensions | |
| Wheelbase(mm) | 4600+1350 |
| Overall Dimension(mm) | 10250x2500x3400 |
| Cabinet | |
| Cab | 2-3 passengers, Left hand drive |
| Standard configuration | A/C (Optional) |
| Engine | |
| Engine model | WP12S400E201(4000HP) |
| Emission standard | Euro III |
| Engine type | 4 stroke water-cooled, turbo-charged, Inter-cooling, diesel engine |
| No. of cylinders | straight-6 cylinders |
| Displacement(L) | 11.59L |
| Max output(Kw) | 294kw |
| Transmission | Manual, HOWO 12 forward gears and 2 reverse gears |
| Axle | |
| Front axle | 9500kg |
| Rear axle | 16000kg x 2 |
| Tire | |
| Tire specification | 12.00R20 standard tire |
| Tire quantity | 10 tires+1 spare tire |
| Other Specification | |
| Volume Capacity of the Tank | 22m3 |
| Tank Material | T430 |
| Material Thickness of the Tank Body | Side 5mm, bottom 5mm |
| Sewage tanker | 200L |
| Loading time | Approx.30-40S |
| Unloading time | Approx.40-50S |
| Hydraulic system pressure | Approx.16Mpa |

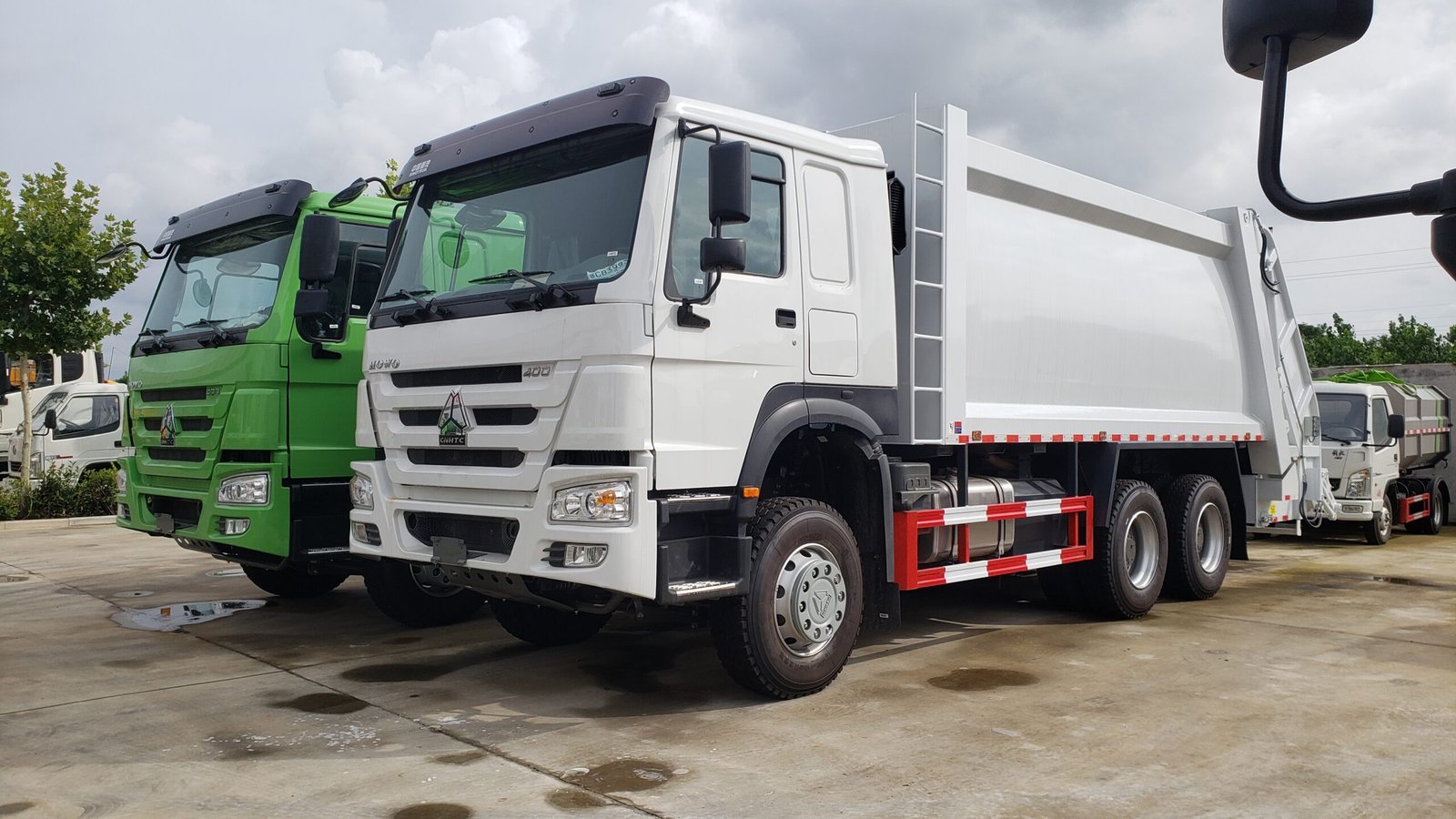

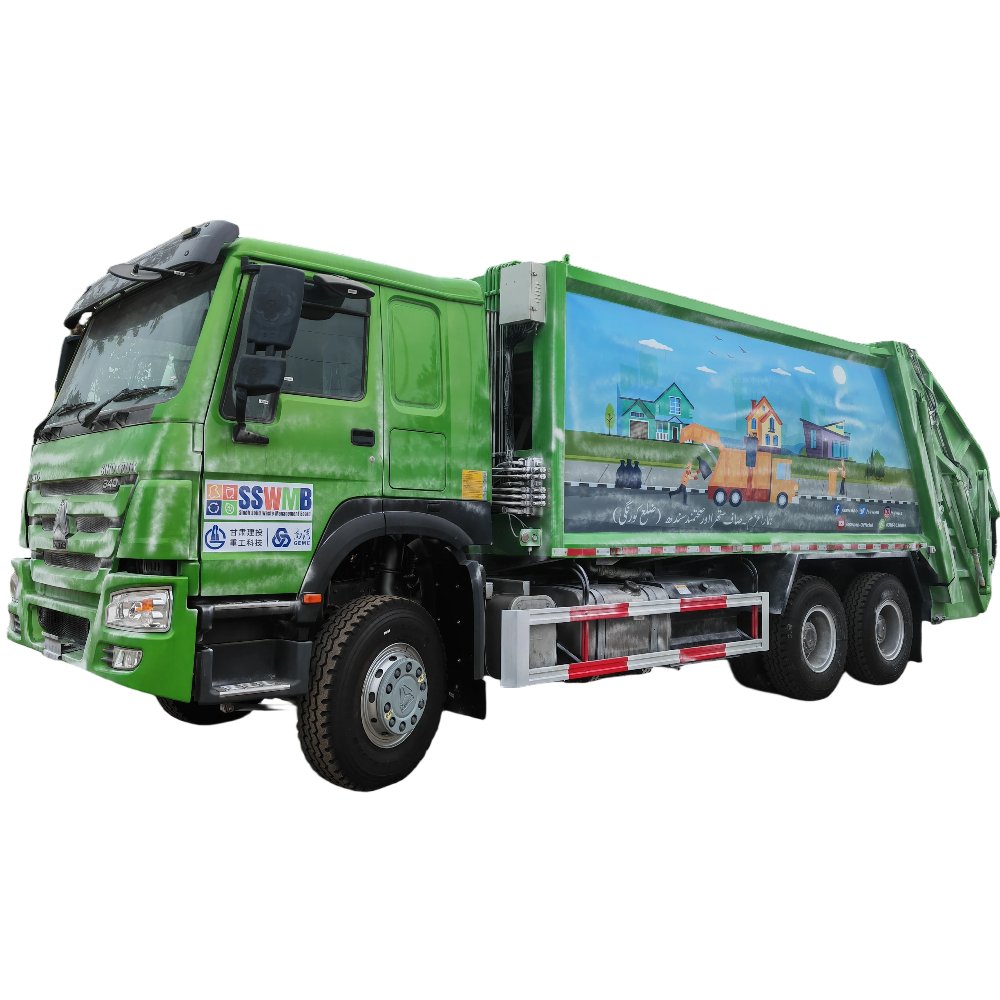

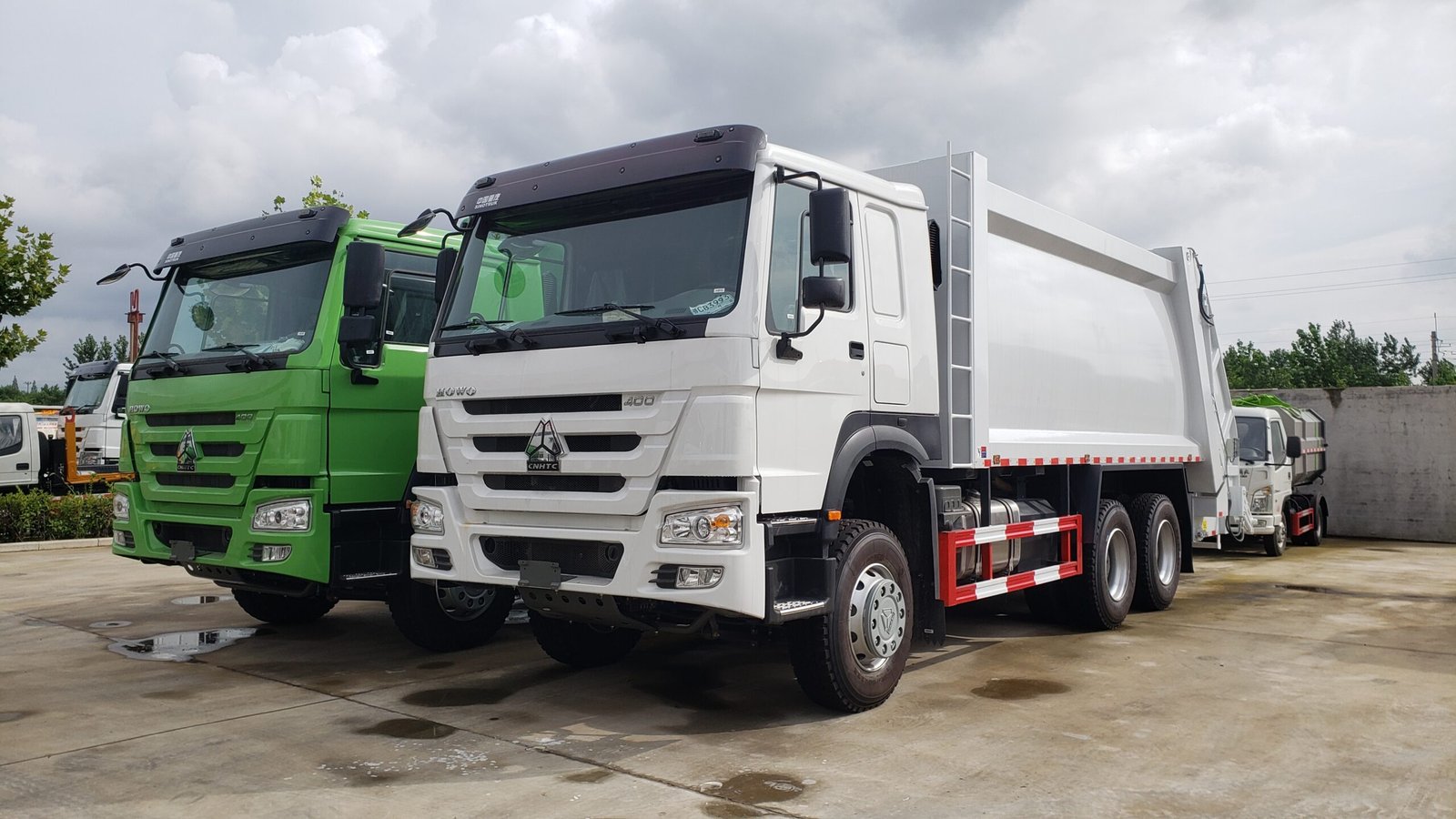

Sinotruk HOWO 10 Wheeler 19m3 22cbm 22,000L Garbage Compressor Truck
We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
