Description

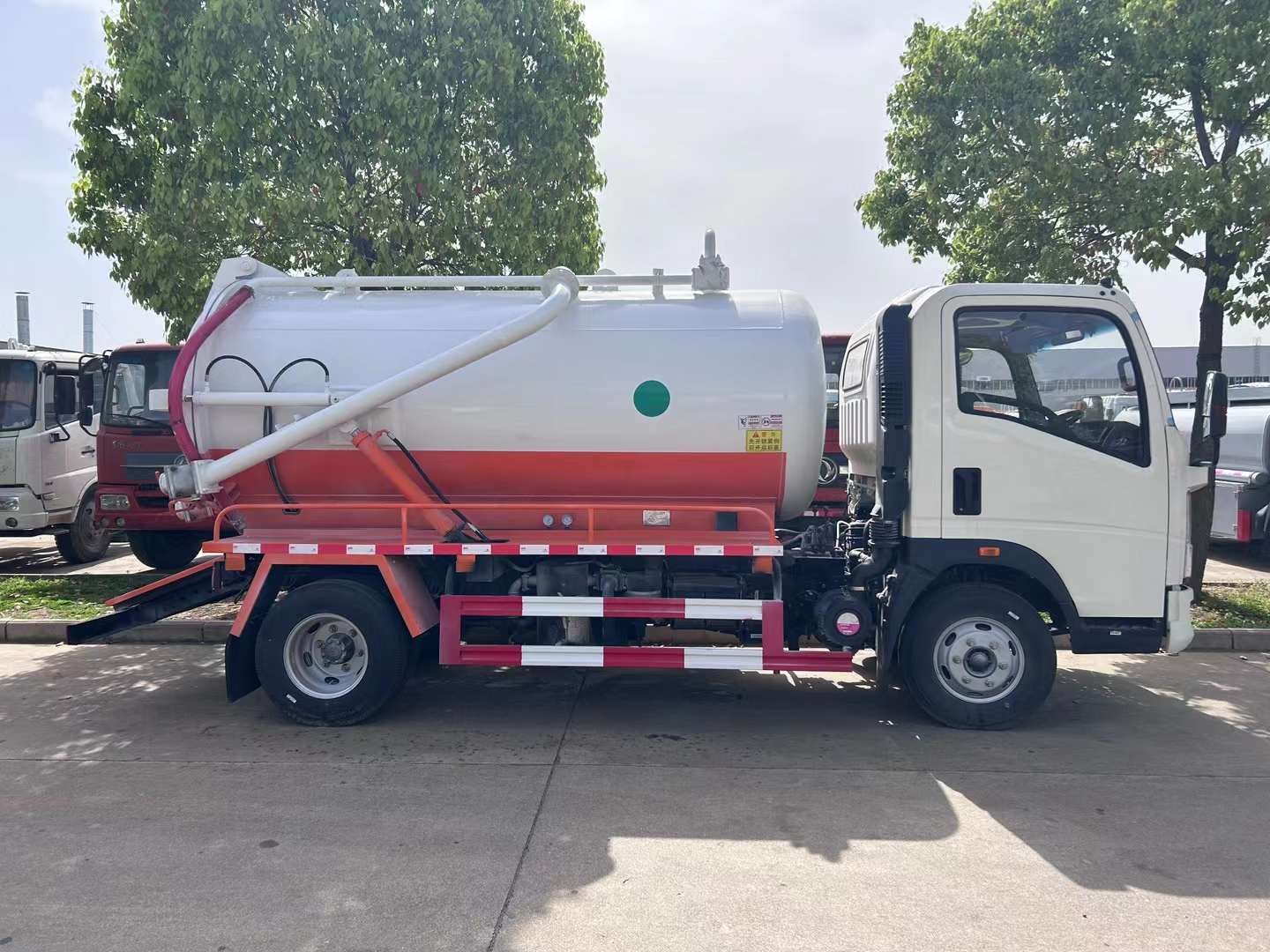

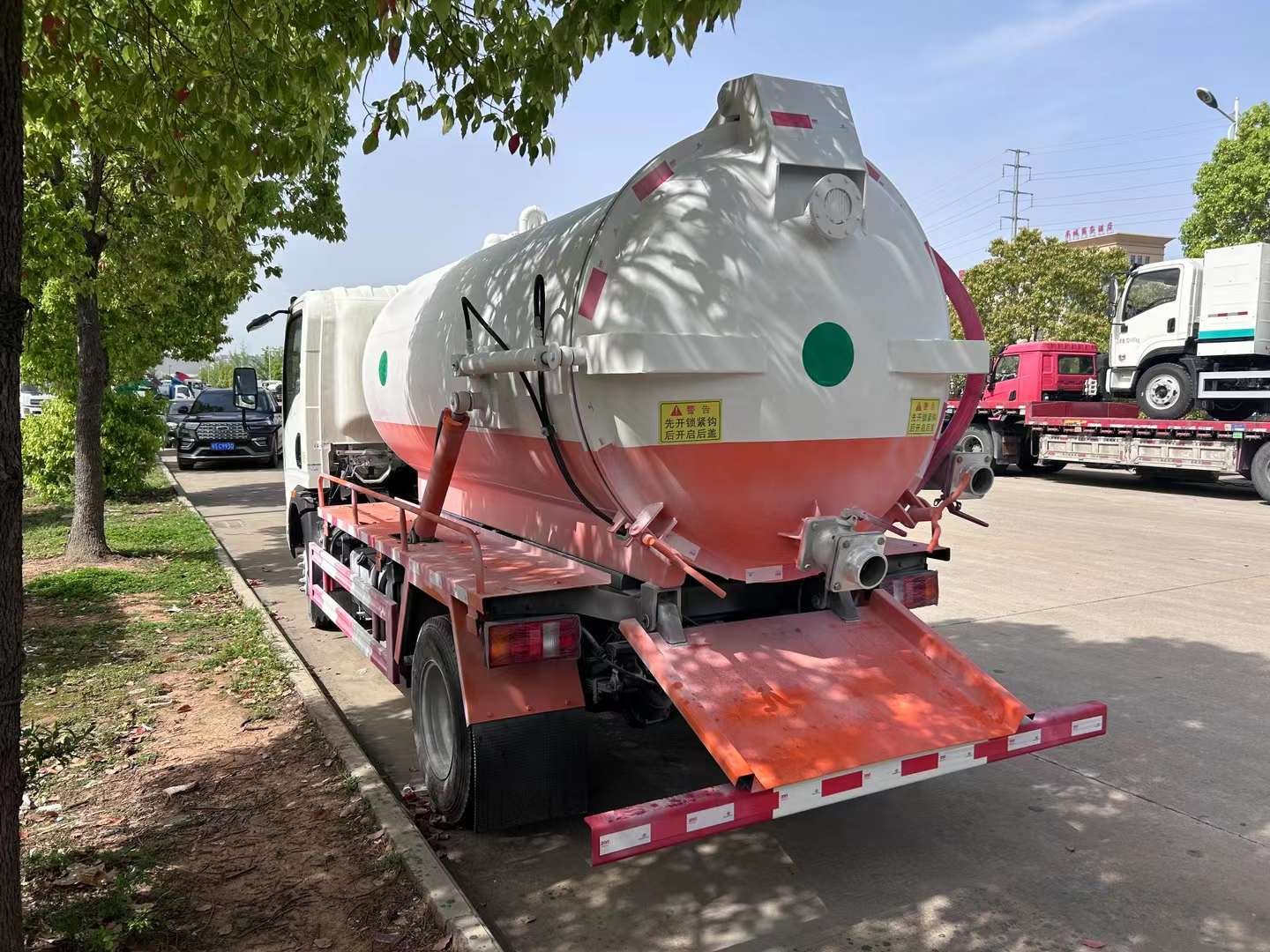

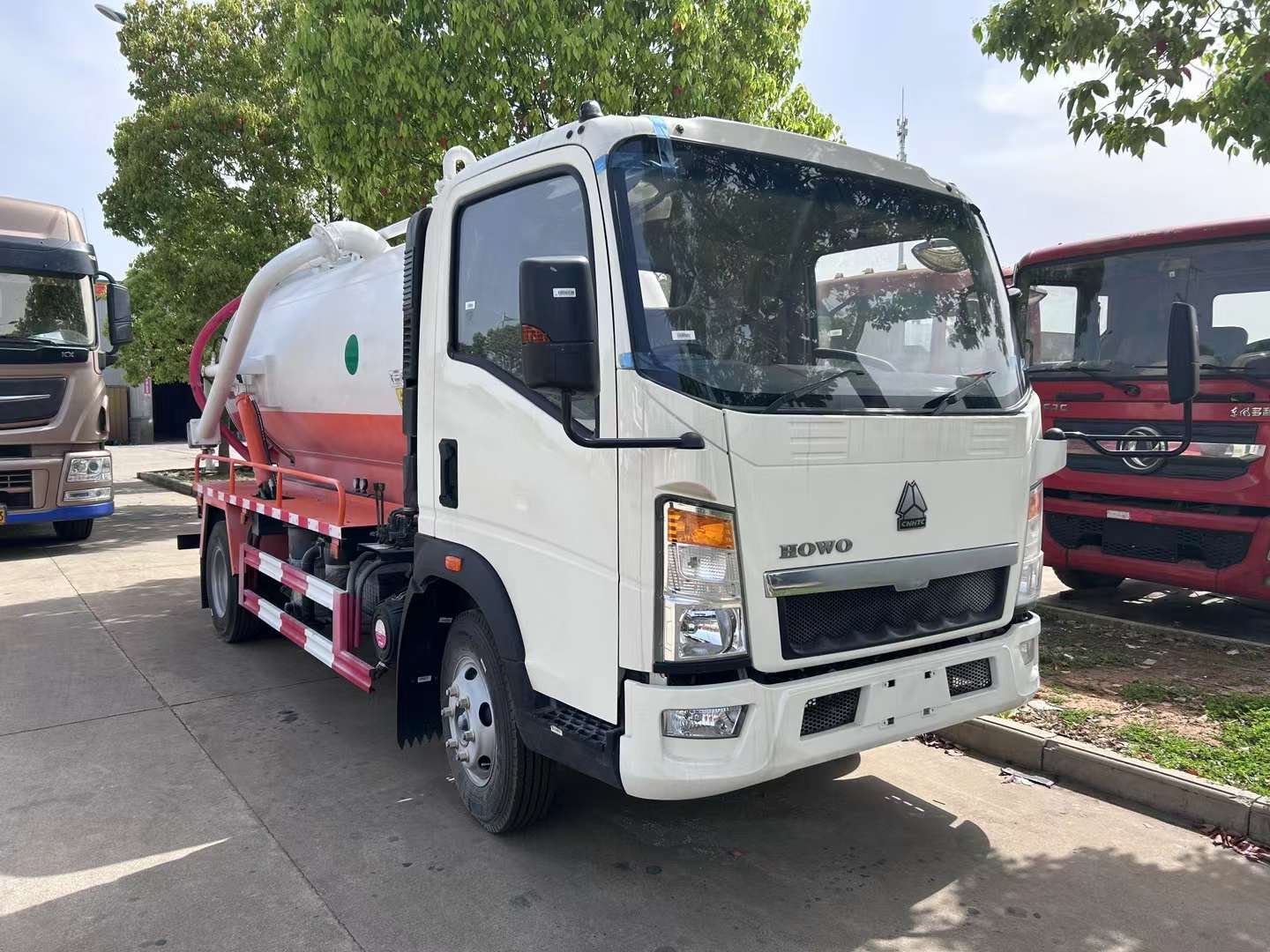

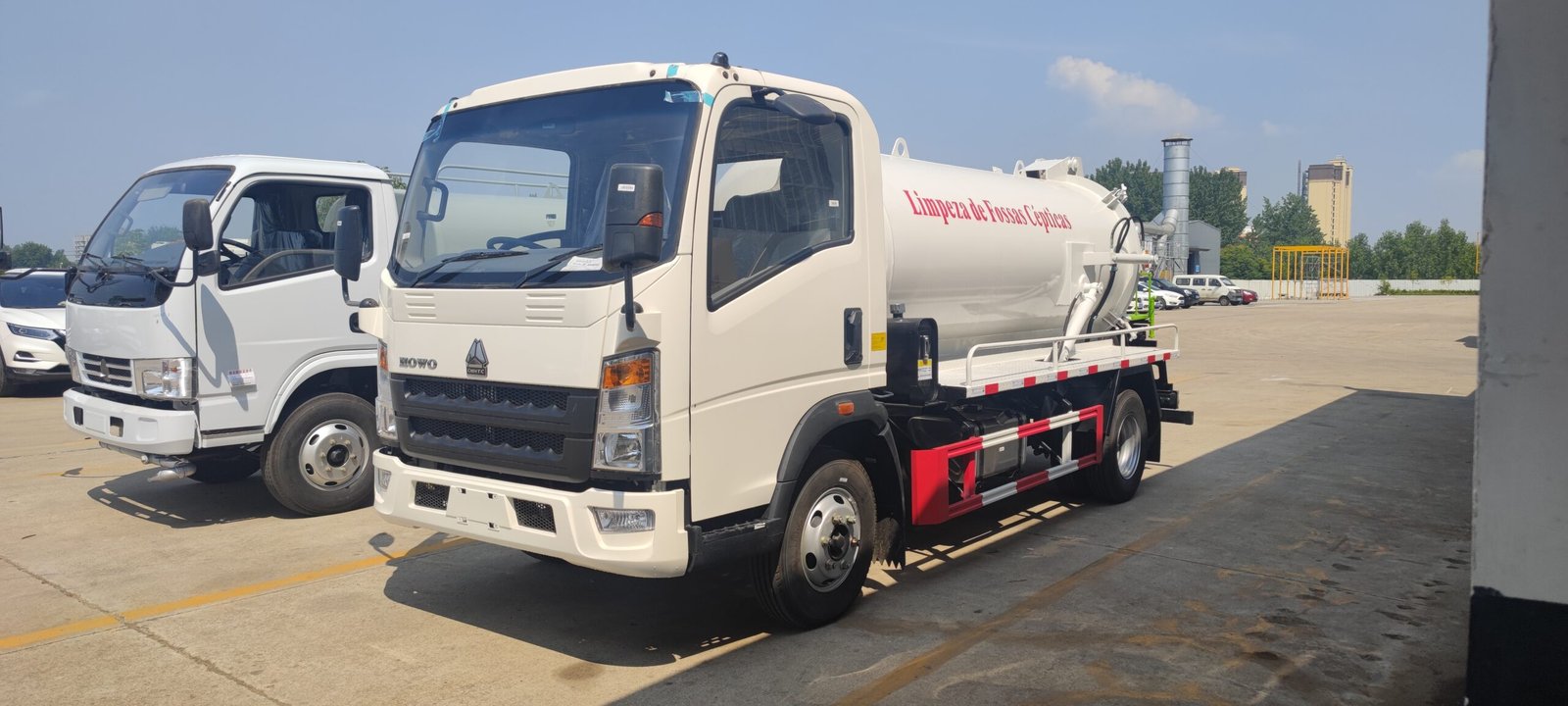

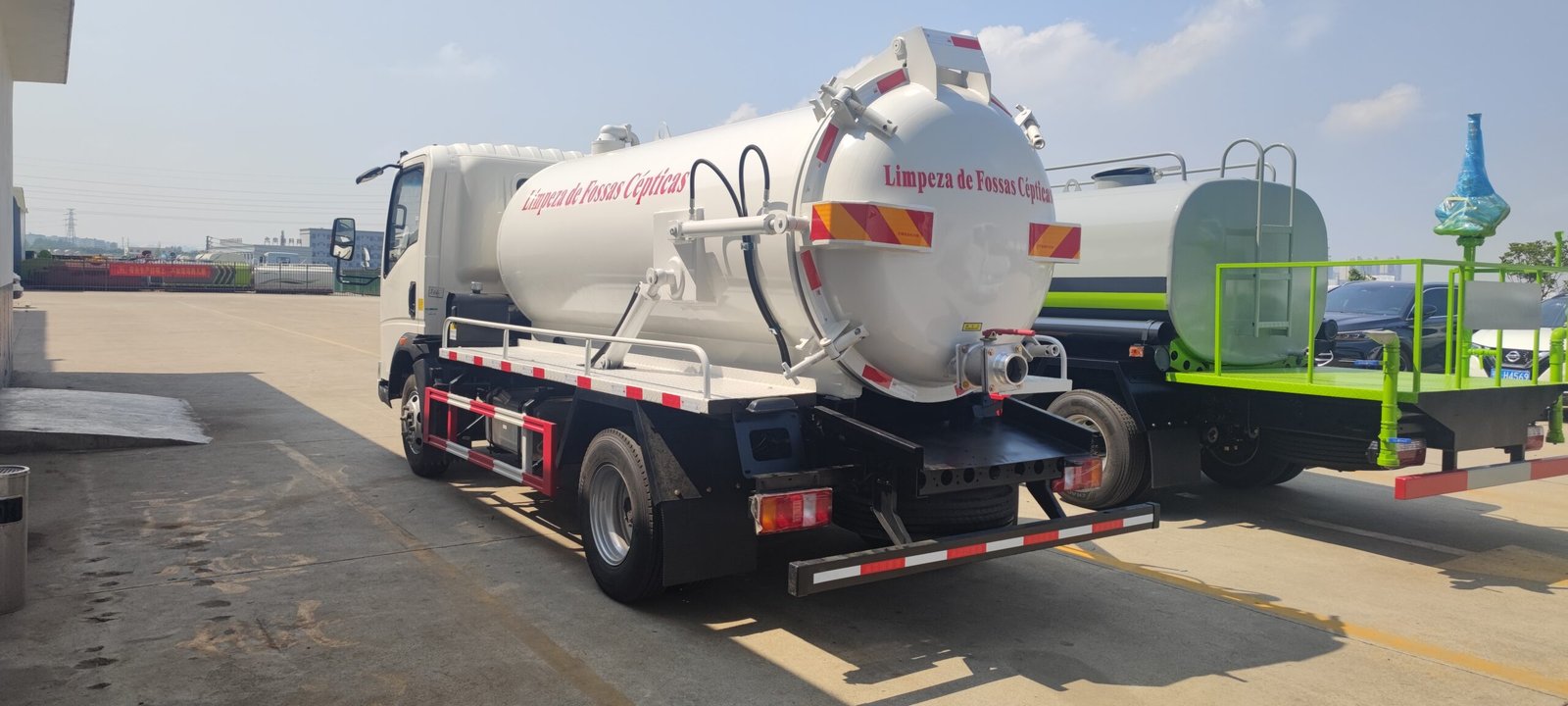

Howo 5m3 truck features:
1.Material: Q235 carbon steel material, 6mm thickness
2.Vacuum Pump: Italy Jurop PN155 pump, more than 92% vacuum
3.Open way: rear door hydraulic open
4. Safety device: visible sewage level pipe, second anti-flow device, sewage level alarming device, positive and negative pressure balance valve, rear arrow instruction lights
5. Suction pipe: thickened 7m pipe
6. Camera in the cabin, can real-time monitor the different side of the truck
| Chassis Specification | ||||
| Chassis Parameters | Chassis Brand | Sinotruk Howo | ||
| Cabin | Left or Right Hand Driving, with A/C | |||
| Engine | Model | ISF3.8s3141 | ||
| Power | 140HP | |||
| Emission standard | EURO 3 | |||
| Displacement | 3800L | |||
| Fuel type | Diesel | |||
| Gearbox | WLY6TS55, manual type, 6 Forwards and 1 Reverses | |||
| Overall dimension | 7350*2360*2850mm | |||
| Front and Rear Axle load | 2.5T/8T | |||
| Wheel base | 3800mm | |||
| Brake System | Air Brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 7.50R16, 6 Pieces with 1 Spare Tire | |||
| Maximum speed | 90(km/h) | |||
| Superstructure | ||||
| Tank body | Capacity | 5-10m3 sewage suction truck, customizable | ||
| Tank material | Q235 carbon steel | |||
| Vacuum pump | Italy brand pump | Brand: Jurop | ||
| Model: PN155 | ||||
| Max. pressure: 25bar | ||||
| Max. speed: 1150 rpm | ||||
| Features | 1. Suction time: less than 10 mins 2.Discharge time: less than 8 mins 3. Horizontal suction distance: more than 100m 4.Vertical suction depth: more than 7m |
|||
| Safety device | 1.Second anti-overflow device 2.Visible sewage level tube 3.Sewage level sensor and alarming system |
|||
| Main parts | 1.Hydraulic cylinder 2.Pressure meter 3.Liquid level gauge 4.Anti overflow valve 5.Hydraulic control rear cover 6.Tipping sewage tank body 7.Anti-rust metallic paint, or as your requirement |
|||
